Fuel Tank Pressure Sensor: Locations




Wheels/Vehicle Underbody Component Views

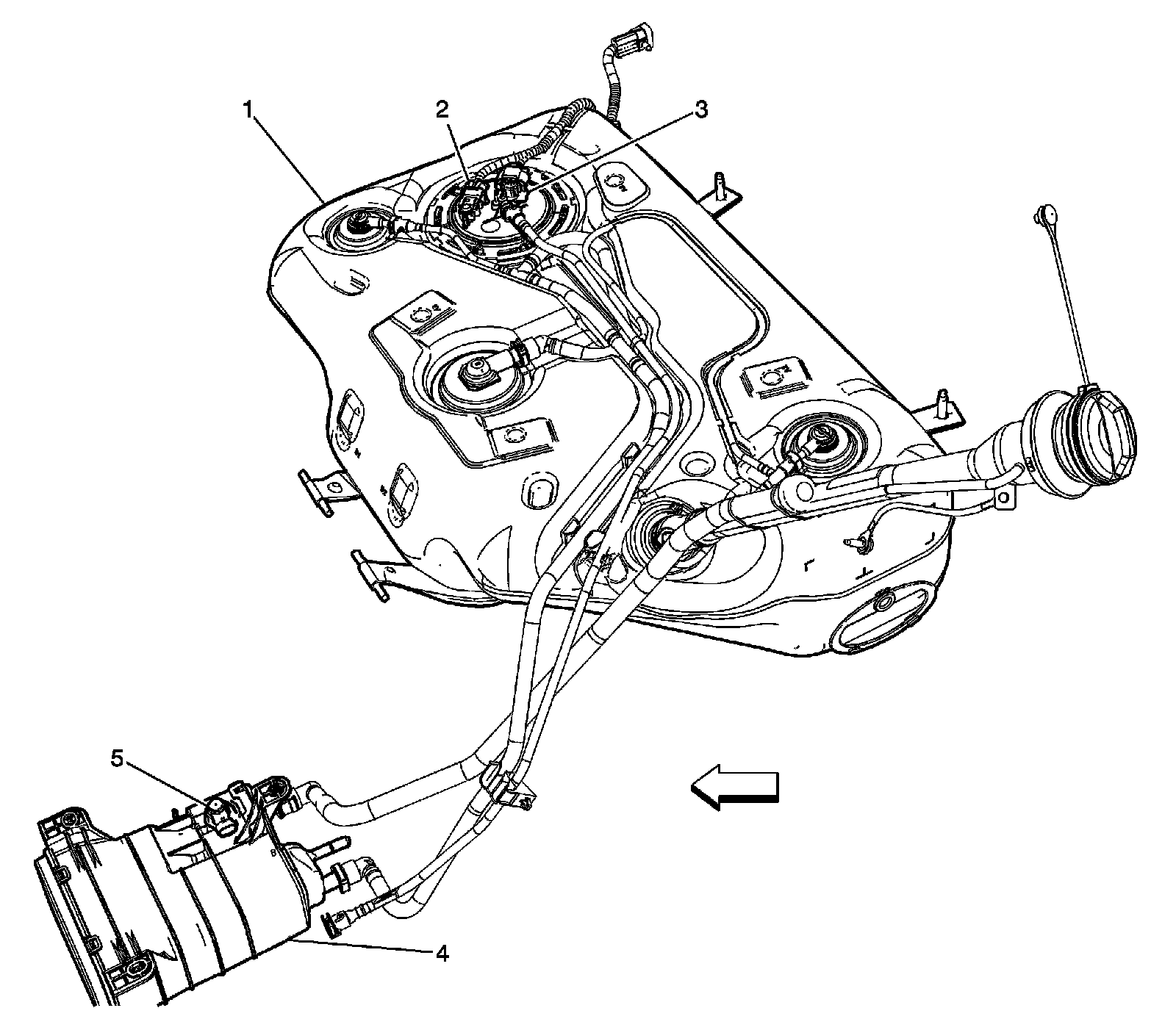

Fuel Tank Top View




1 - Fuel Tank
2 - Fuel Tank Pressure Sensor
3 - Fuel Sender Connector
4 - Evaporative Emission (EVAP) Canister
5 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
