Ambient Temperature Sensor / Switch HVAC




Component Connector End Views

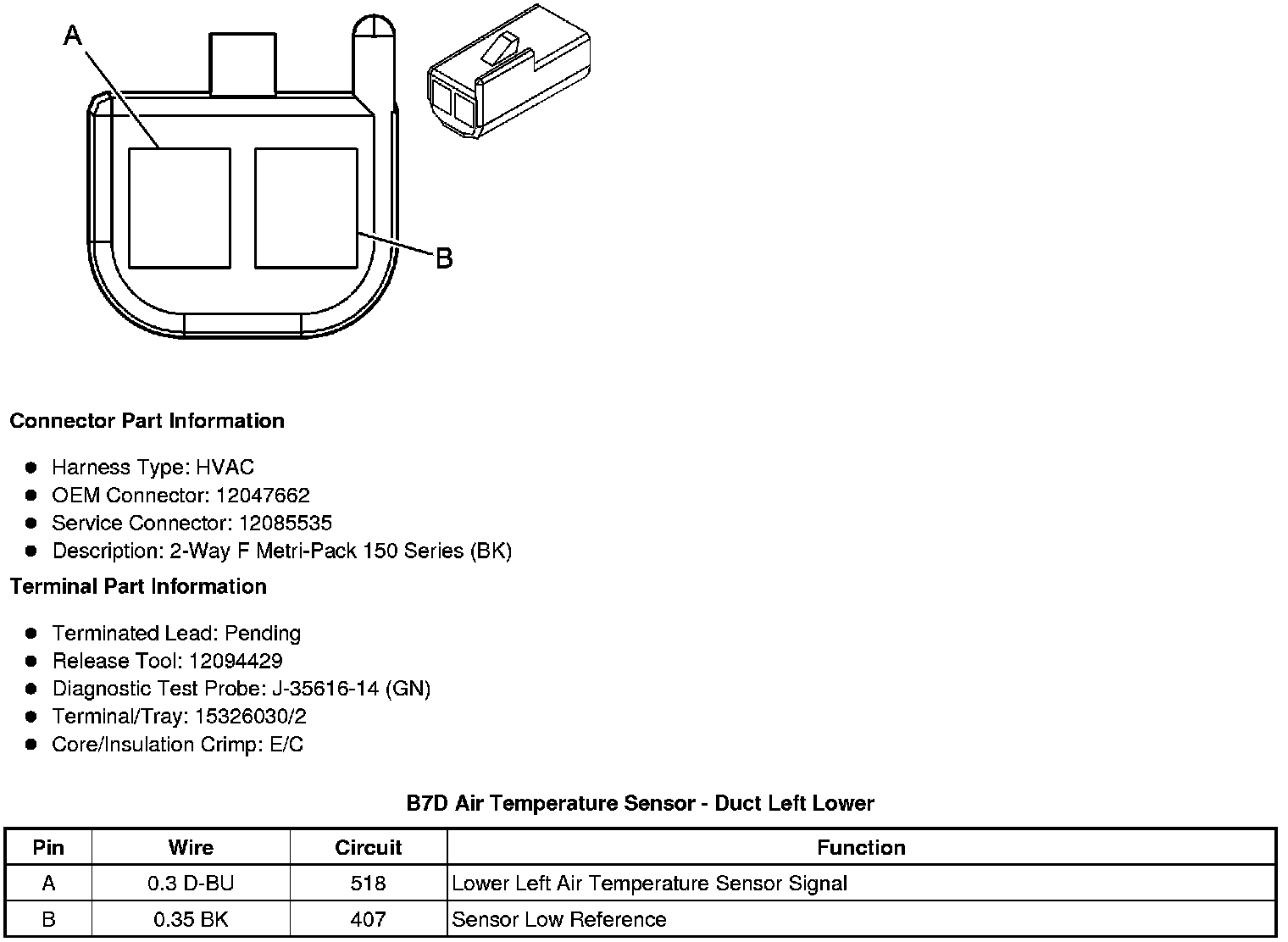

B7D Air Temperature Sensor - Duct Left Lower

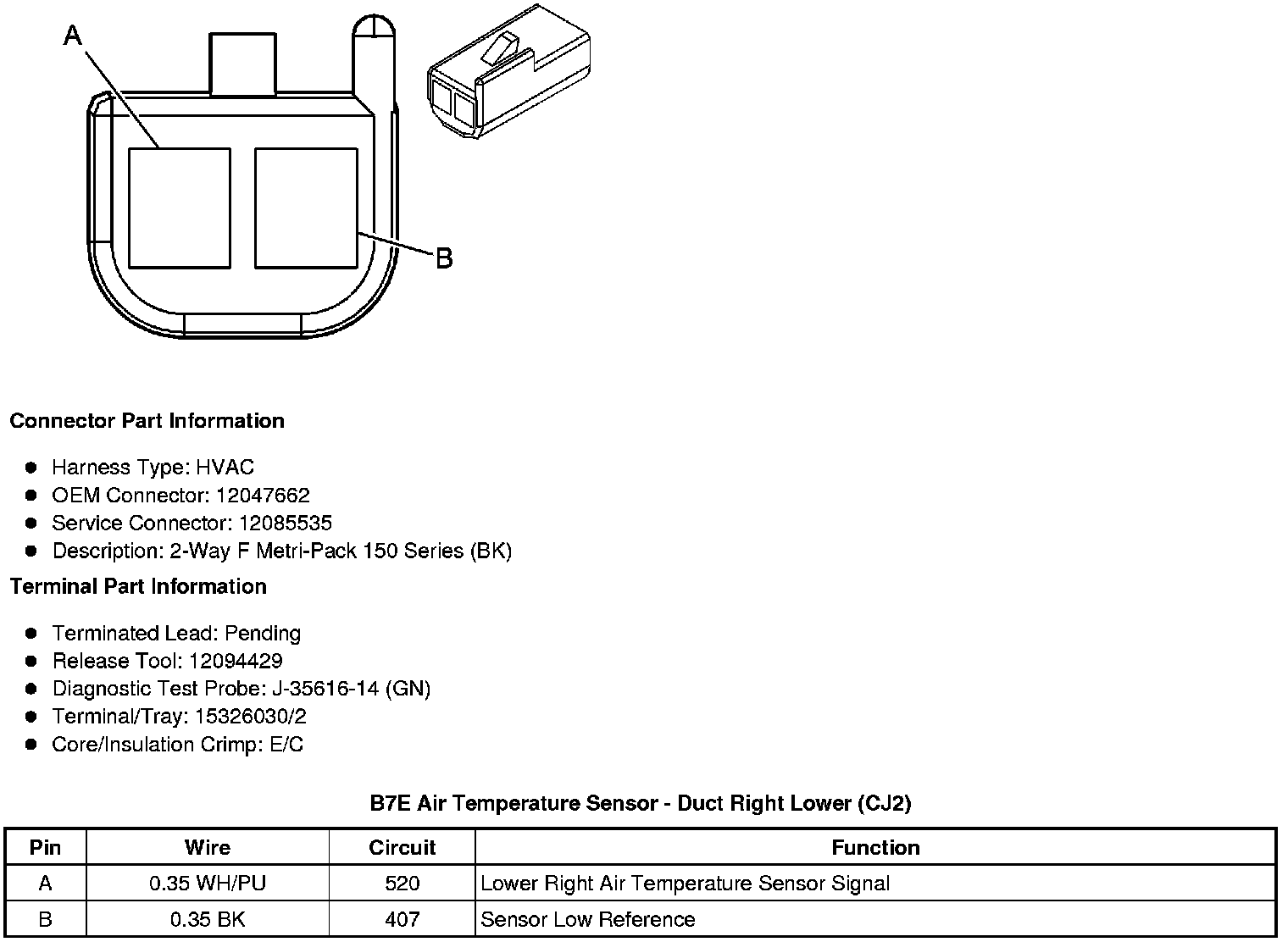

B7E Air Temperature Sensor - Duct Right Lower (CJ2)

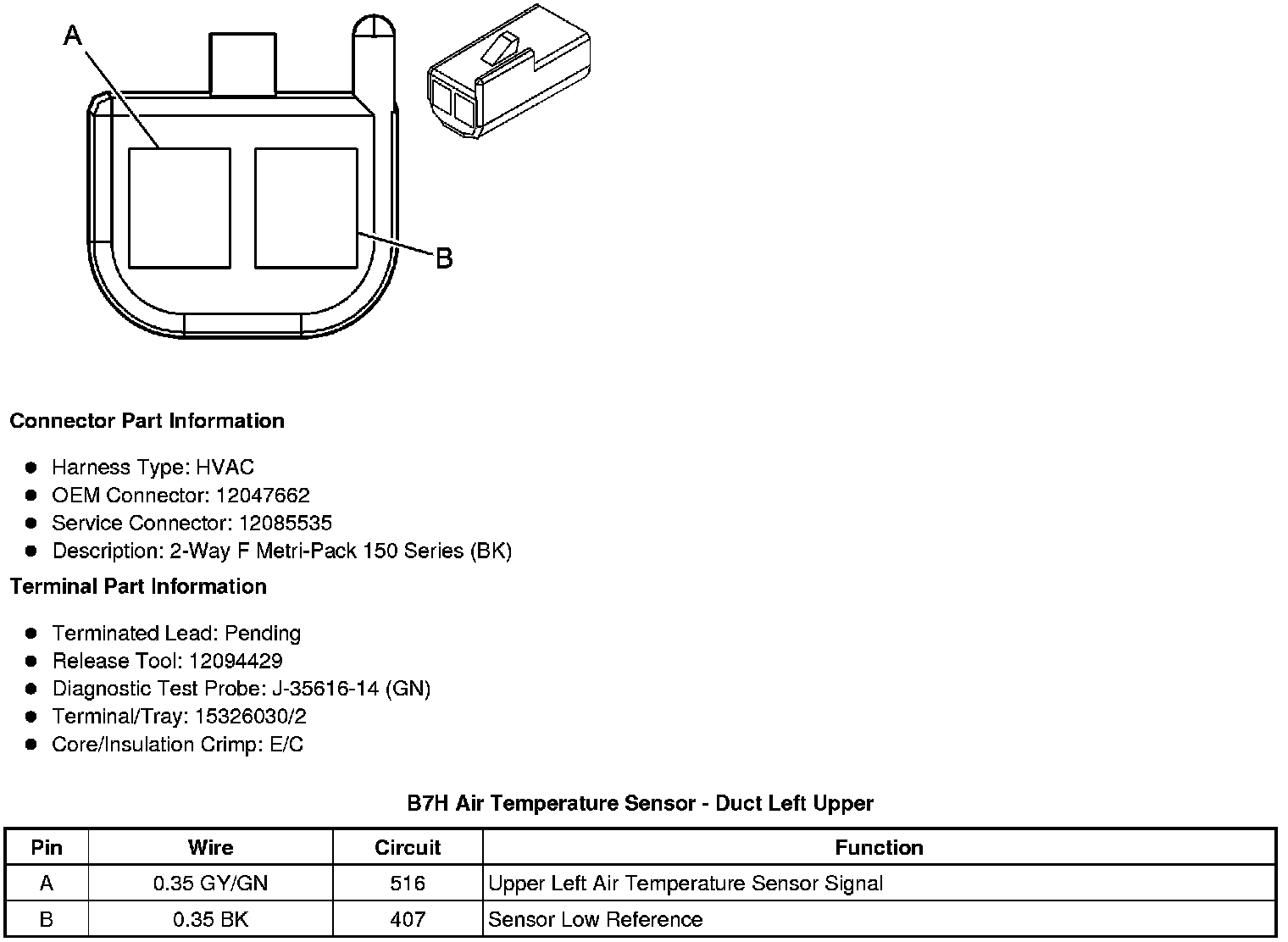

B7H Air Temperature Sensor - Duct Left Upper

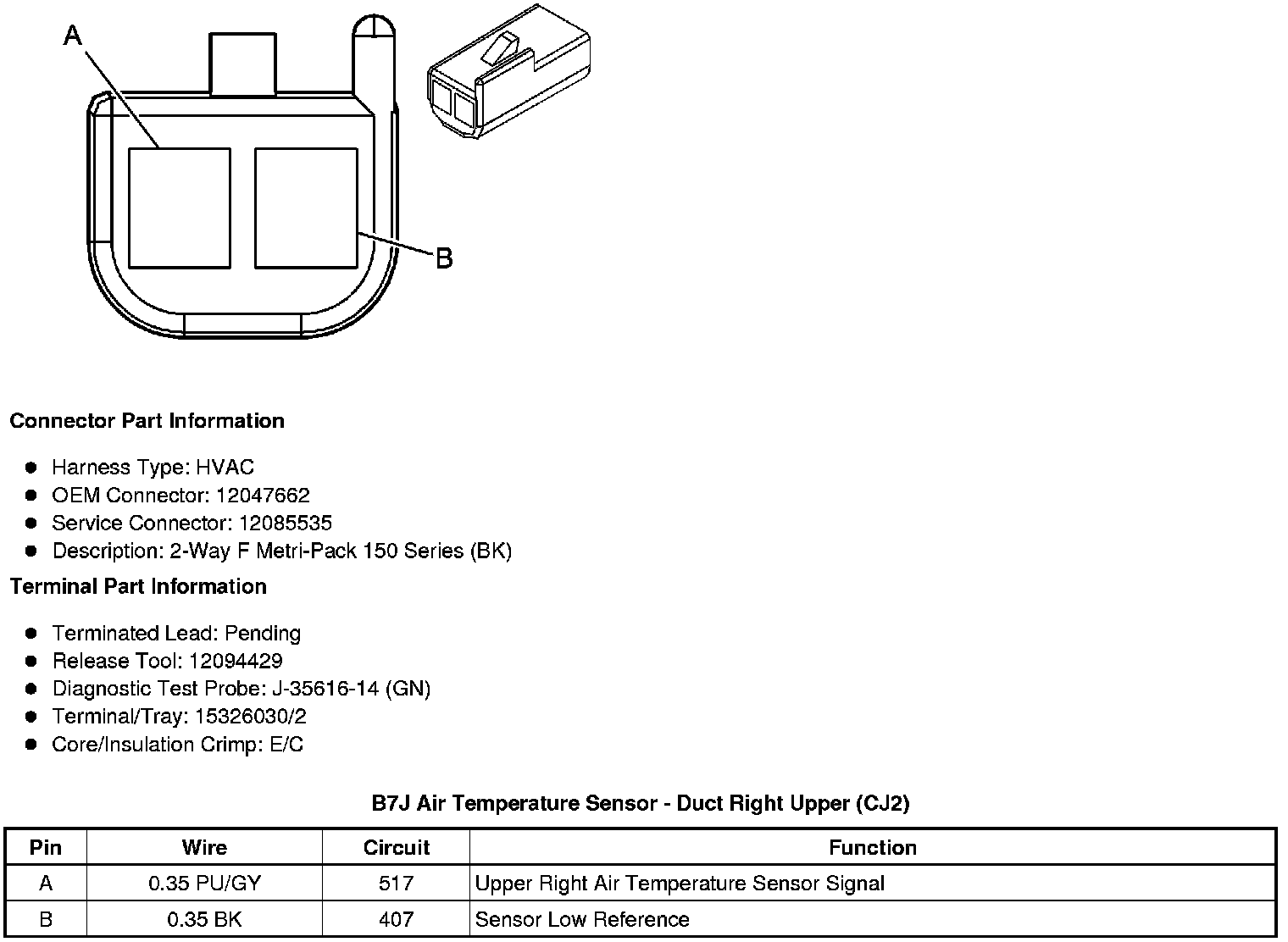

B7J Air Temperature Sensor - Duct Right Upper (CJ2)
