Knock Sensor: Diagrams




Component Connector End Views

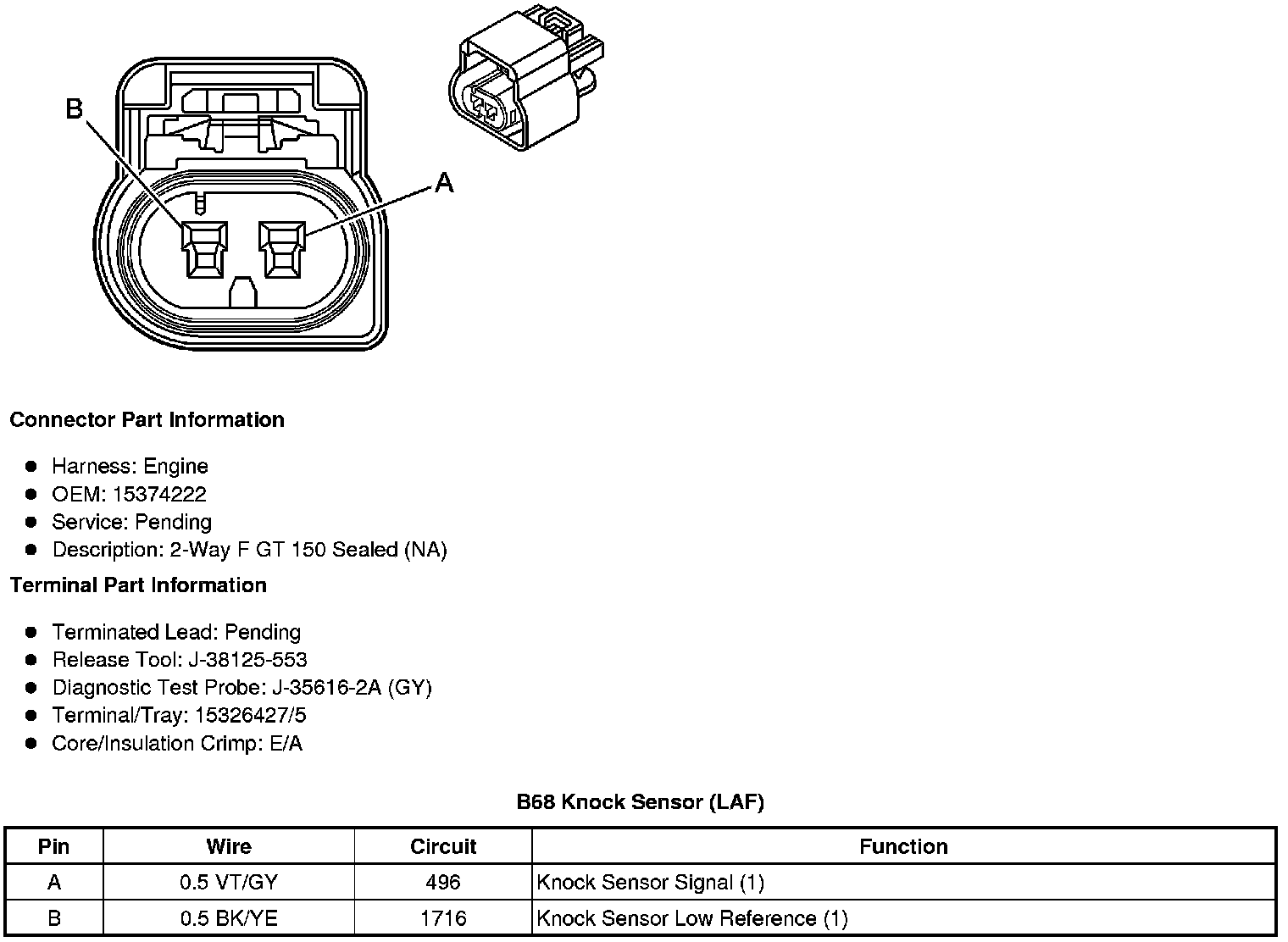

B68 Knock Sensor (LAF)

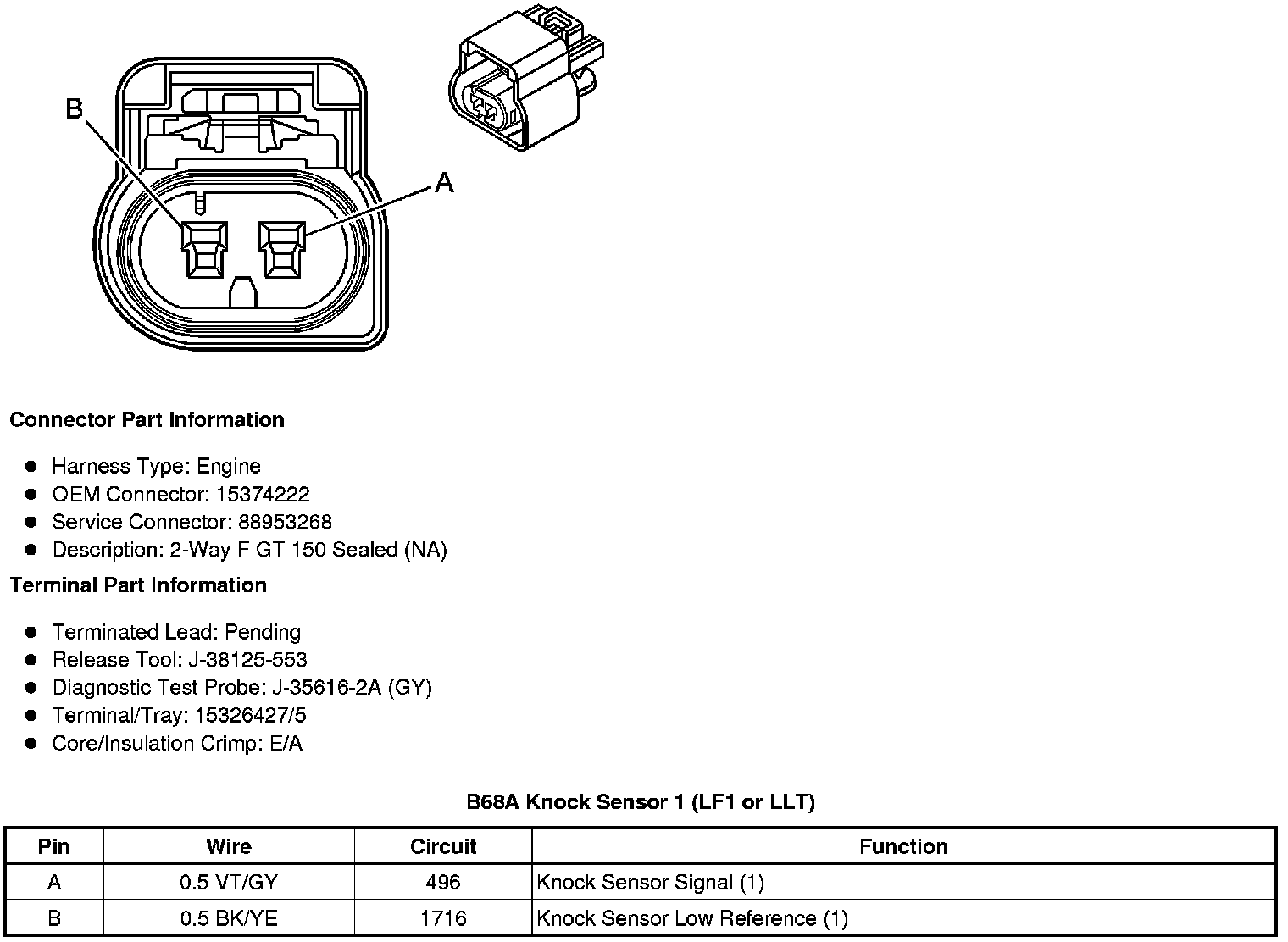

B68A Knock Sensor 1 (LF1 or LLT)





B68B Knock Sensor 2 (LF1 or LLT)
