Memory Positioning Switch: Diagrams

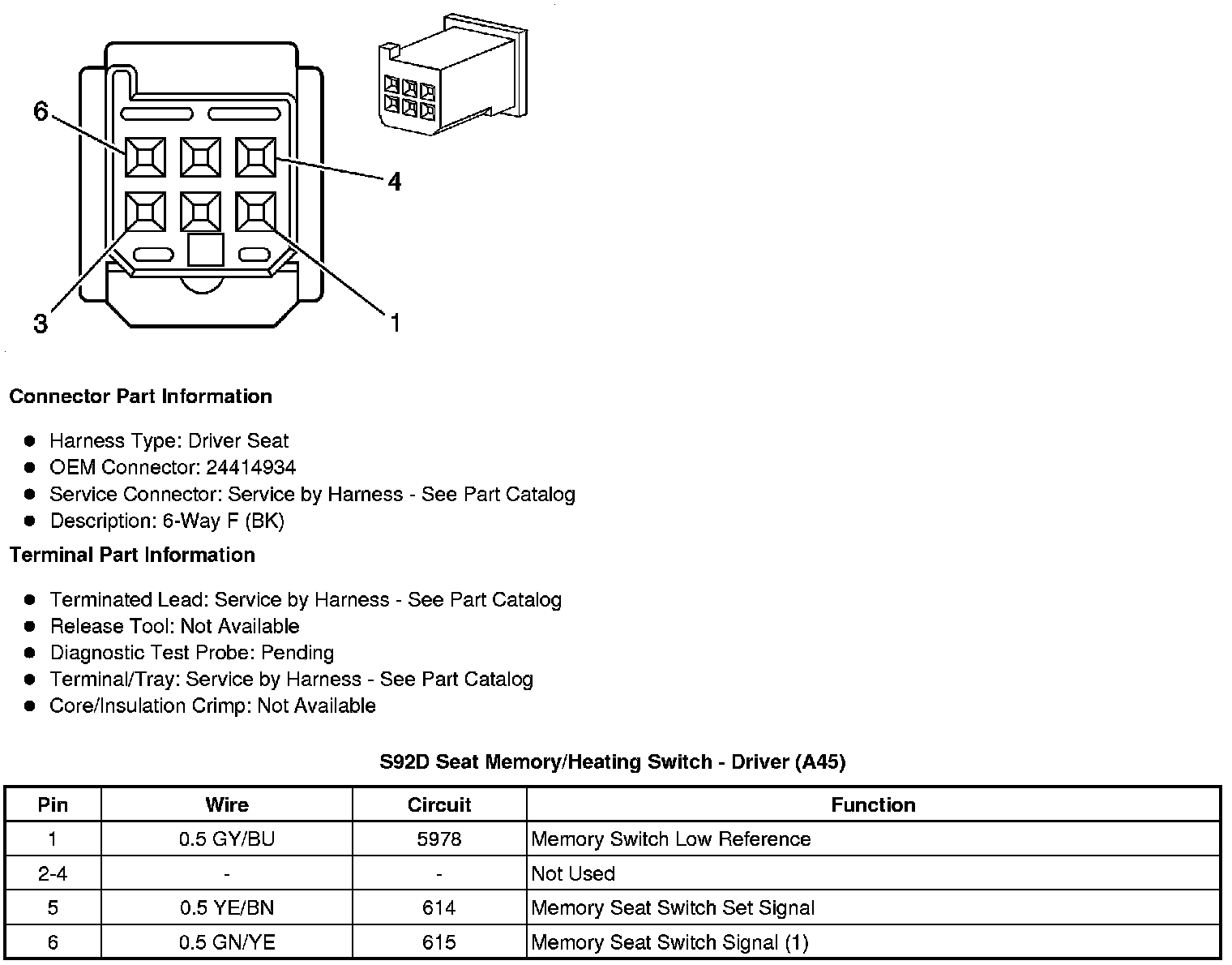

Component Connector End Views

S92D Seat Memory/Heating Switch - Driver (A45)
