Control Assembly: Diagrams




Component Connector End Views

K33 HVAC Control Module X1









K33 HVAC Control Module X2

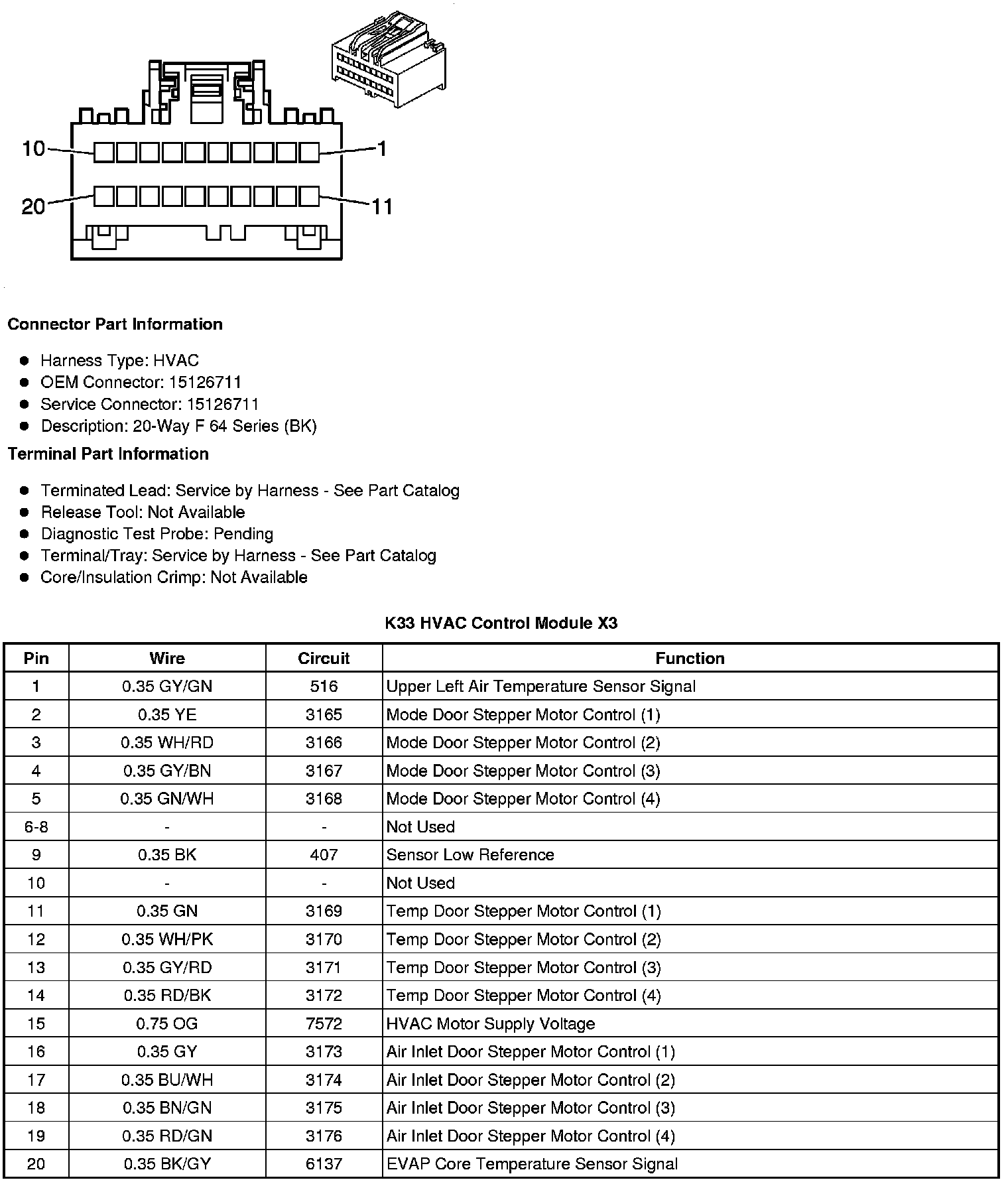

K33 HVAC Control Module X3

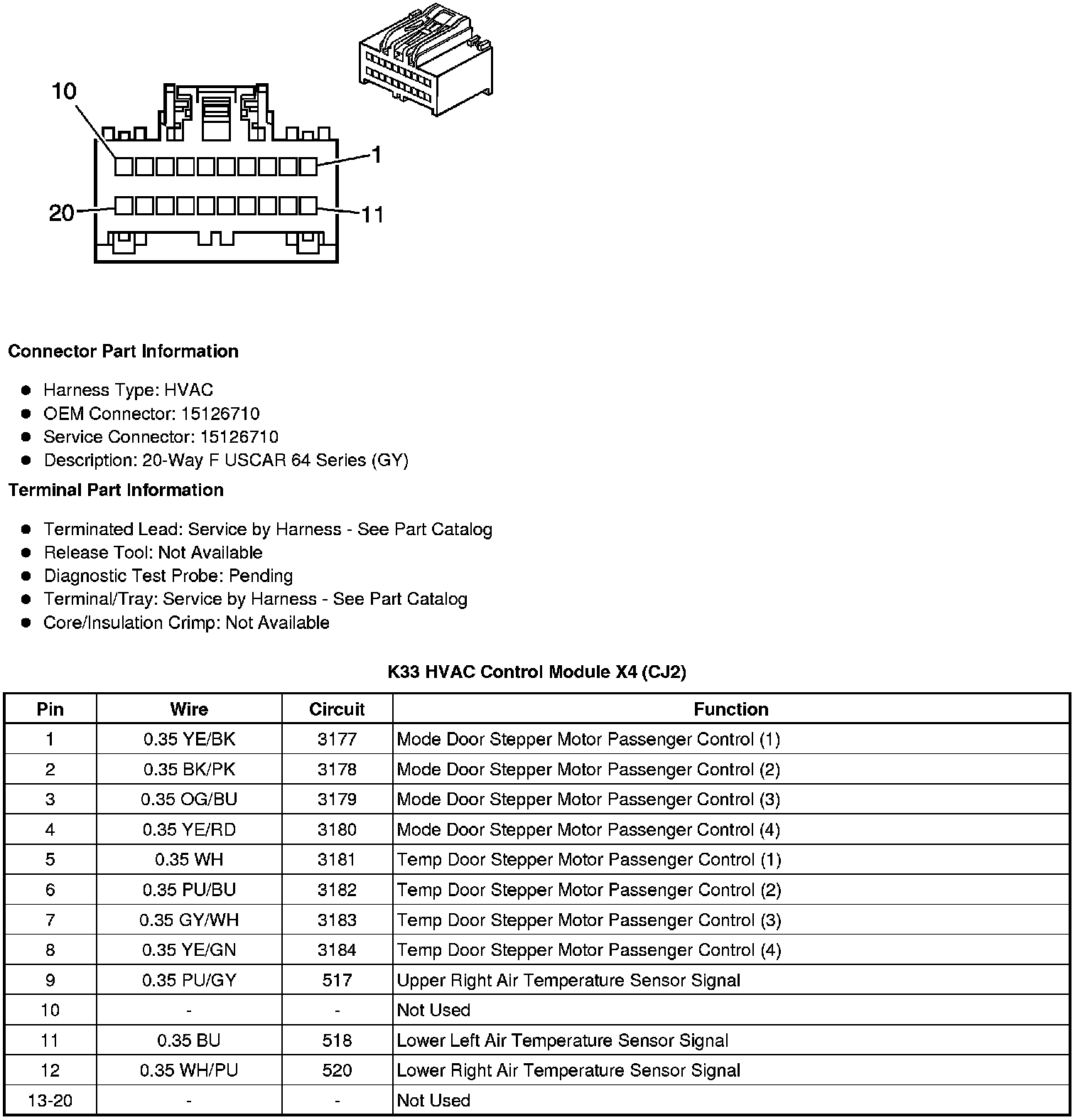

K33 HVAC Control Module X4 (CJ2)
