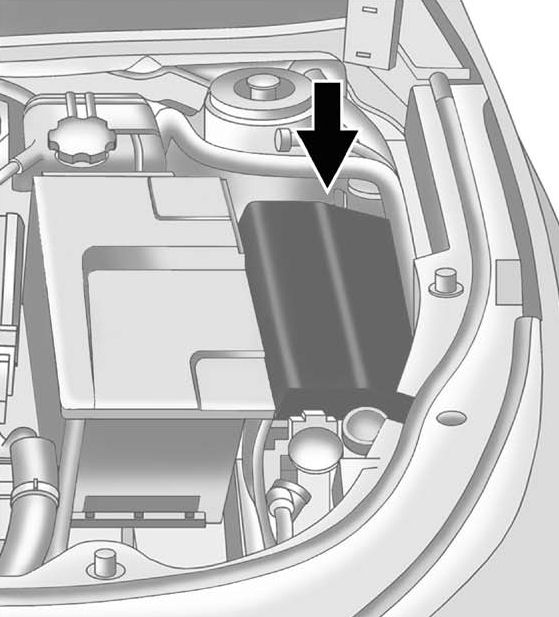

Engine Compartment Fuse Block

Engine Compartment Fuse Block






To remove the fuse block cover, squeeze the three retaining clips on the cover and lift it straight up.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

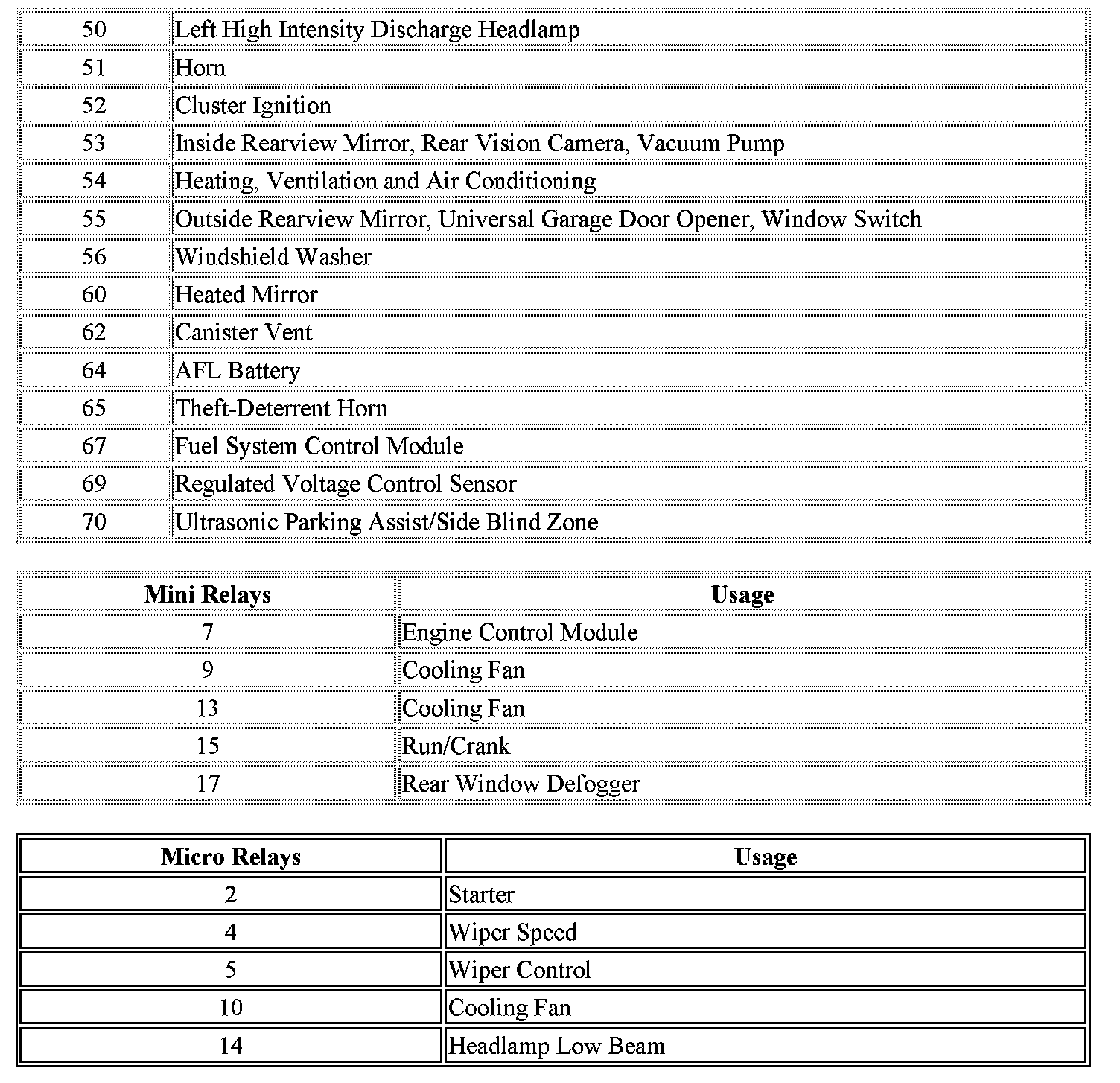

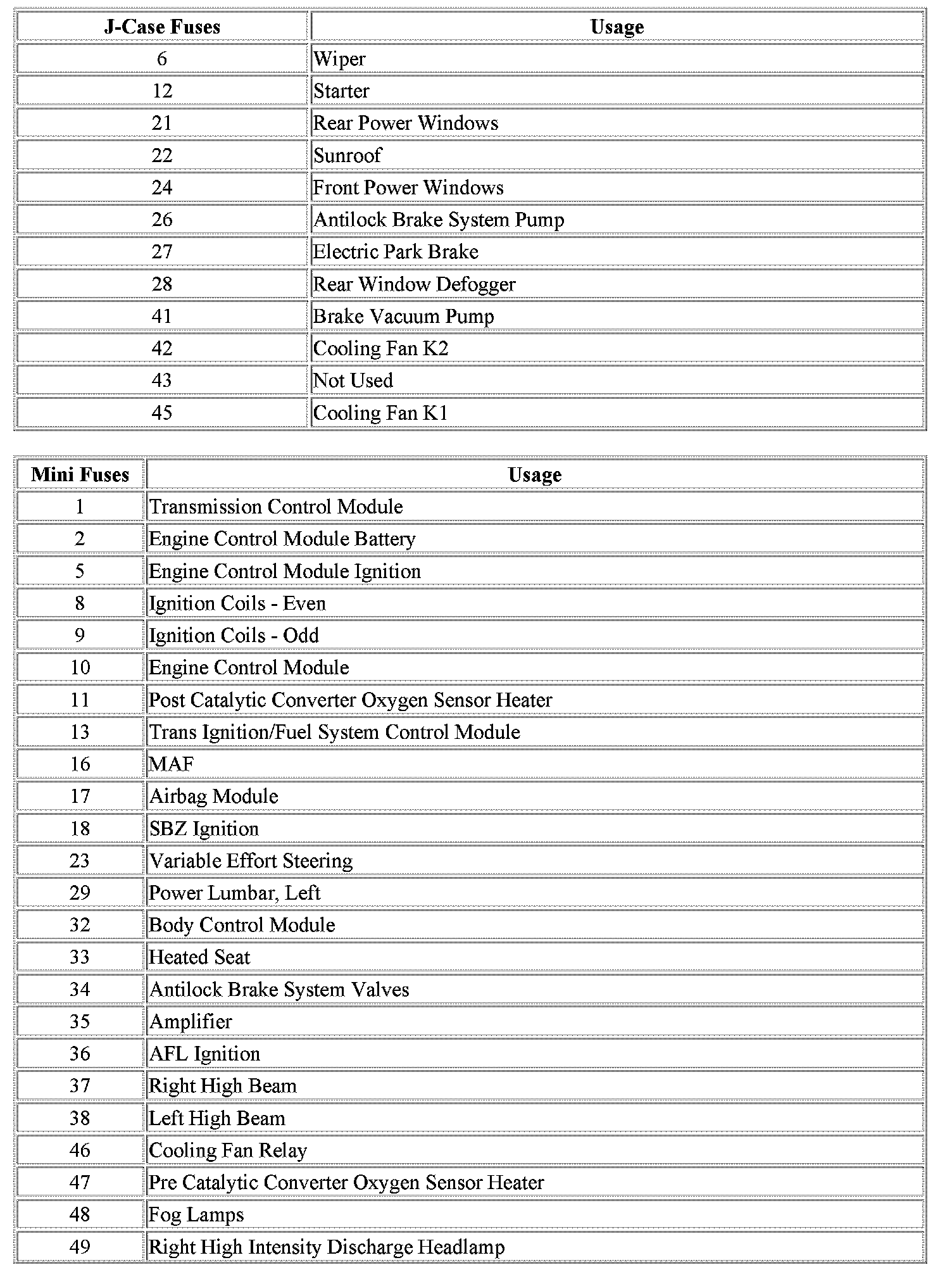

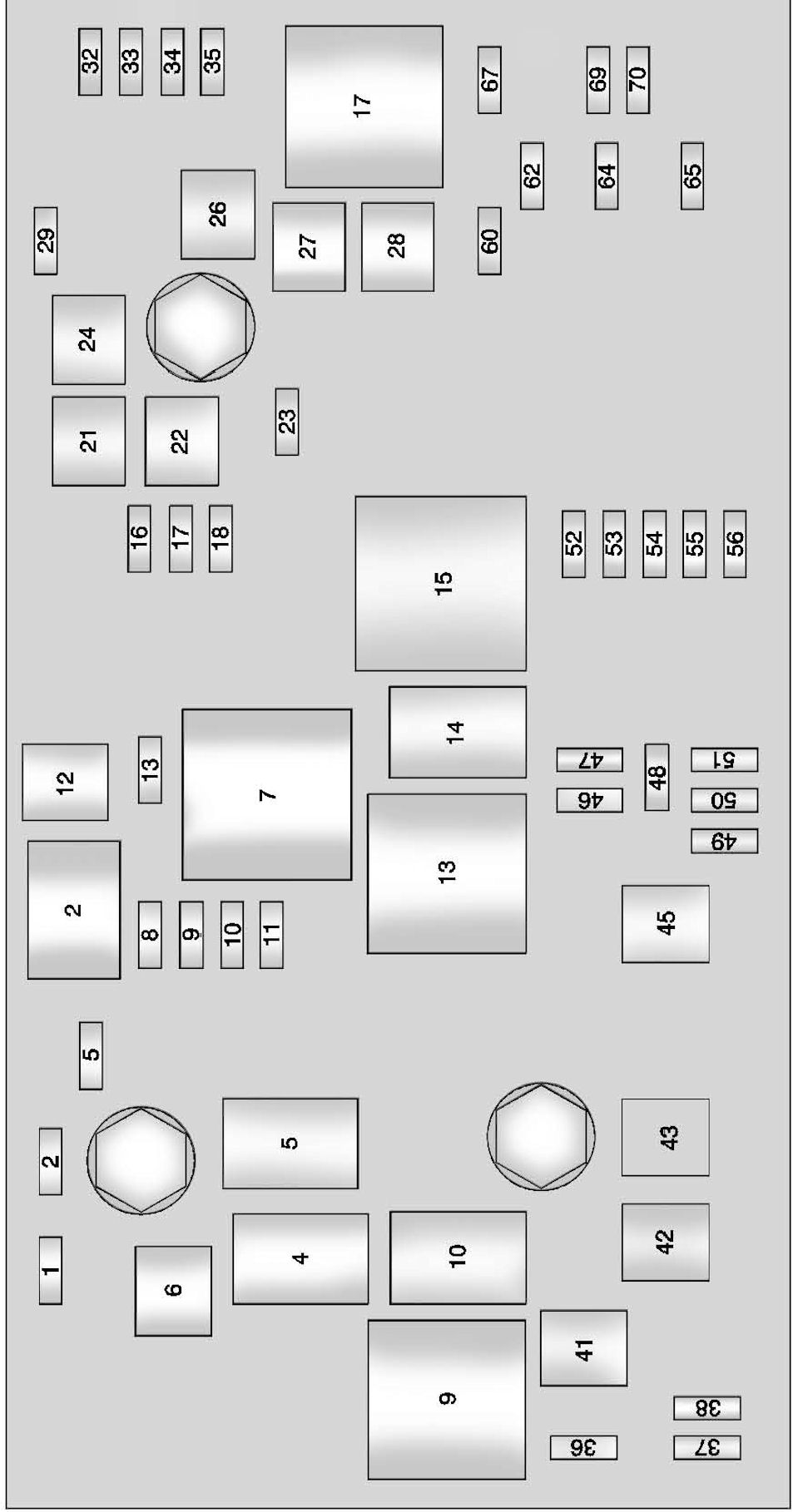

Engine Compartment Fuse Block







The vehicle may not be equipped with all of the fuses, relays, and fetures shown.
