Alarm Module, (Vehicle Antitheft)




Component Connector End Views

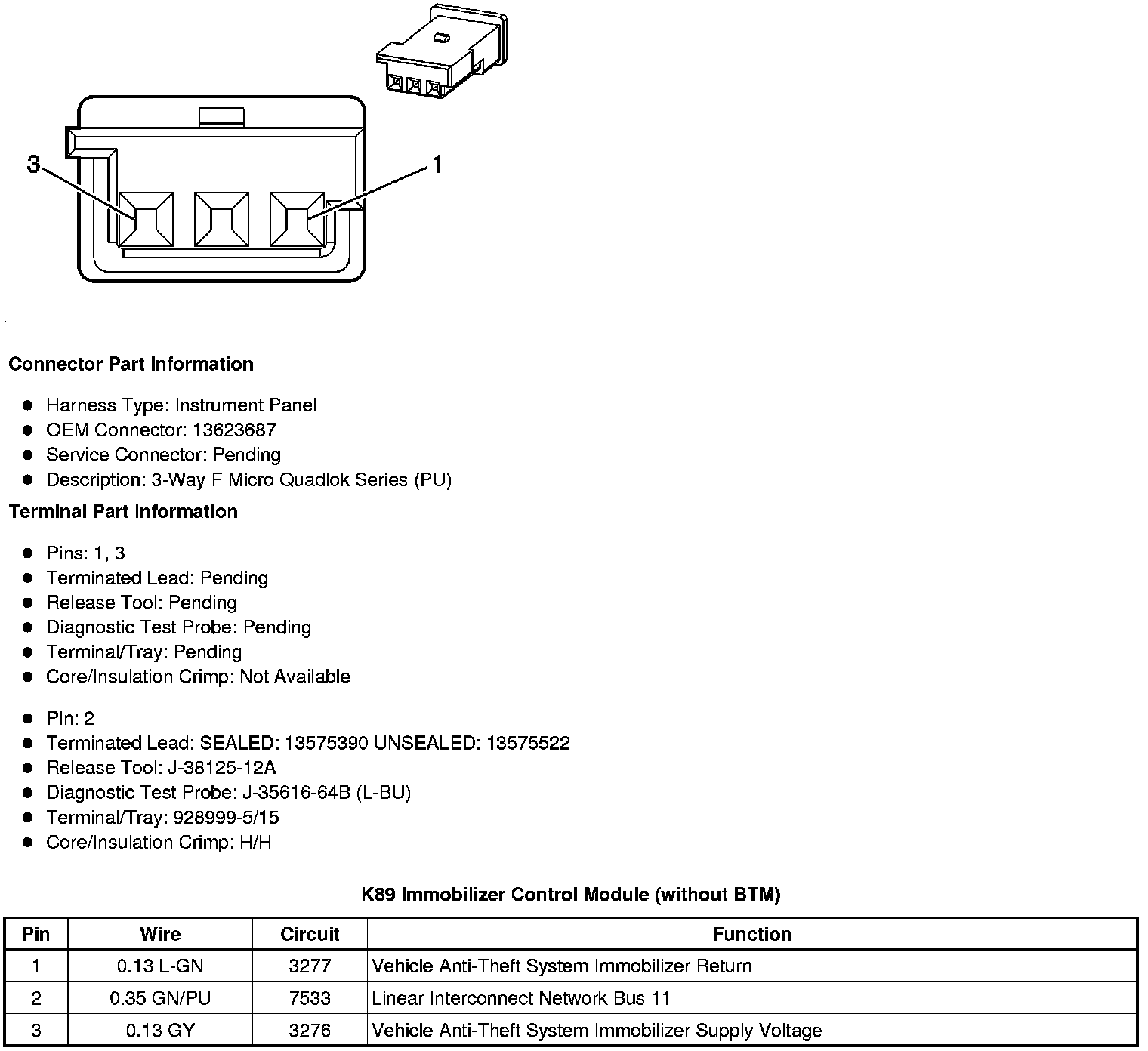

K89 Immobilizer Control Module (without BTM)





K89 Immobilizer Control Module (BTM)
