Fuel Pressure Sensor/Switch




Component Connector End Views

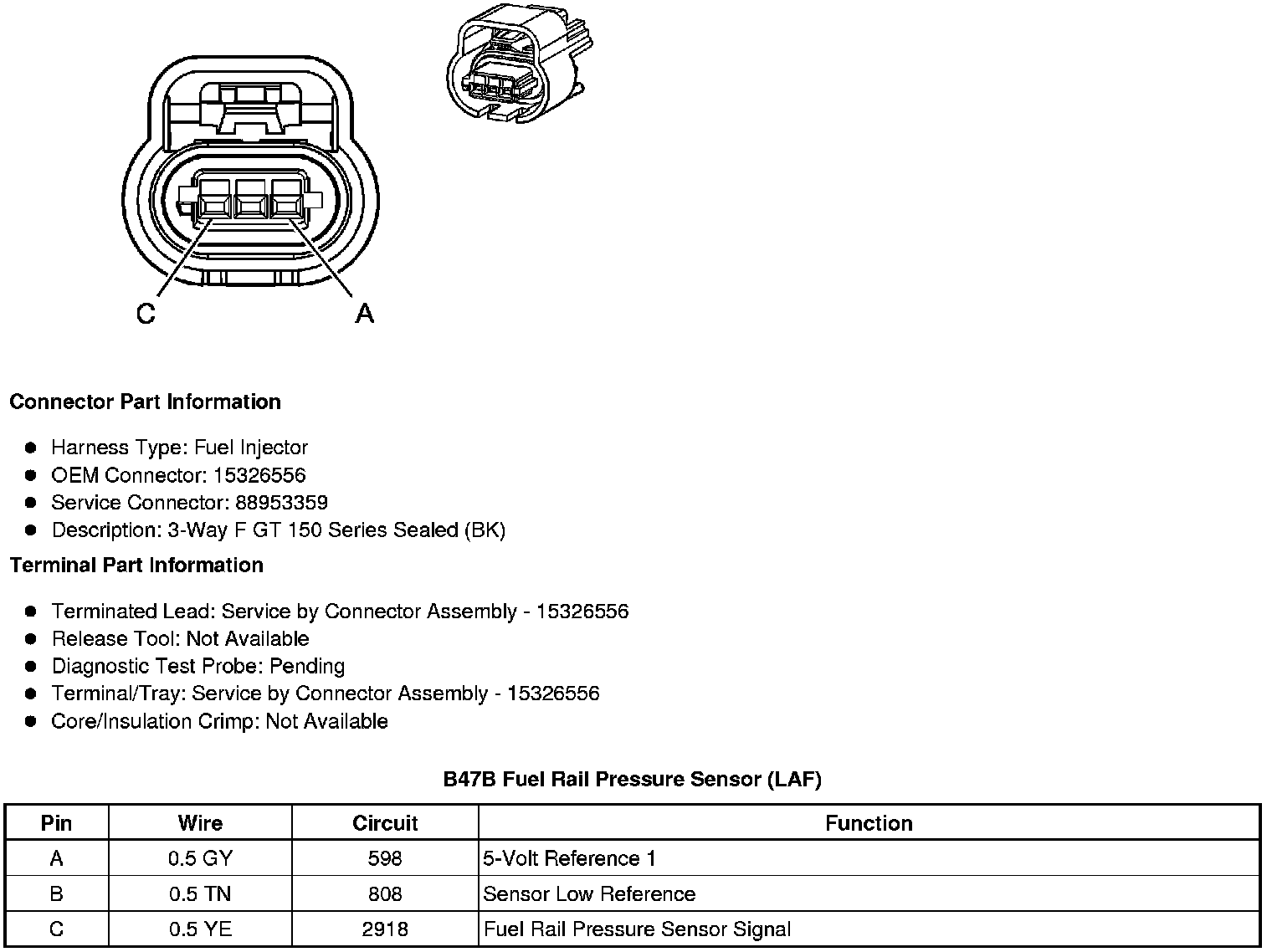

B47B Fuel Rail Pressure Sensor (LAF)

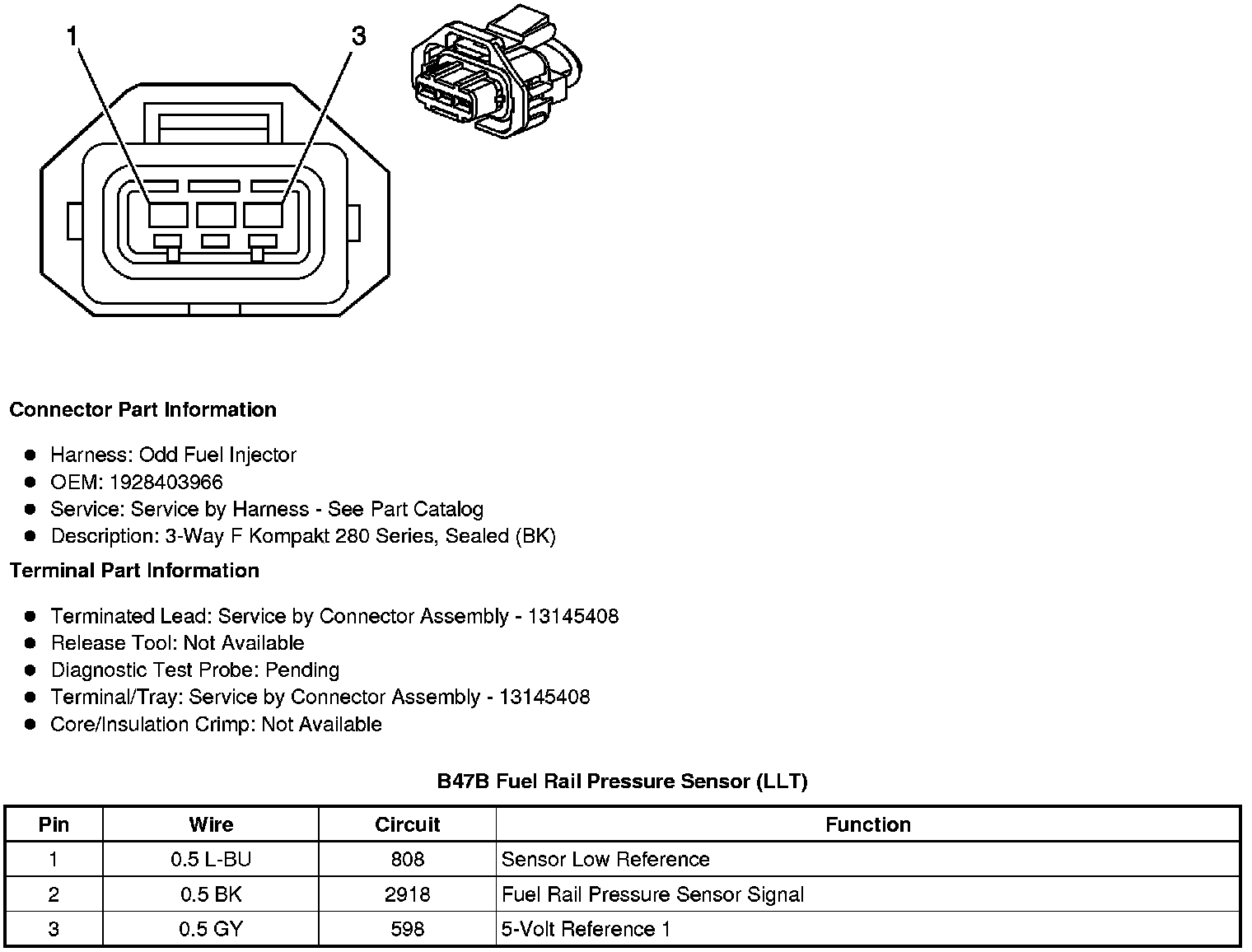

B47B Fuel Rail Pressure Sensor (LLT)
