Power Window Motor




Component Connector End Views

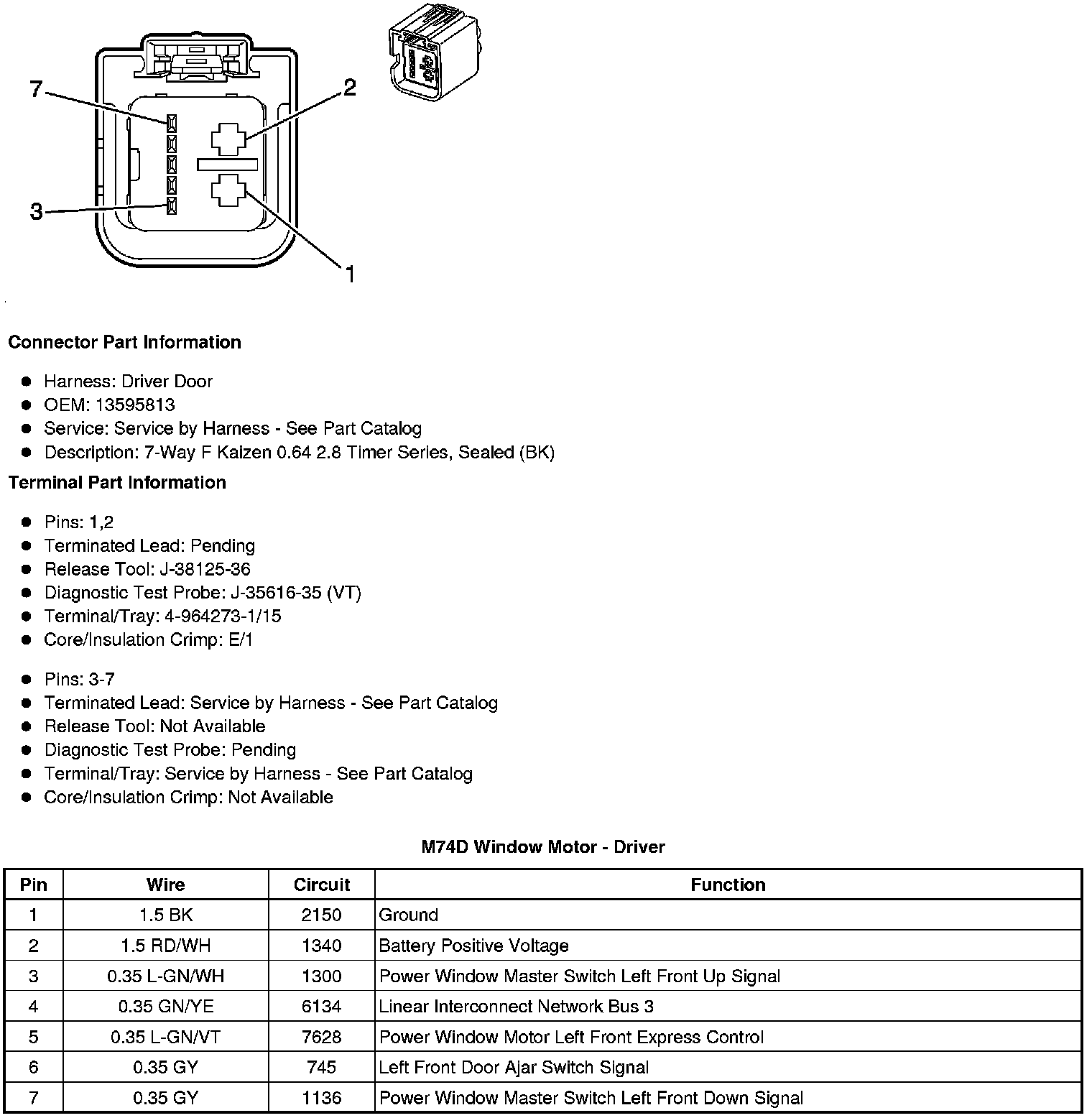

M74D Window Motor - Driver

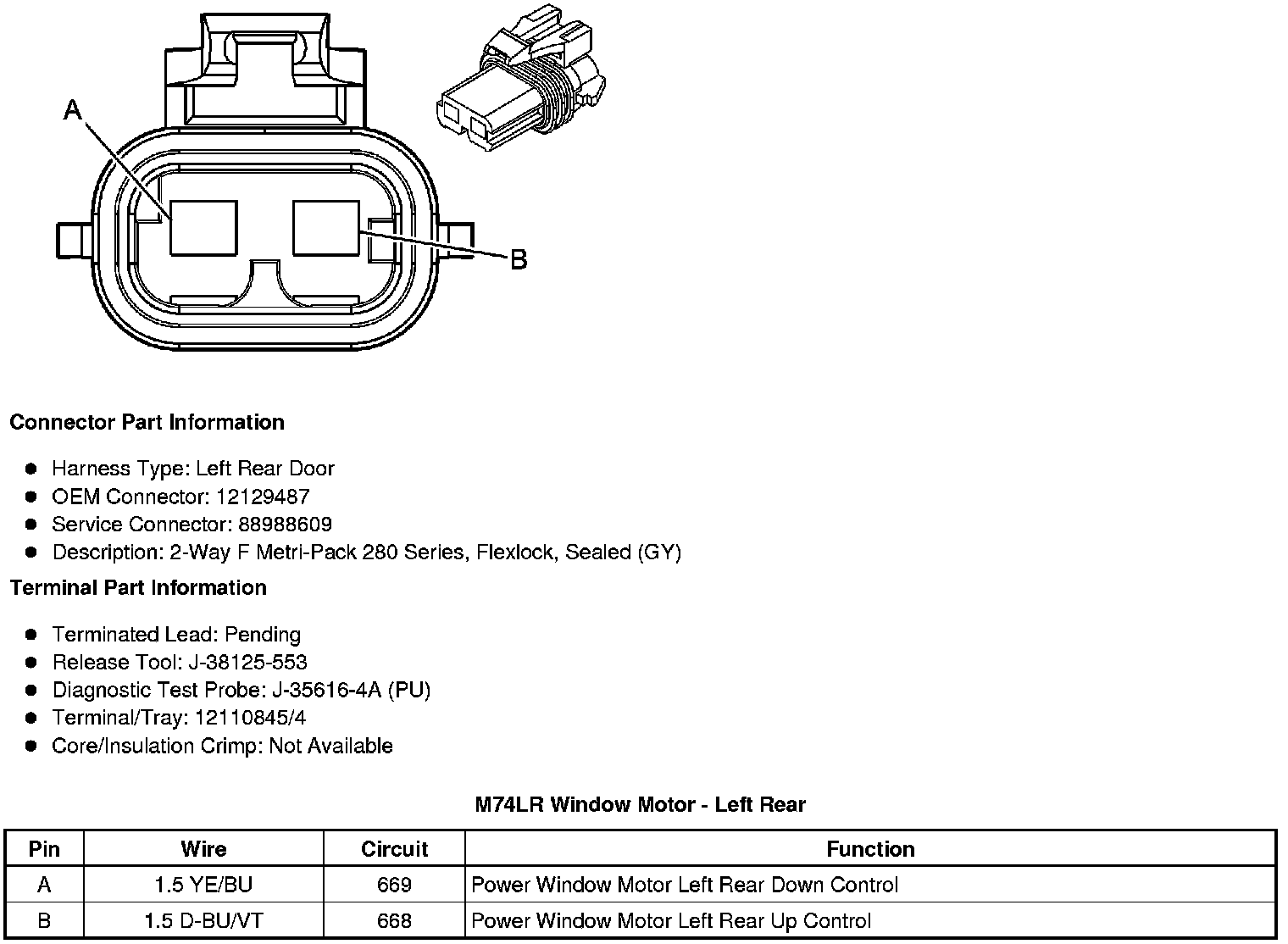

M74LR Window Motor - Left Rear





M74P Window Motor - Passenger





M74RR Window Motor - Right Rear
