Steering Wheel Heater Control Module

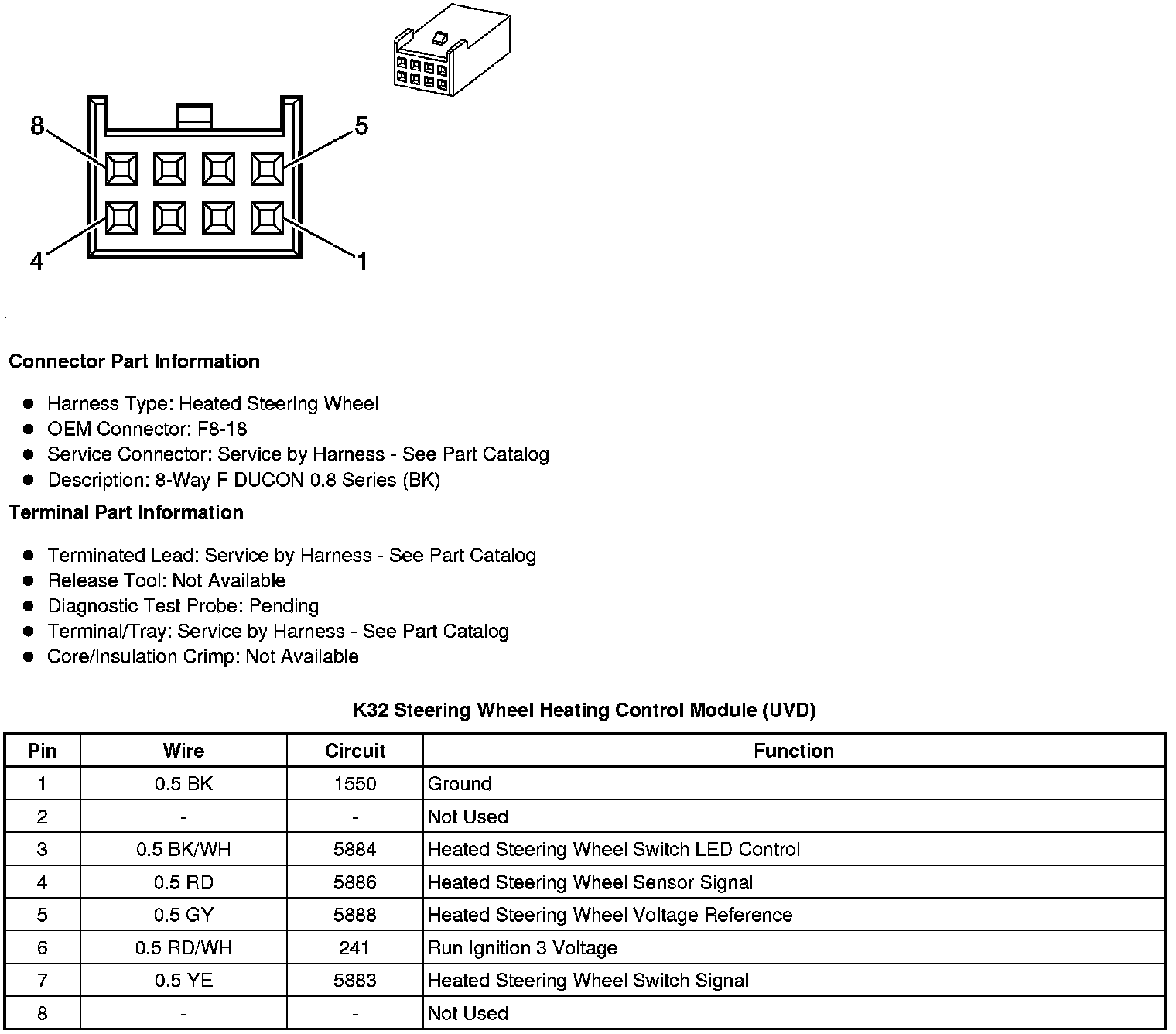

Component Connector End Views

K32 Steering Wheel Heating Control Module (UVD)
