Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Brake system does not use a brake switch, stoplight switch or brakelight switch. System uses a Brake Pedal Position Sensor to control these functions.

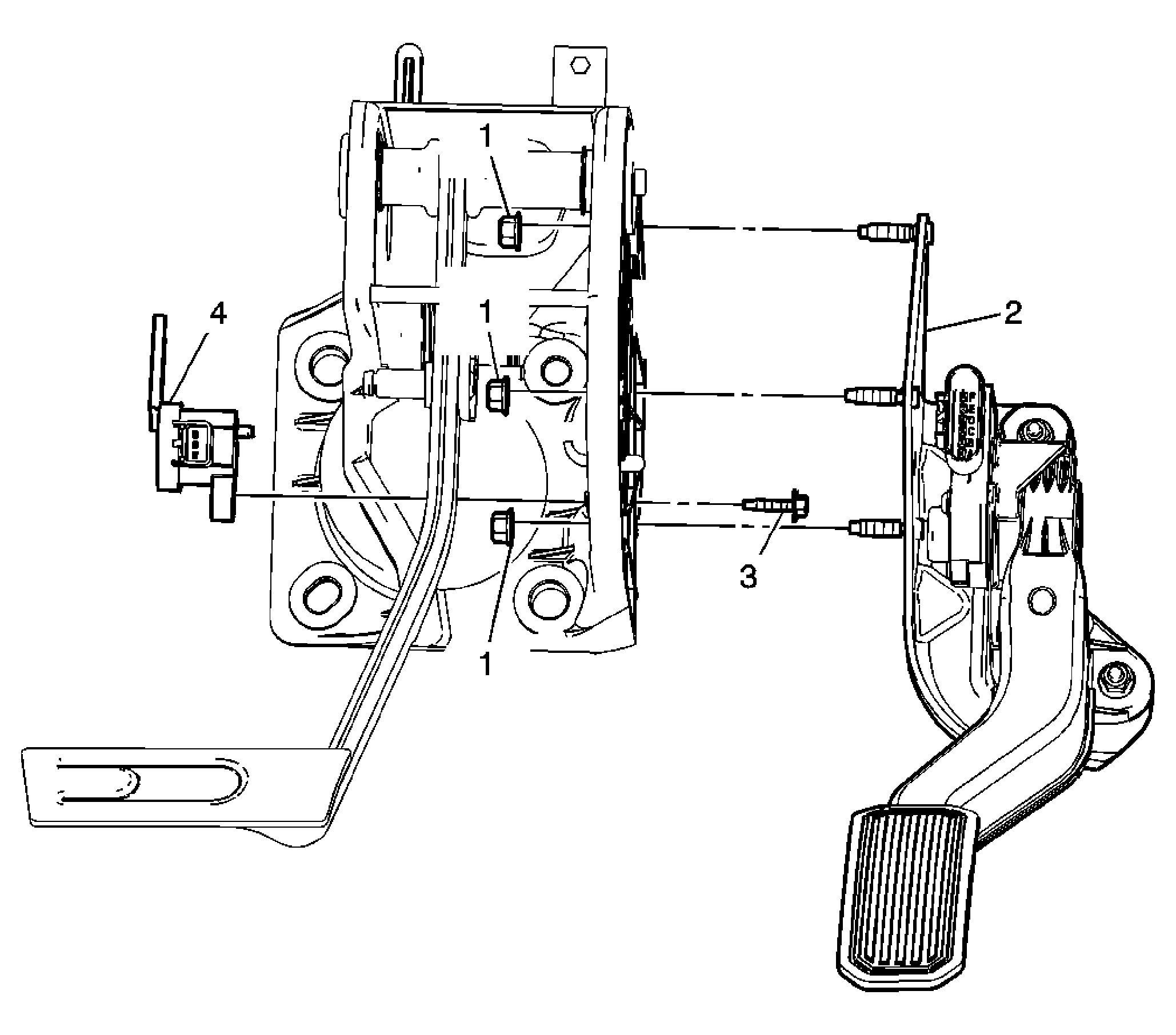

Fig 1: Identifying Brake Pedal Position Sensor & Brake Pedal Components

Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Position Sensor Replacement

Callout	Component Name
Preliminary Procedure Remove the accelerator pedal. Refer to Accelerator Pedal Position Sensor Replacement .
1	Accelerator Pedal Assembly Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Accelerator Pedal Assembly
3	Brake Pedal Position Sensor Bolt Tighten 2 N.m (18 lb in)
4	Brake Pedal Position Sensor Disconnect the electrical connector. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
