Cornering Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

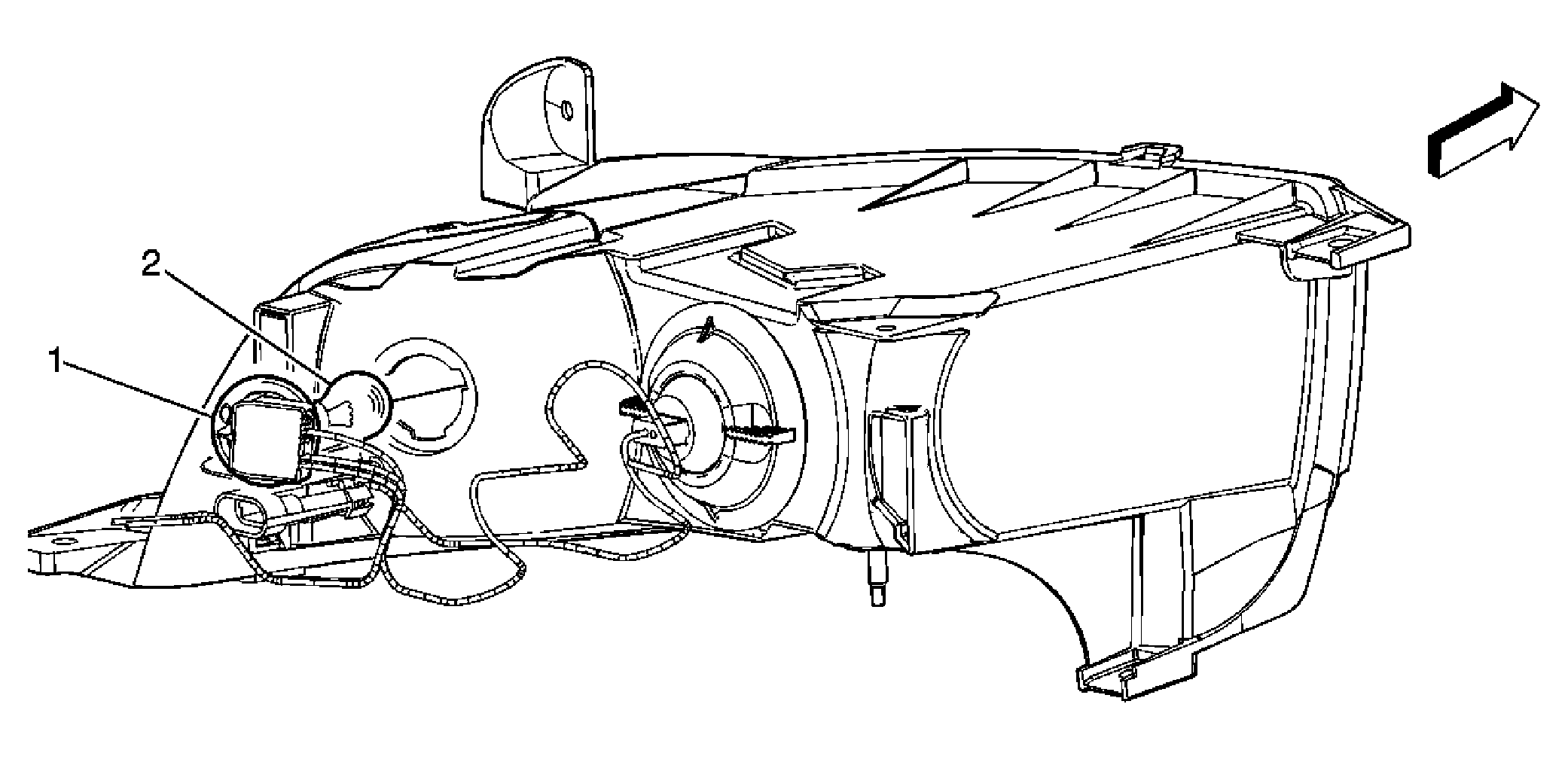

Fig 1: View Of Cornering Lamp Bulb & Socket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Cornering Lamp Bulb Socket TIP: Rotate the socket a quarter turn counterclockwise in order to remove.
2	Cornering Lamp Bulb
