Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

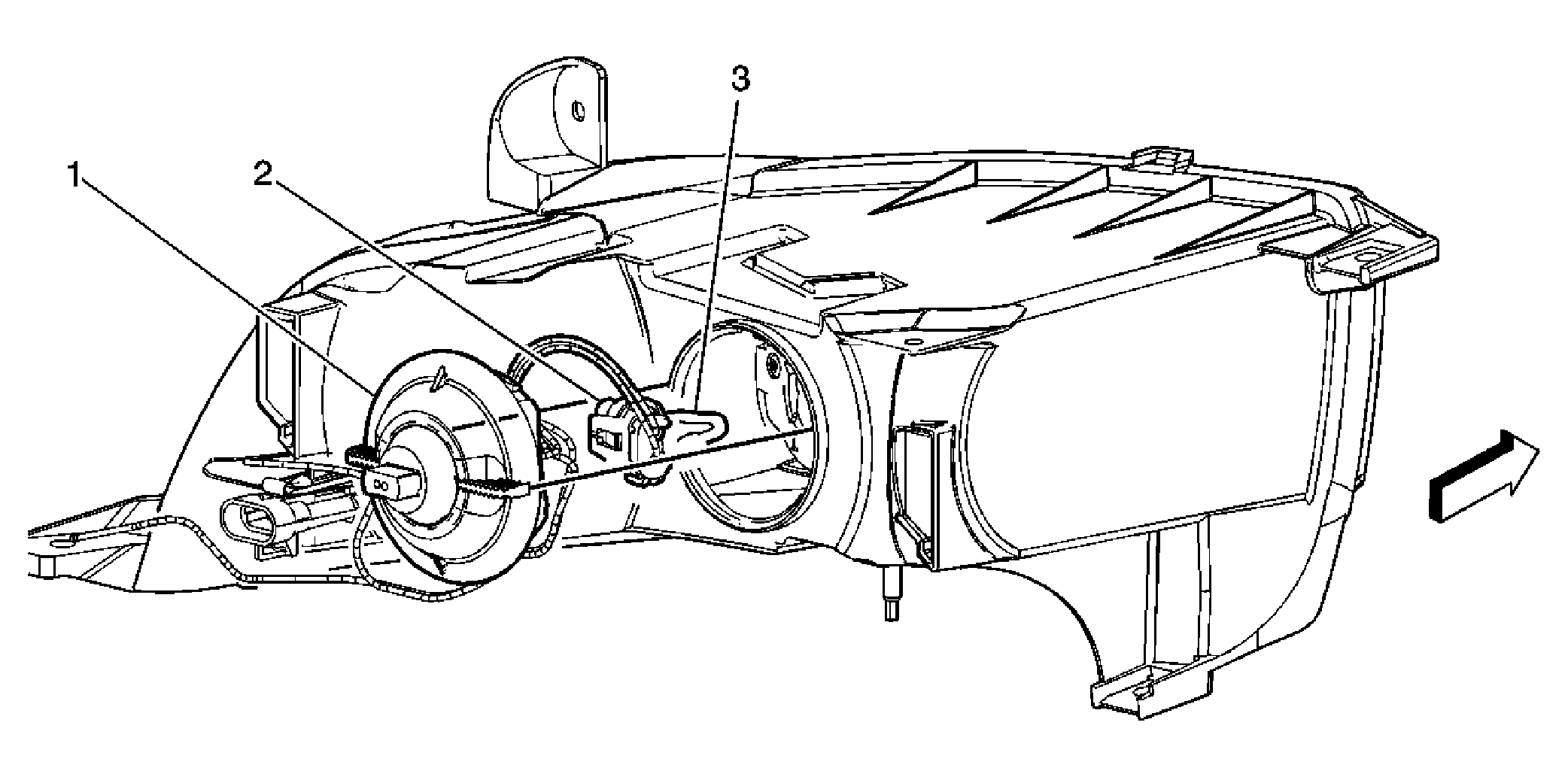

Fig 1: View Of Fog Lamp Bulb & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Fog Lamp Wiring Harness Assembly Cover TIP: Turn the cover a quarter turn in order to remove and access the fog lamp bulb.
2	Front Fog Lamp Electrical Connector TIP: Turn the bulb socket a quarter turn counterclockwise and remove the bulb socket from the inner lamp assembly.
3	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . TIP: Disconnect the fog lamp bulb socket from the electrical harness.
