Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

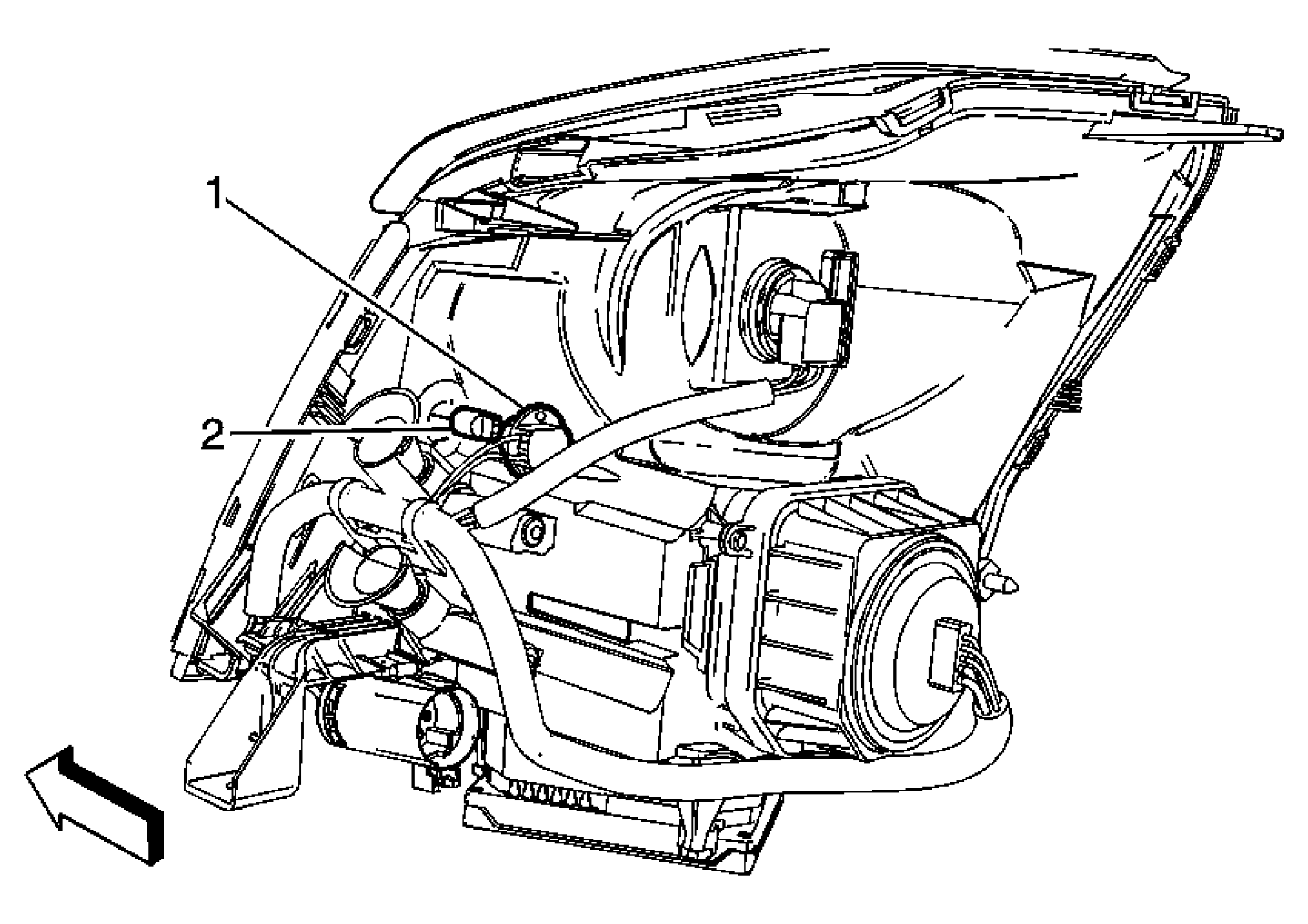

Fig 1: View Of Front Marker Lamp Bulb & Harness Socket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the high intensity discharge lamp assembly. Refer to High Intensity Discharge Headlamp Replacement .
1	Marker Lamp Harness Socket TIP: Turn the socket counter clockwise to remove from the headlamp composite.
2	Front Marker Lamp Bulb TIP: Pull the directional lamp bulb straight from the lamp socket.
