Power Steering Pump Flow Control Valve Replacement - On Vehicle

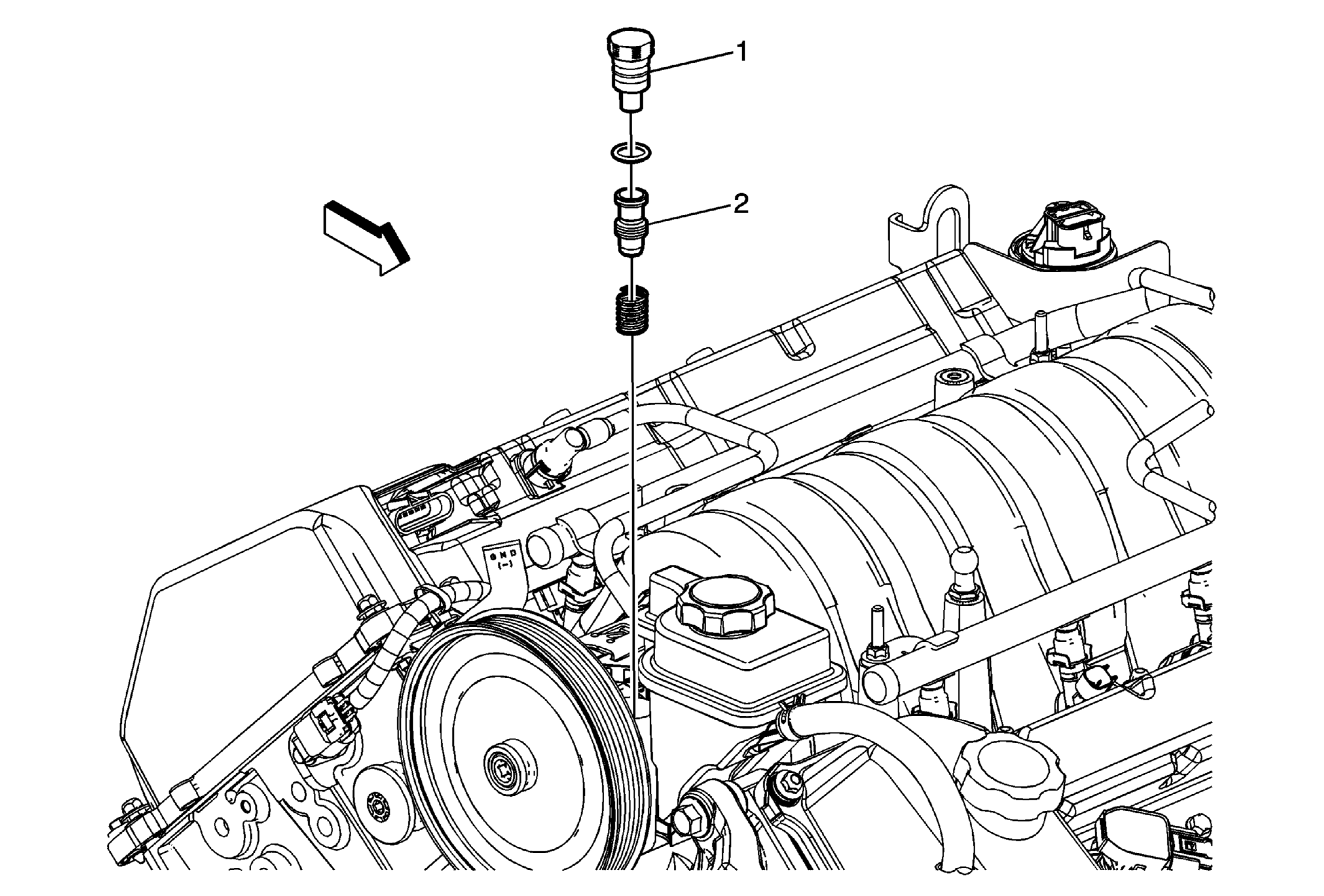

Fig 1: Identifying Power Steering Pump Flow Control Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement . Remove the power steering pressure hose from the power steering pump. Refer to Power Steering Pressure Pipe/Hose Replacement (LZ9/LGD) , Power Steering Pressure Pipe/Hose Replacement (L37) .
1	Power Steering Pump Fitting CAUTION: Refer to Fastener Caution . Procedure Replace the power steering pump fitting O-Ring if needed. Tighten 75 N.m (55 lb ft)
2	Power Steering Pump Flow Control Valve Procedure Transfer the power steering pump flow control valve spring if needed.

Callout

Component Name

Preliminary Procedures

Power Steering Pump Fitting

CAUTION:

Procedure
Replace the power steering pump fitting O-Ring if needed.
Tighten
75 N.m (55 lb ft)

Power Steering Pump Flow Control Valve
Procedure
Transfer the power steering pump flow control valve spring if needed.
