Control Module HVAC




Component Connector End Views

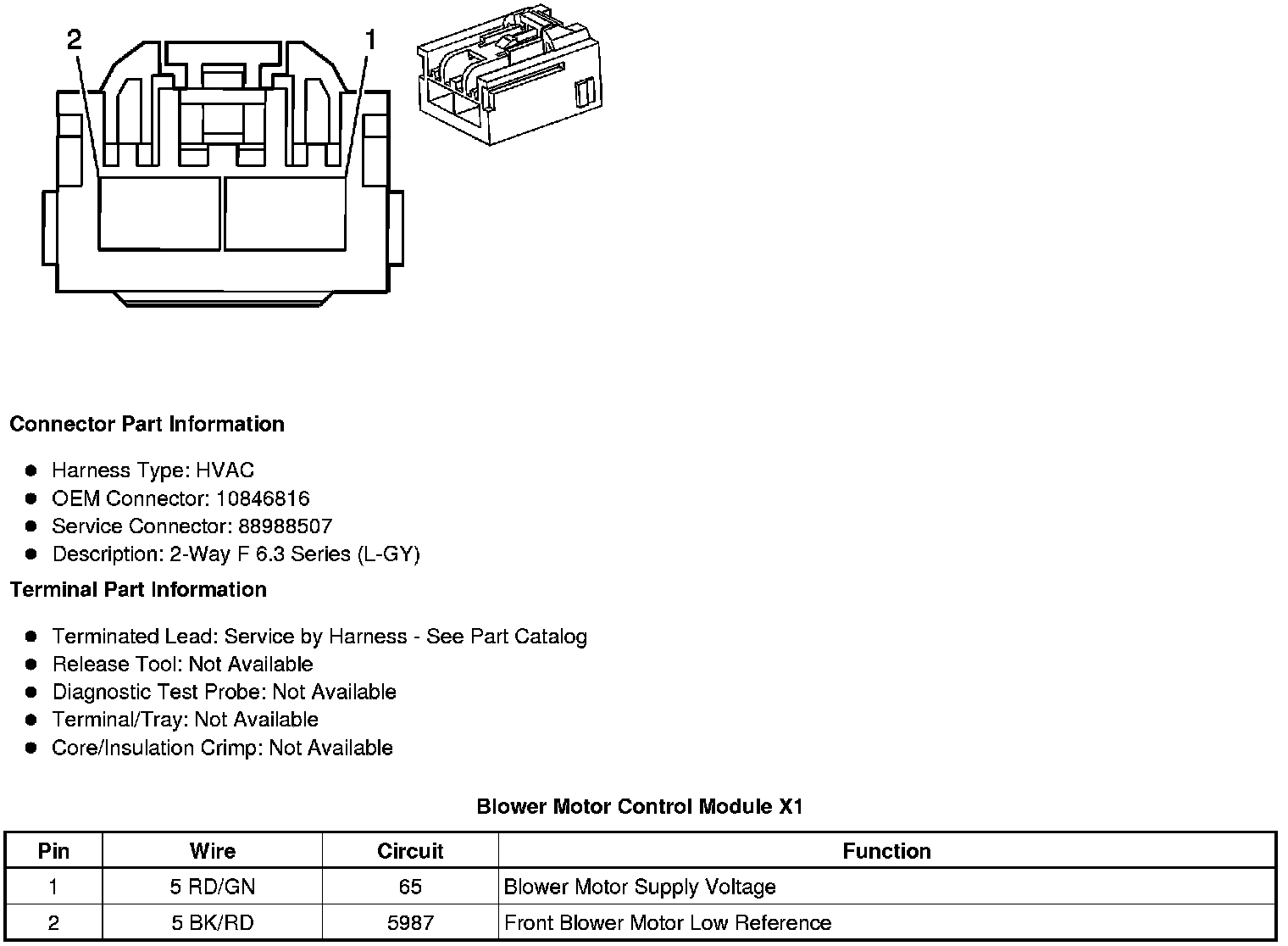

Blower Motor Control Module X1

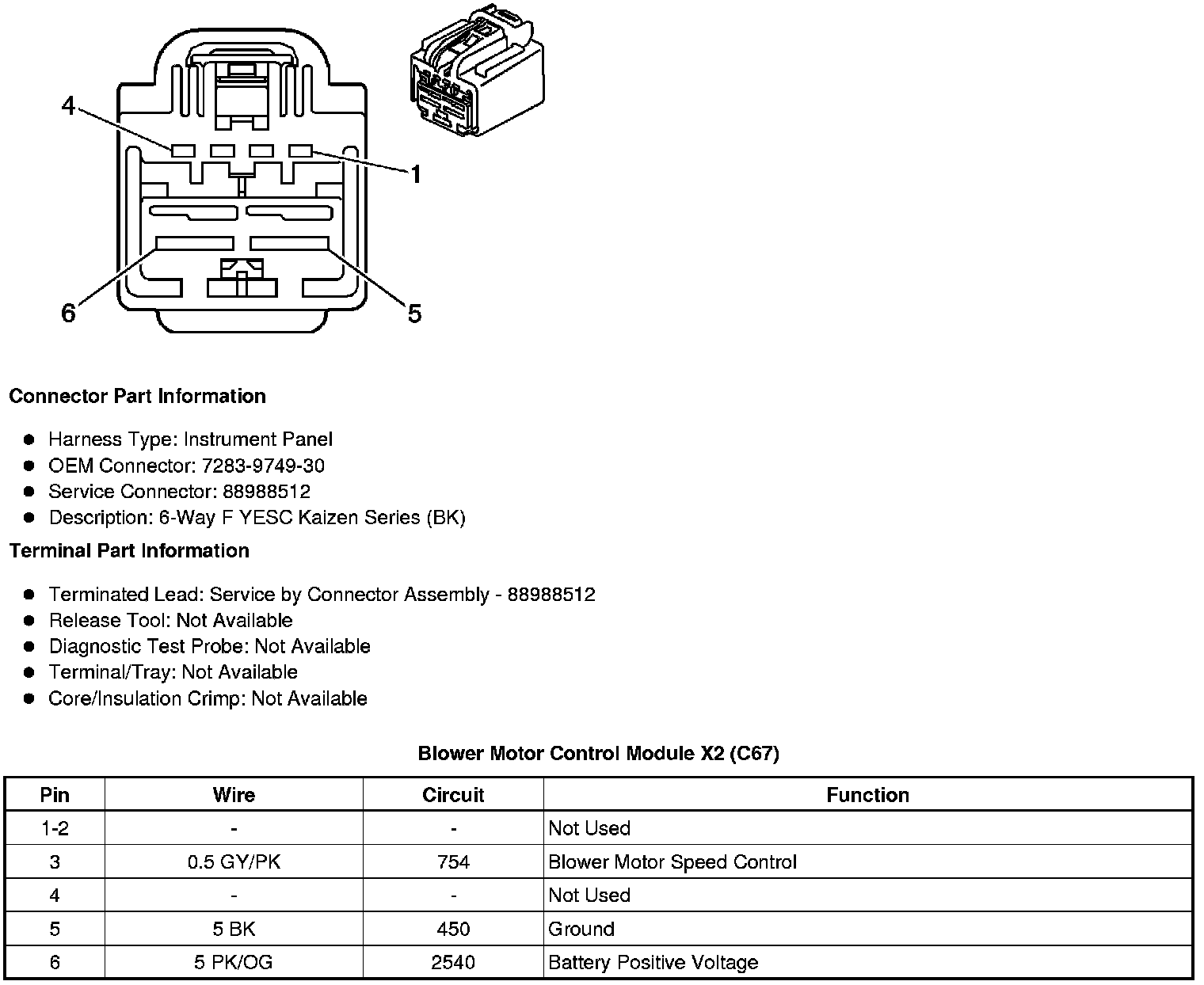

Blower Motor Control Module X2 (C67)






Blower Motor Control Module X2 (CJ2)
