Front Door Latch




Component Connector End Views

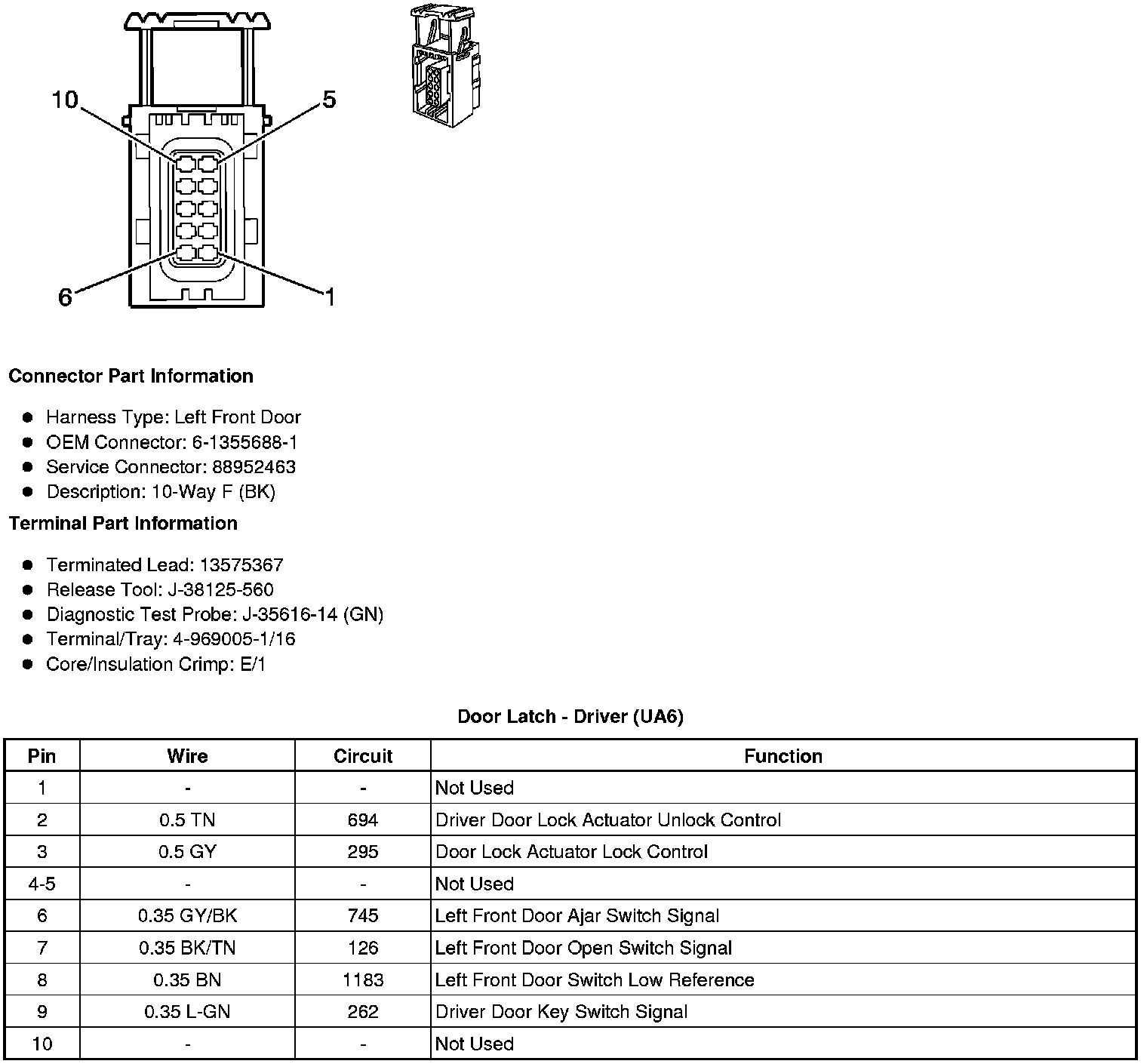

Door Latch - Driver (UA6)

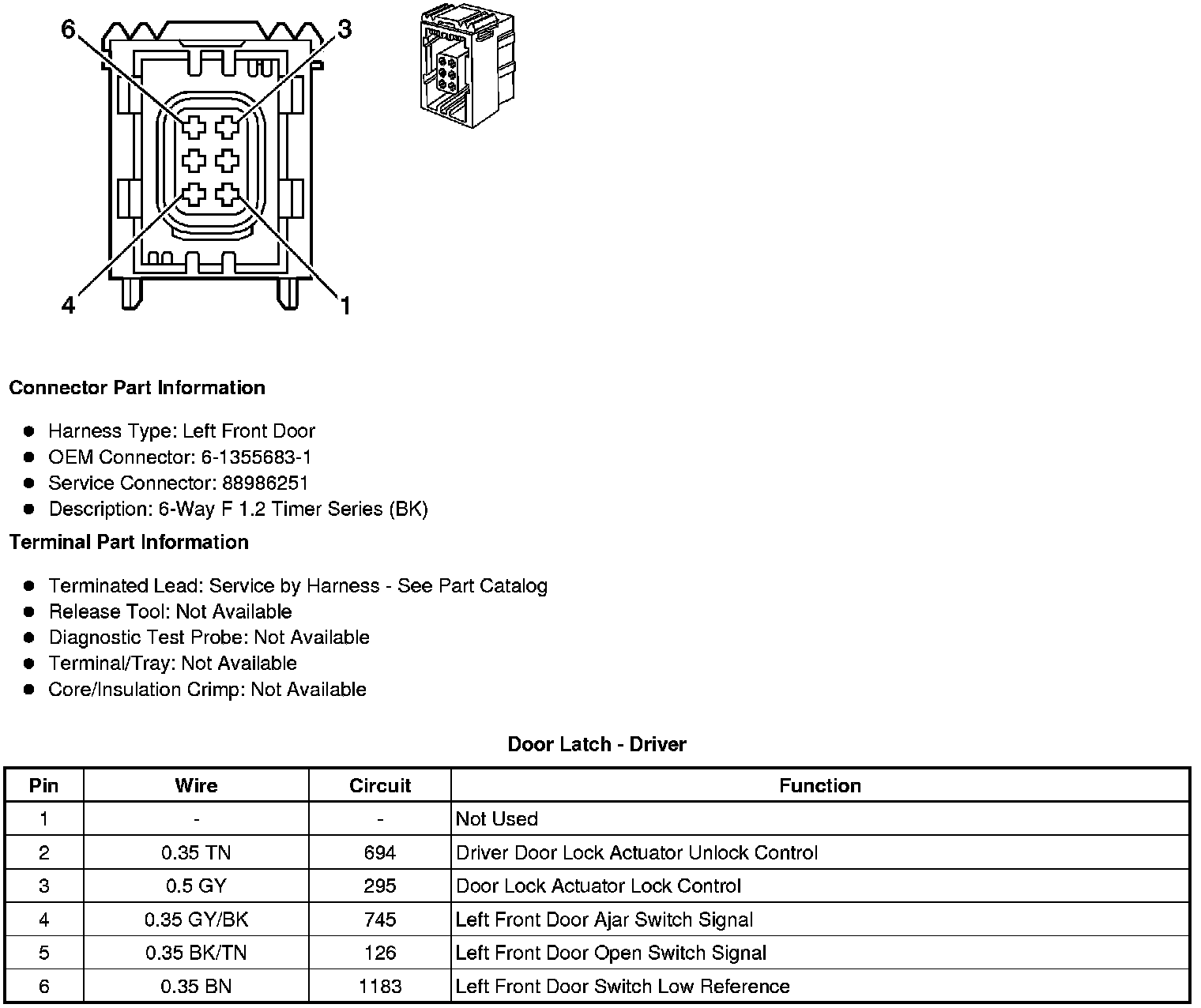

Door Latch - Driver






Door Latch - Passenger

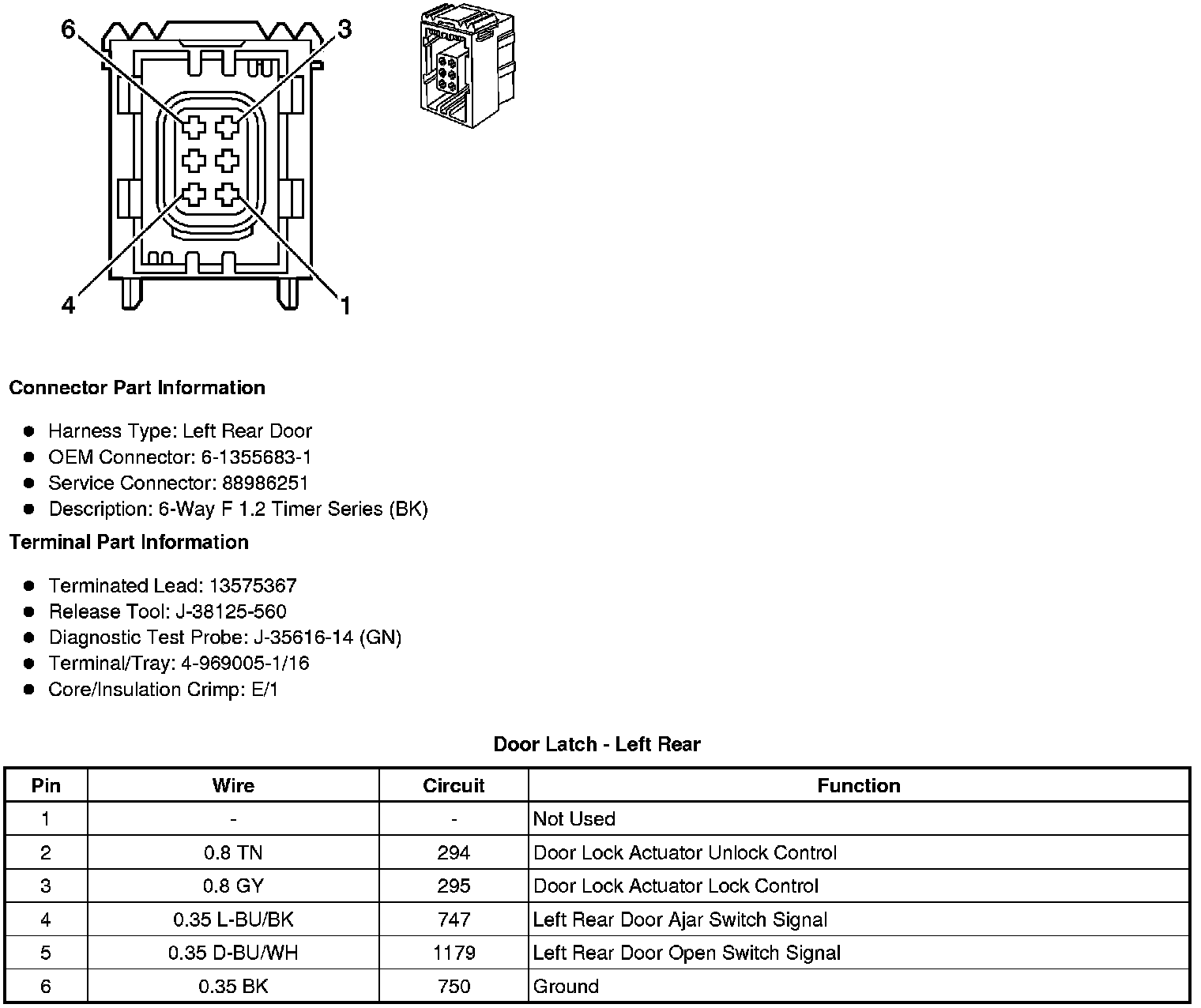

Door Latch - Left Rear

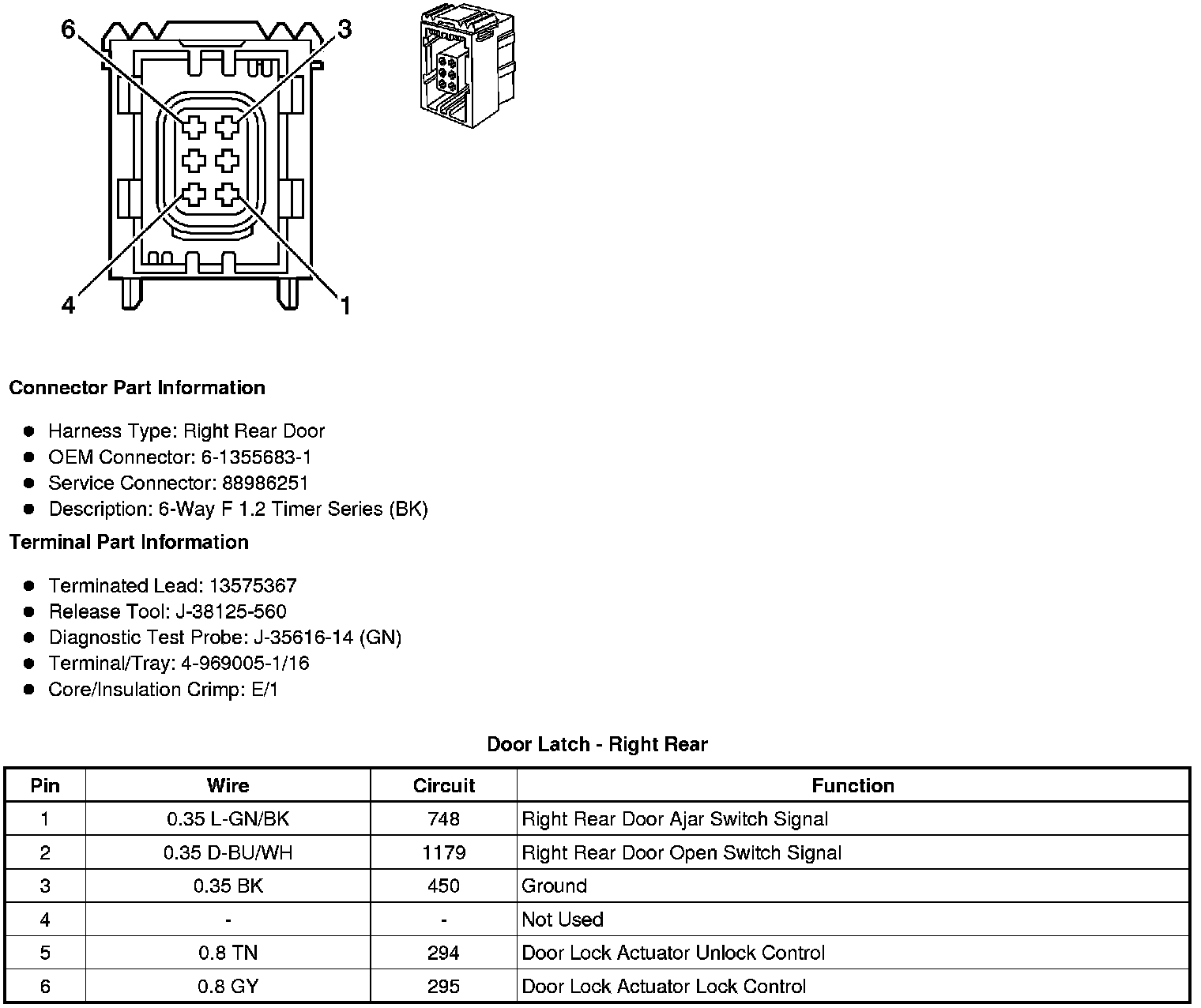

Door Latch - Right Rear
