Fuel Injector




Component Connector End Views

Fuel Injector 1 (LGD)

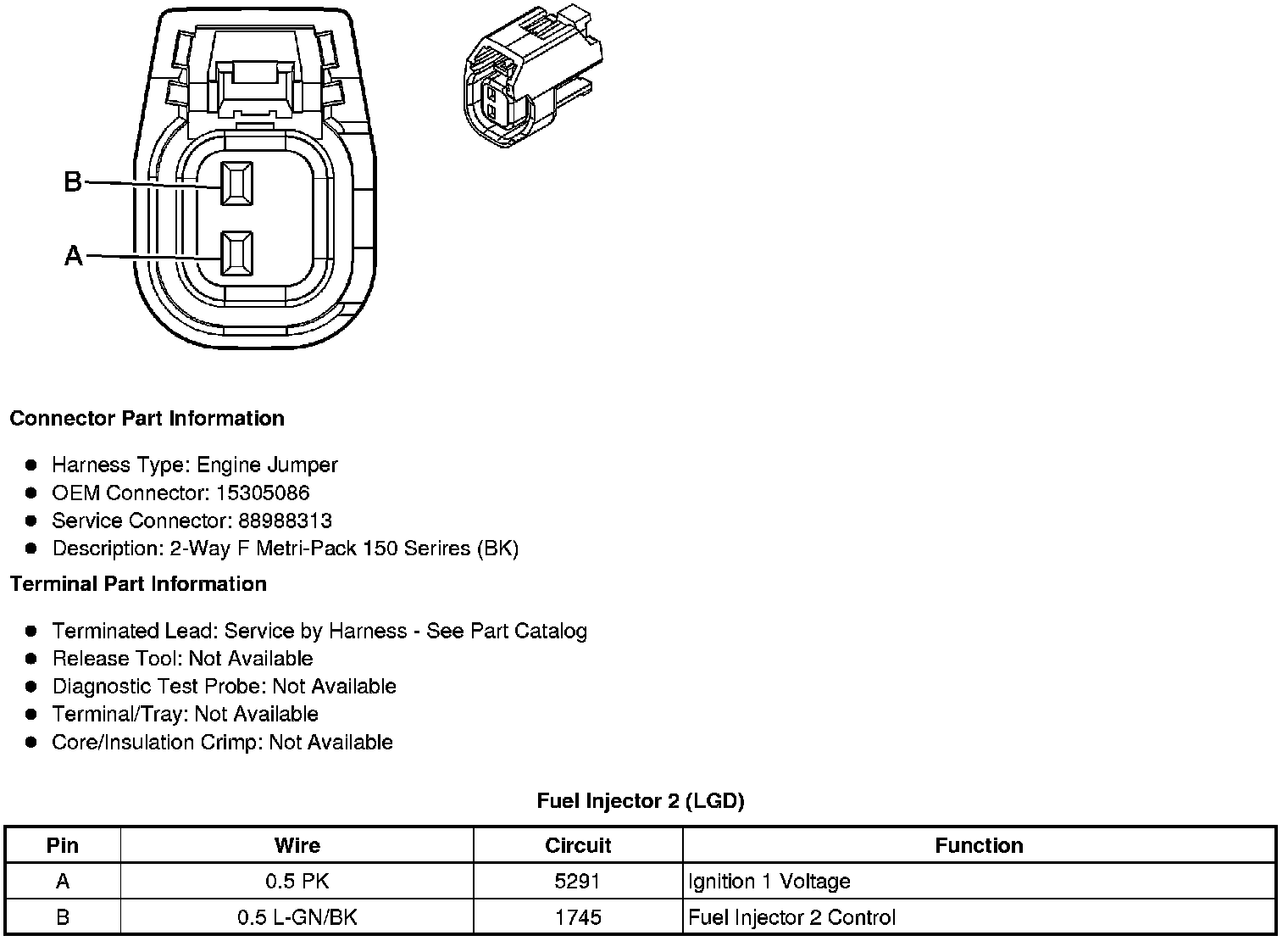

Fuel Injector 2 (LGD)






Fuel Injector 3 (LGD)






Fuel Injector 4 (LGD)

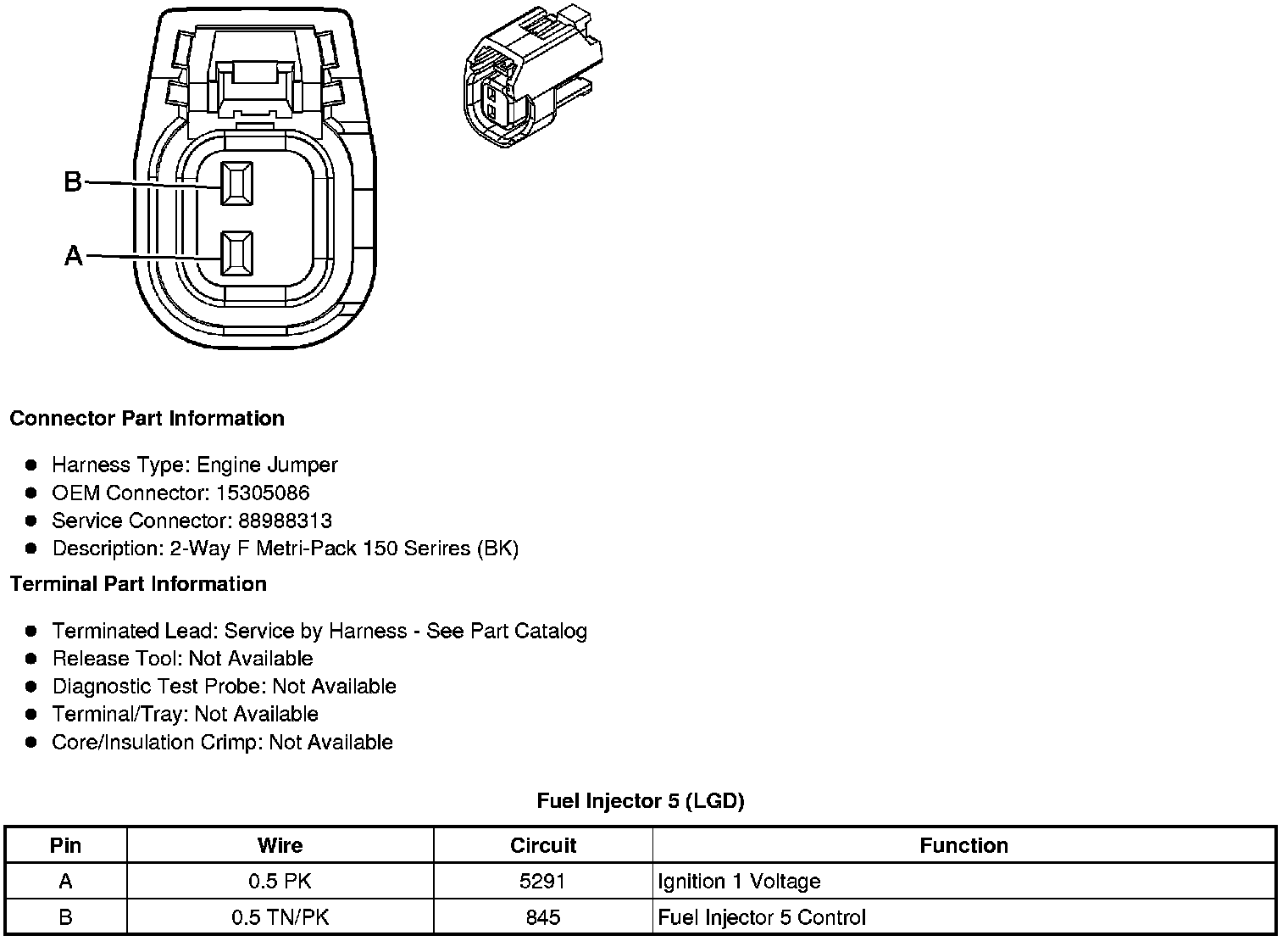

Fuel Injector 5 (LGD)






Fuel Injector 6 (LGD)
