Inflatable Restraint Front Passenger Presence System (PPS) Module

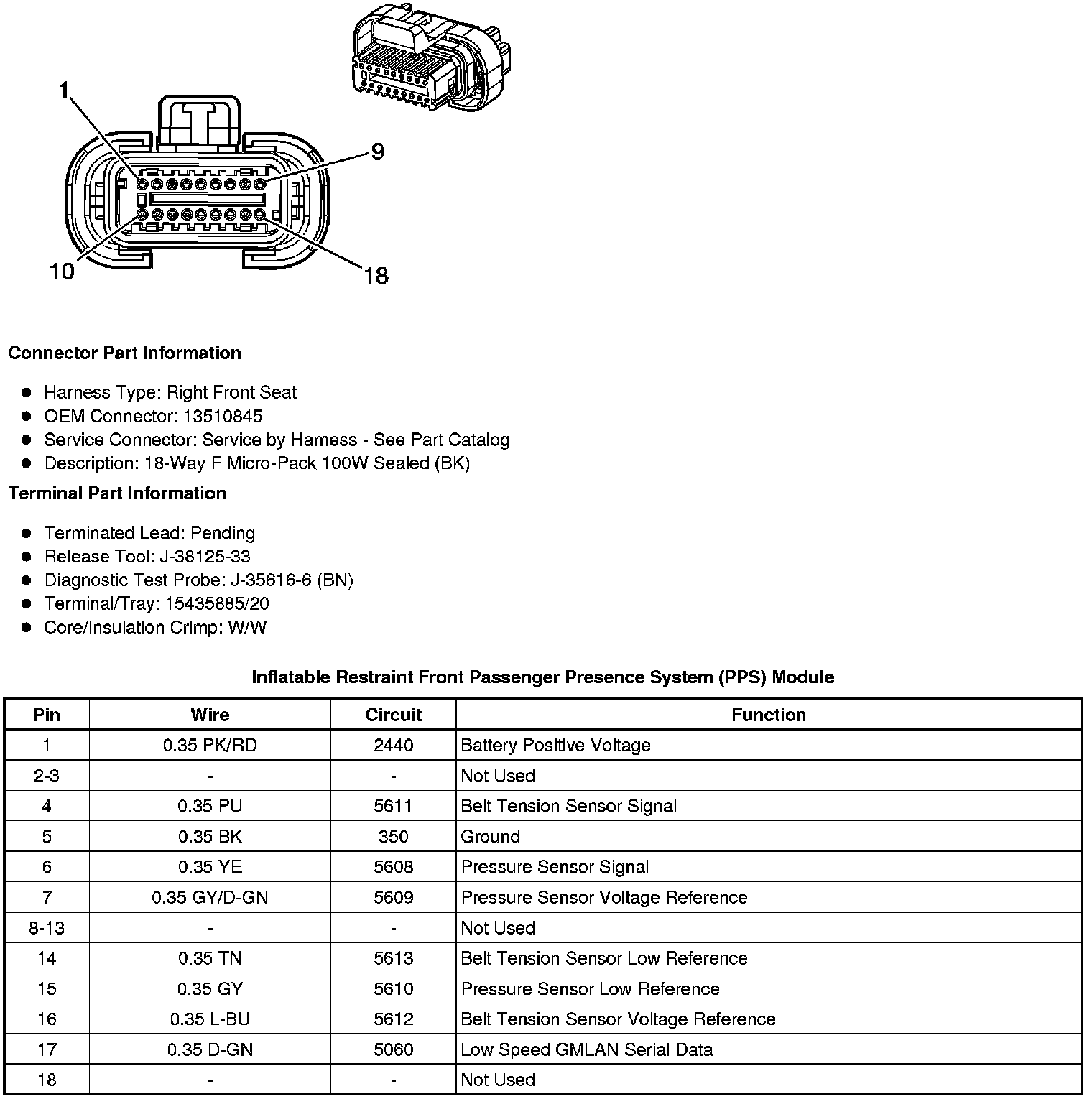

Component Connector End Views

Inflatable Restraint Front Passenger Presence System (PPS) Module
