Seat Temperature Element




Component Connector End Views

Heated and Cooled Seat Switch - Driver (KA1/KB6/A45)






Heated and Cooled Seat Switch - Passenger (KA1/KB6)

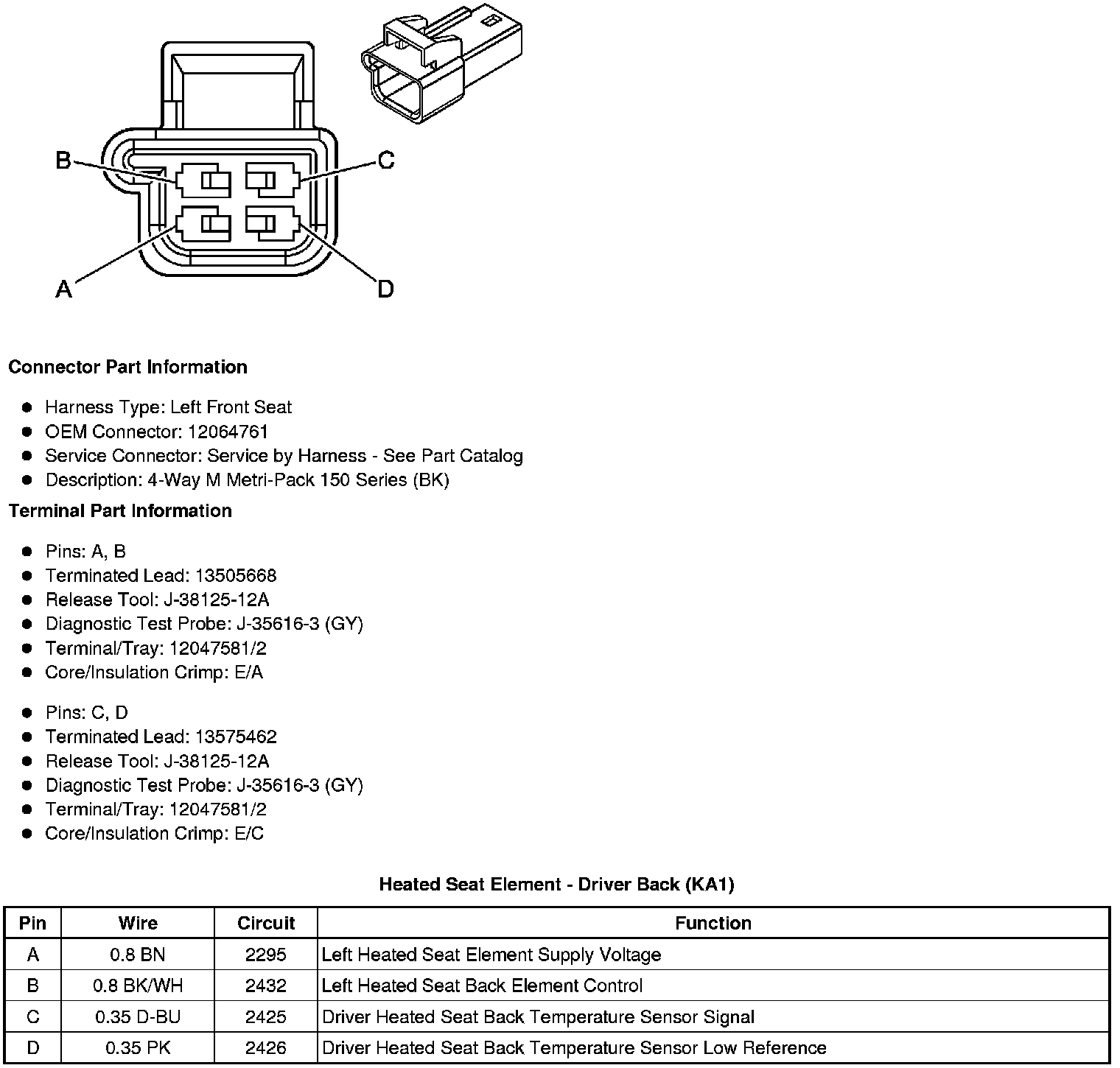

Heated Seat Element - Driver Back (KA1)

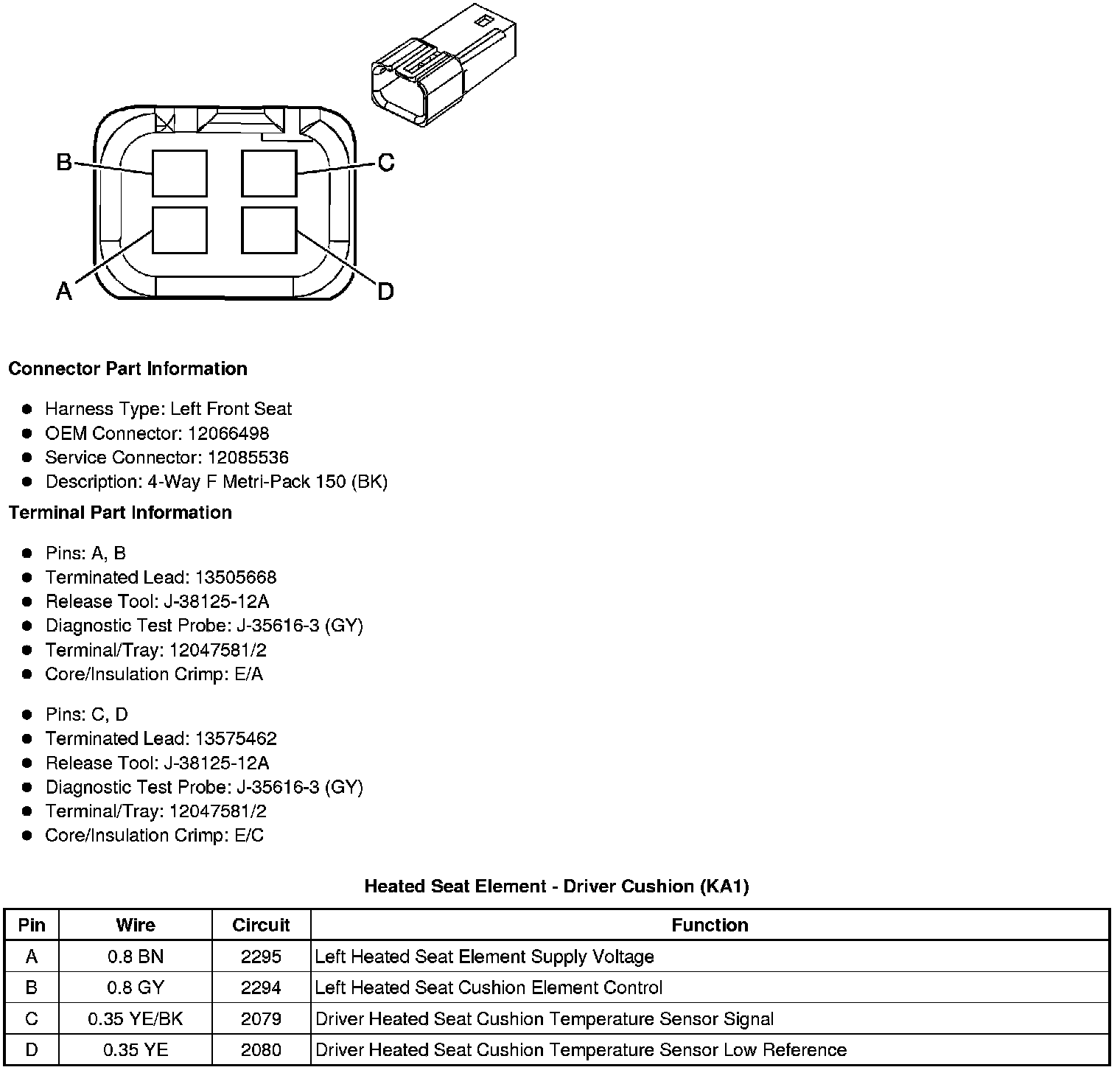

Heated Seat Element - Driver Cushion (KA1)

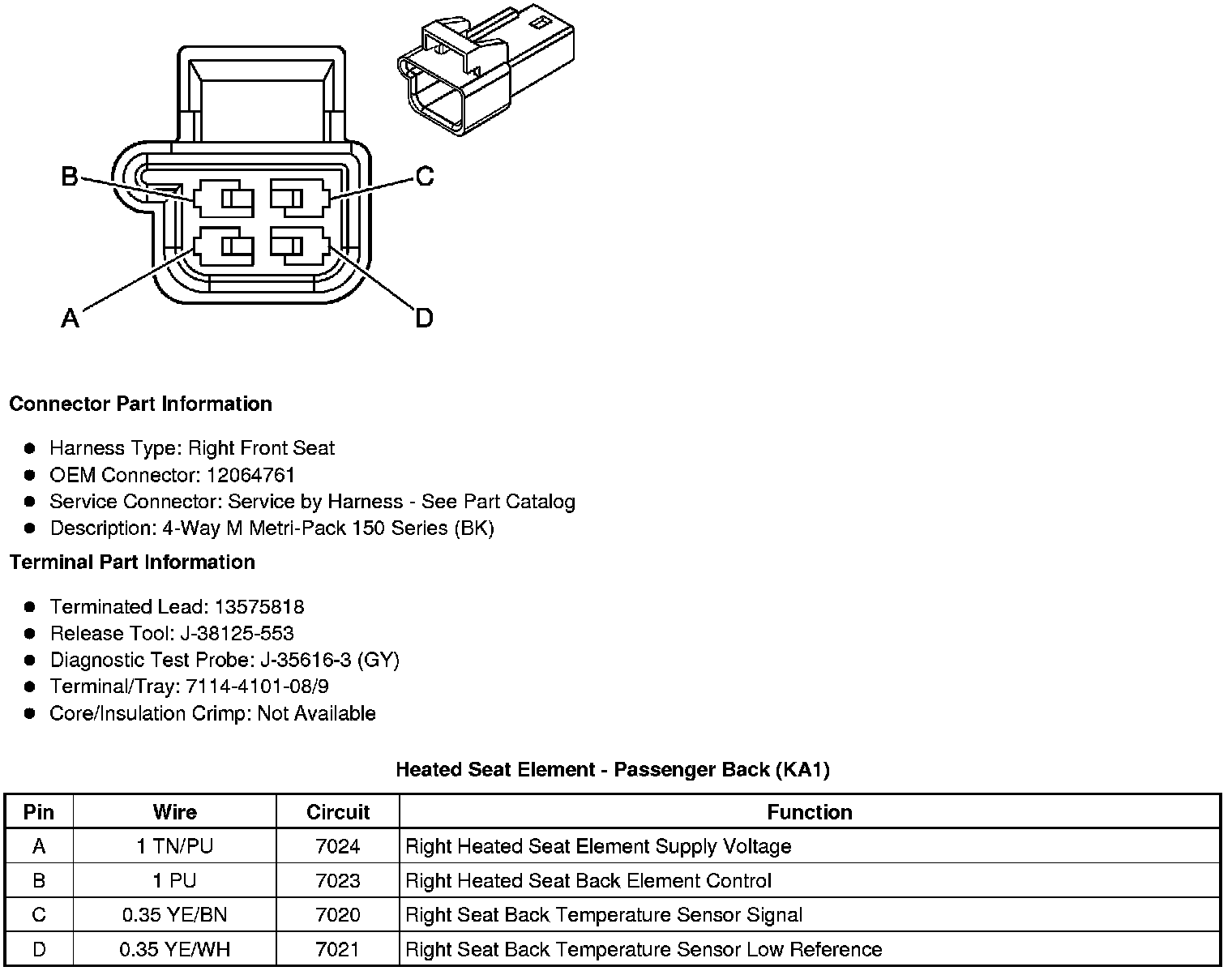

Heated Seat Element - Passenger Back (KA1)

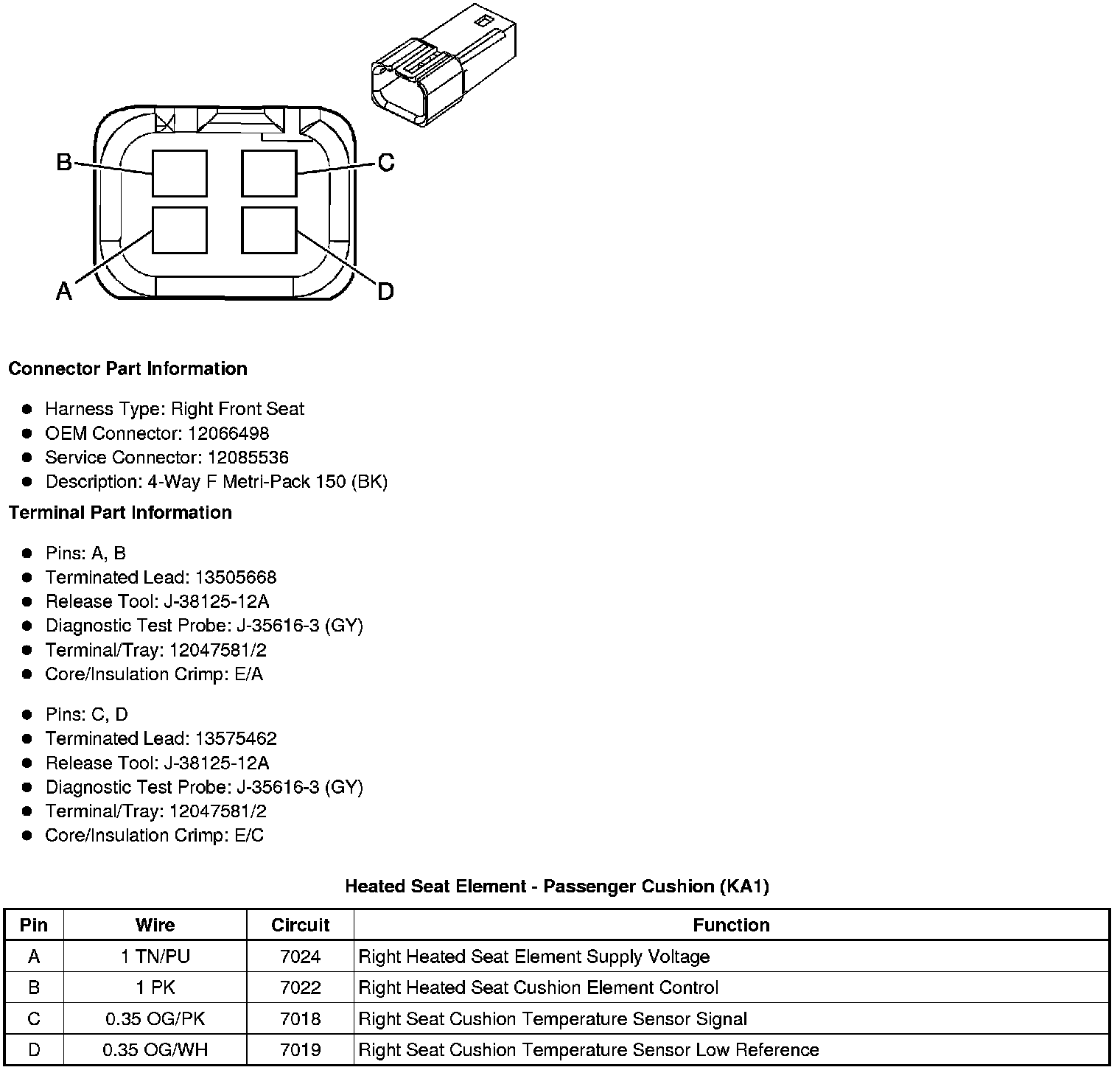

Heated Seat Element - Passenger Cushion (KA1)
