Seat Temperature Switch




Component Connector End Views

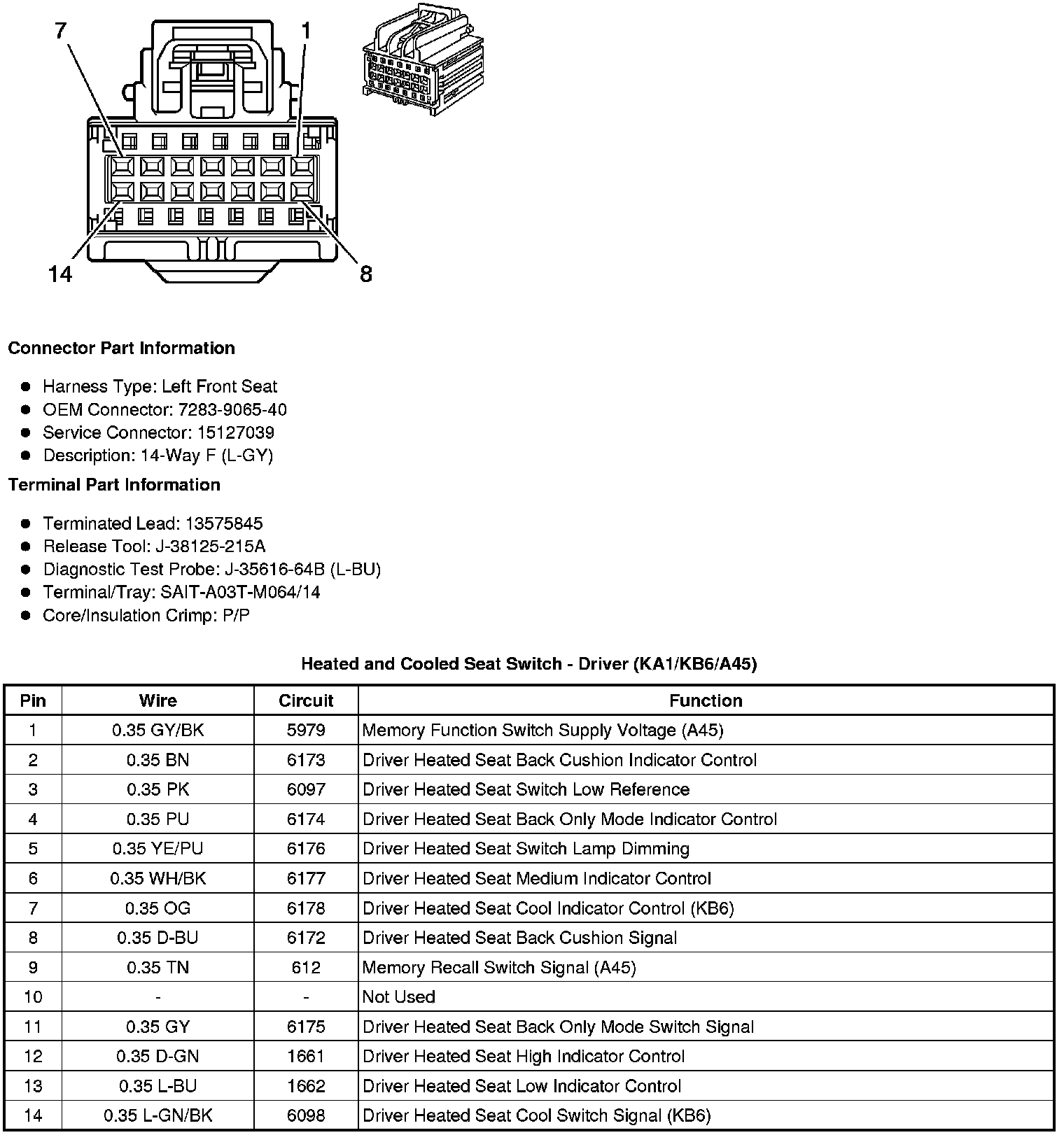

Heated and Cooled Seat Switch - Driver (KA1/KB6/A45)

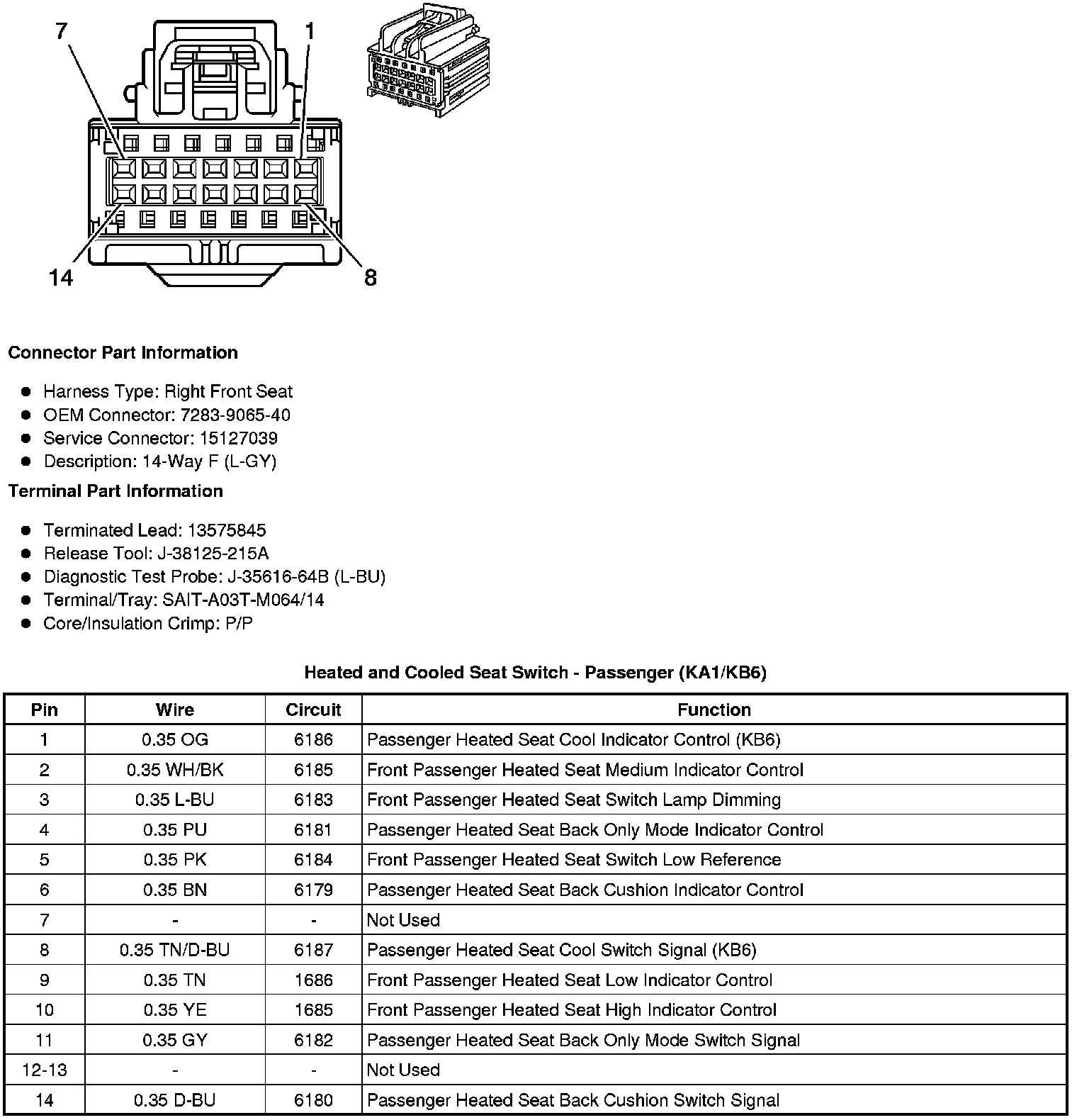

Heated and Cooled Seat Switch - Passenger (KA1/KB6)
