Steering Wheel Heater Control Module

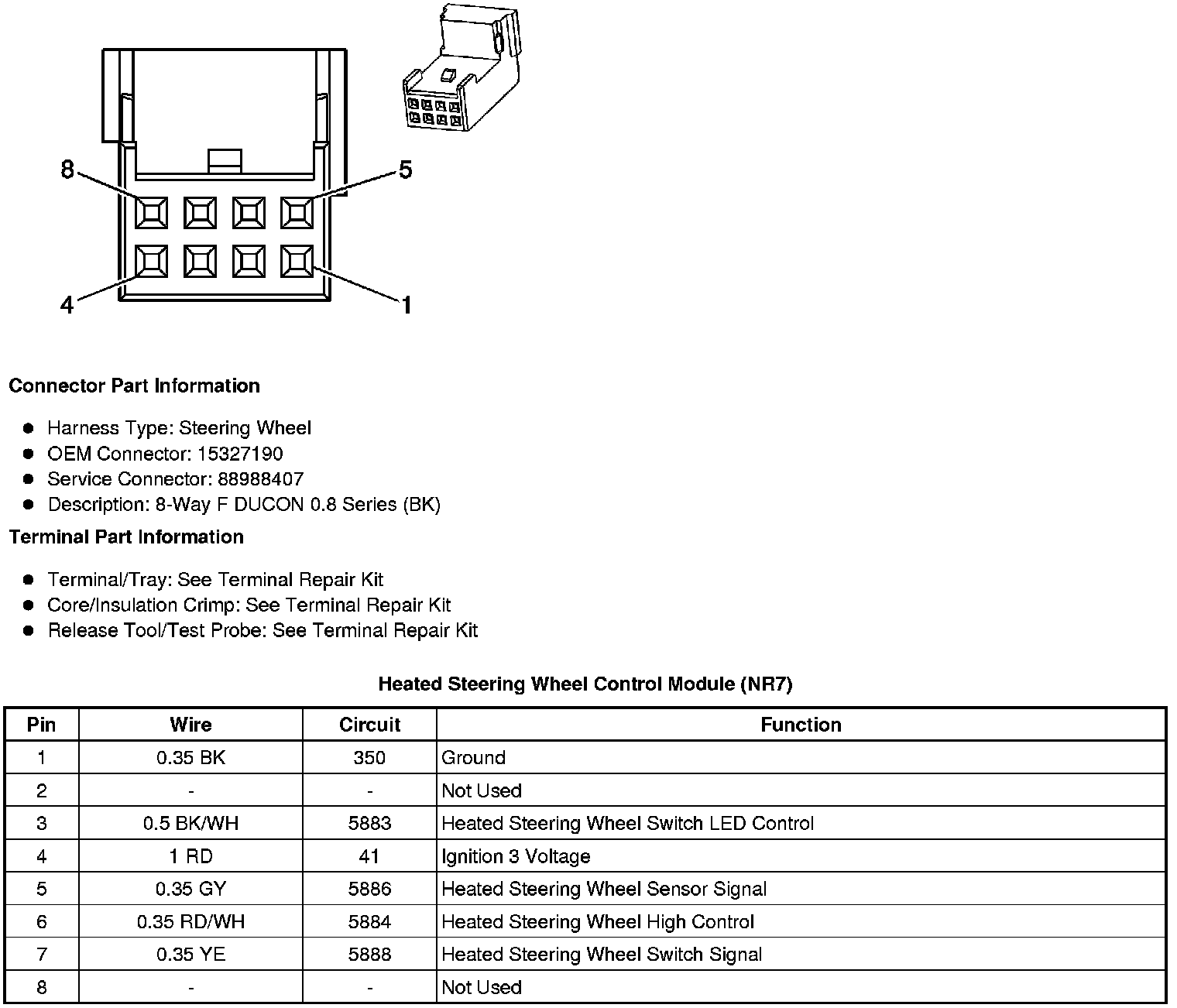

Component Connector End Views

Heated Steering Wheel Control Module (NR7)
