Body Control Systems




Body Control System Schematics

BCM Power and Ground

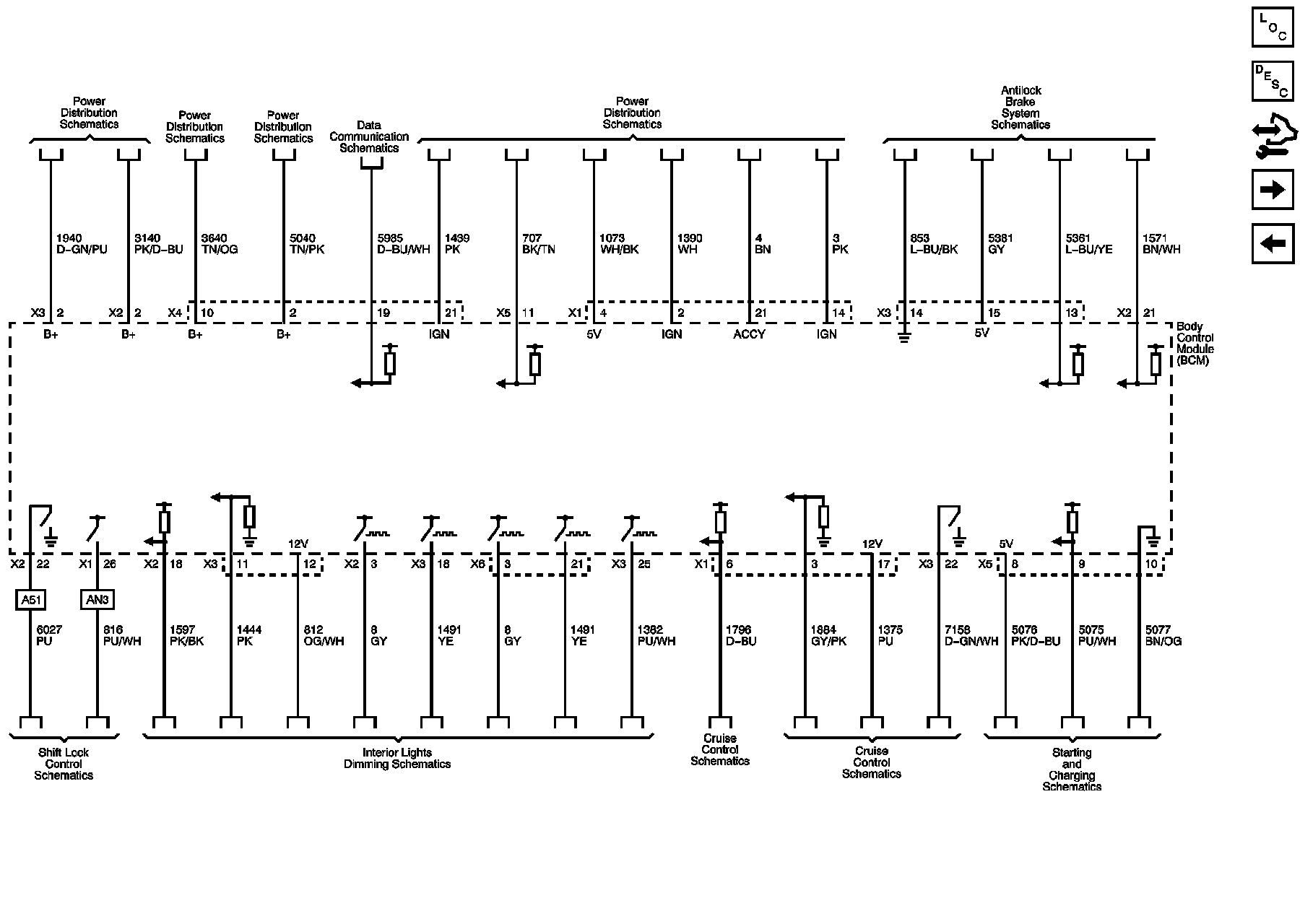

Subsystem References (1 of 4)

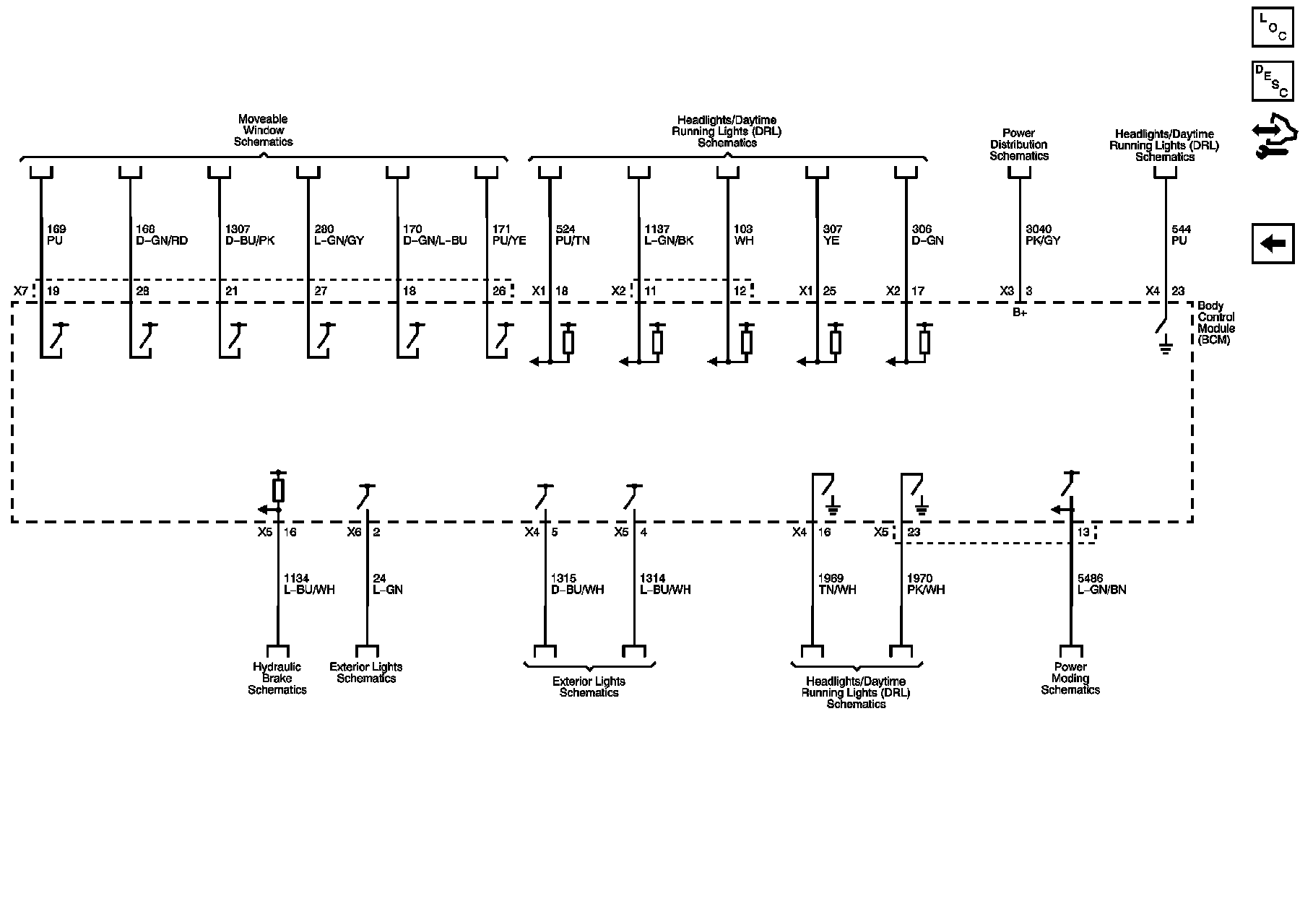

Subsystem References (2 of 4)





Subsystem References (3 of 4)





Subsystem References (4 of 4)
