Fuse Block - Rear




Electrical Center Identification Views

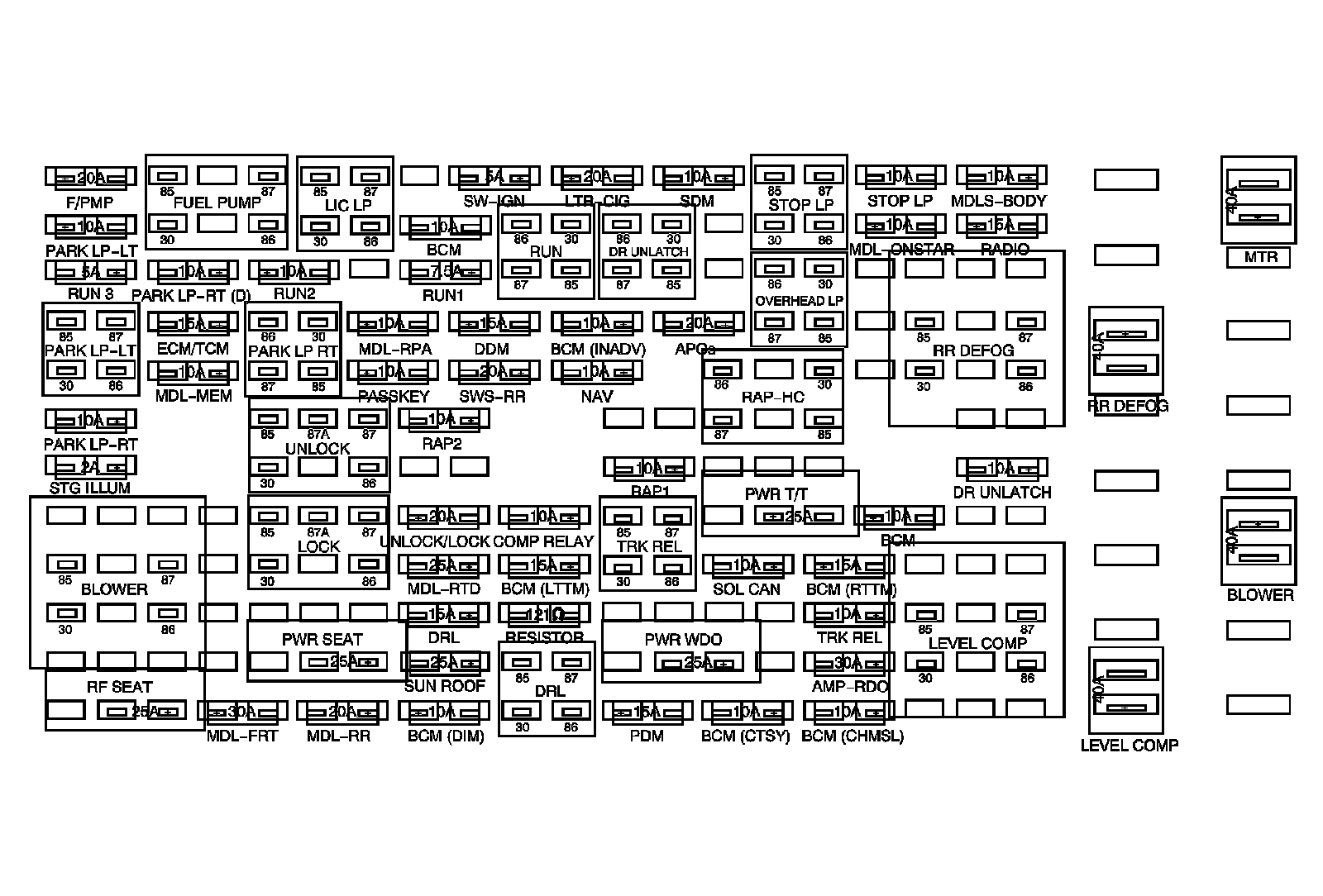

Fuse Block - Rear Label














Fuse Block - Rear Top View






Fuse Block - Rear Bottom View

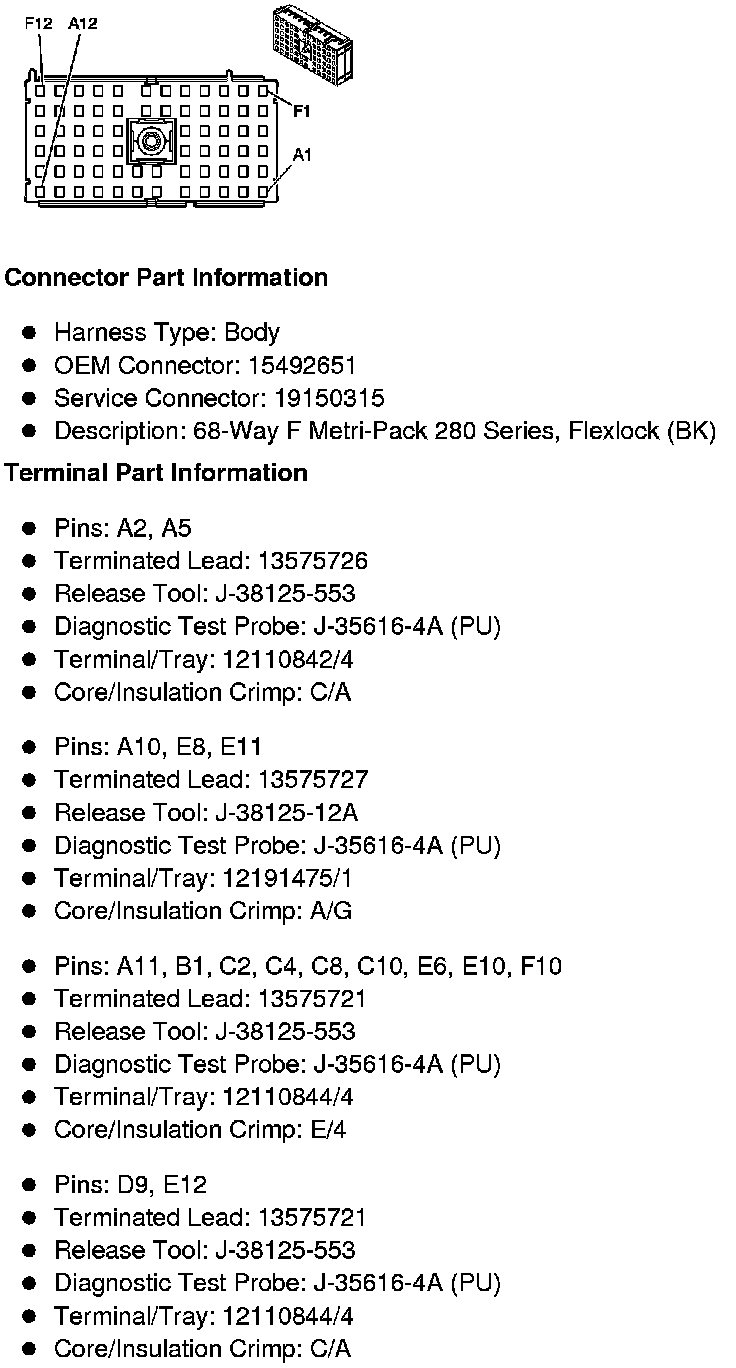

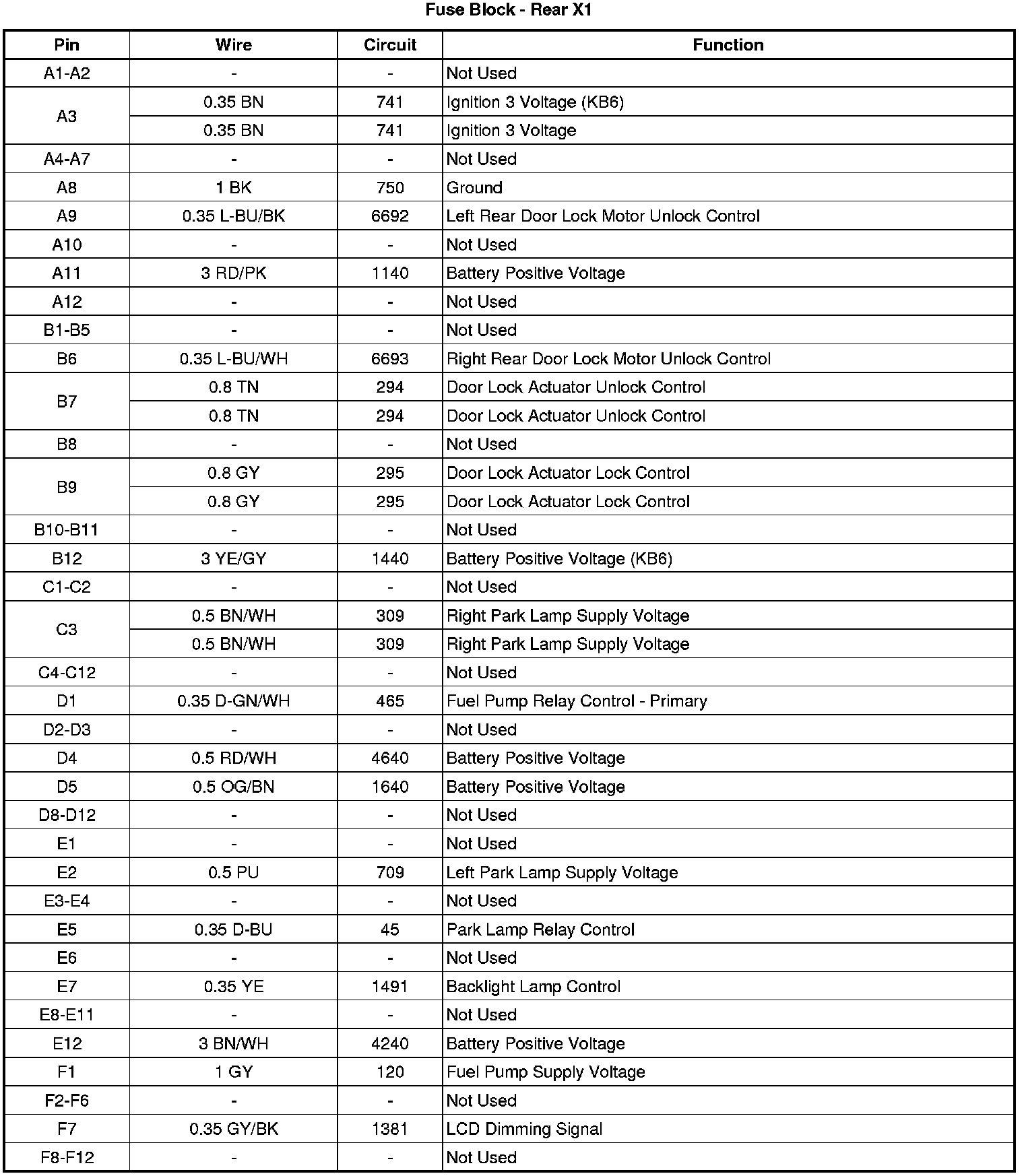

Fuse Block - Rear X1

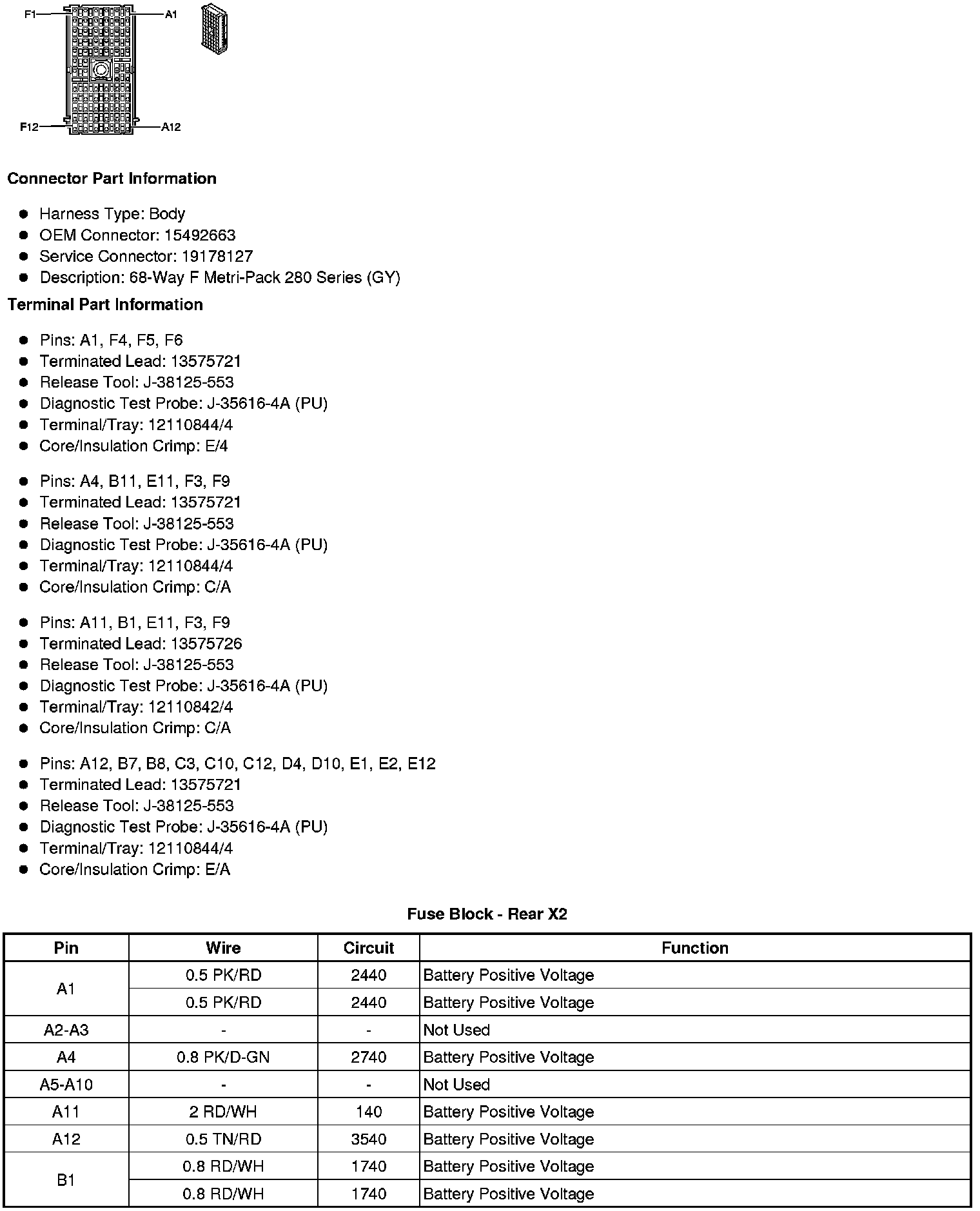

Fuse Block - Rear X2

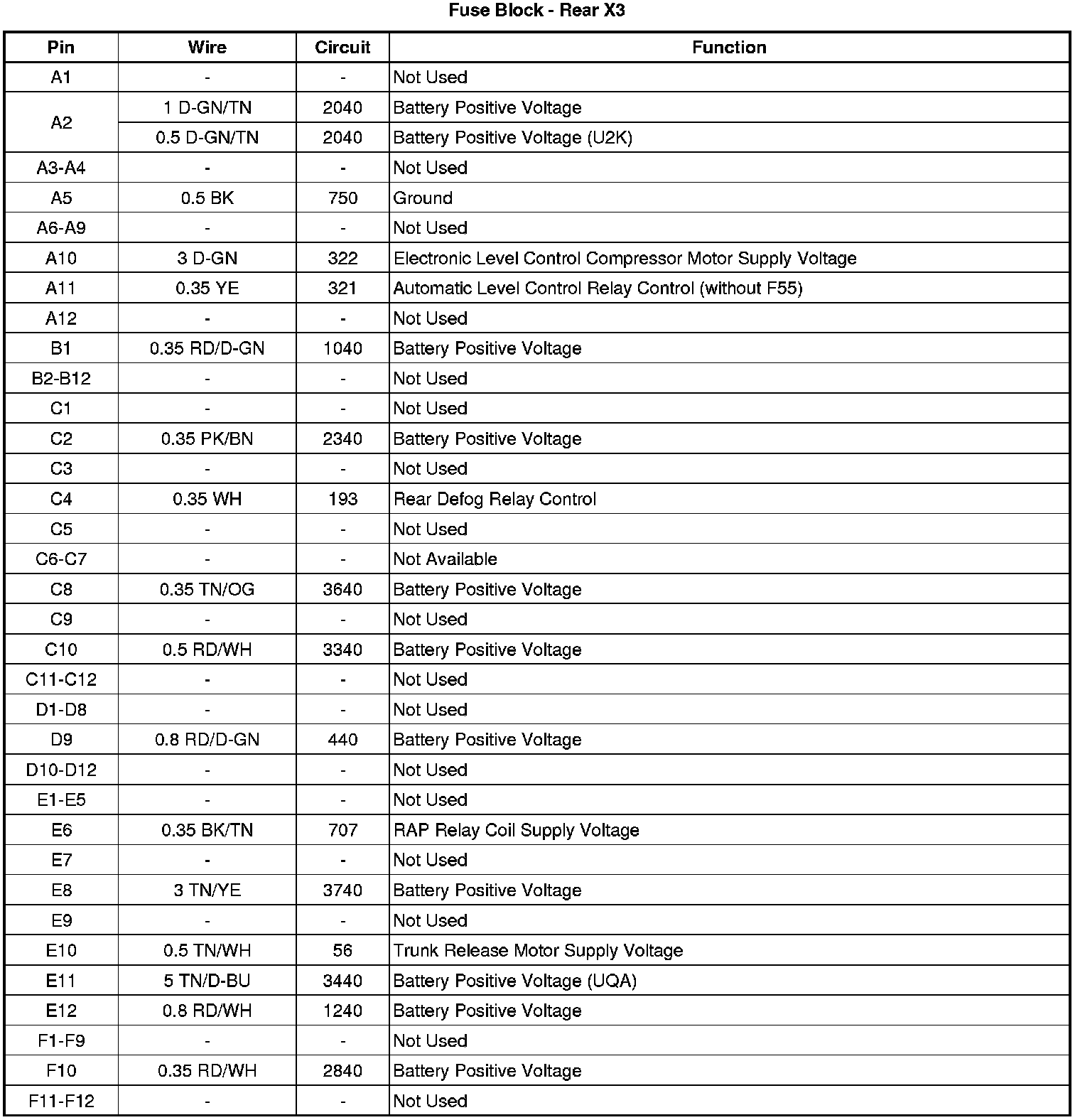

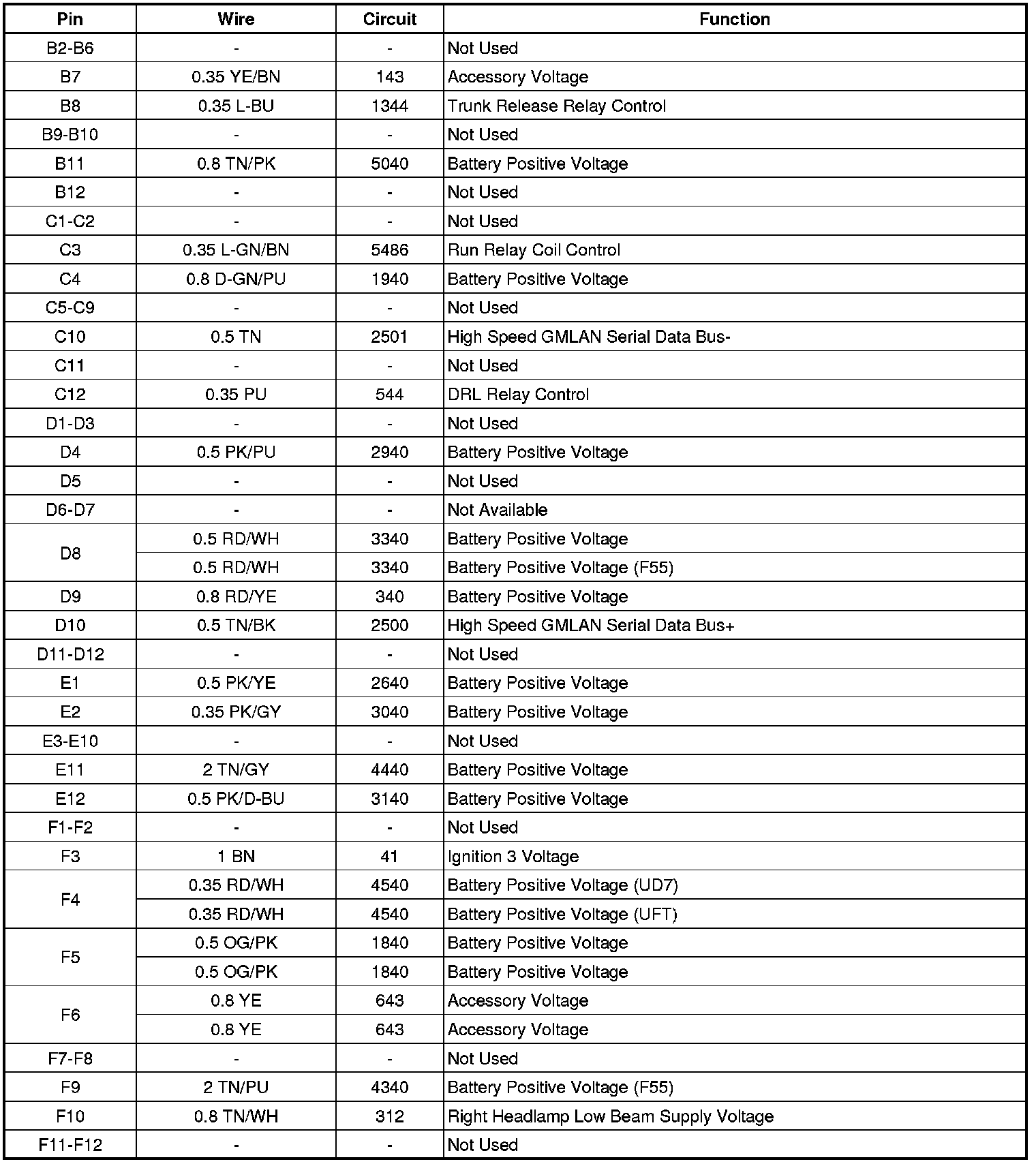

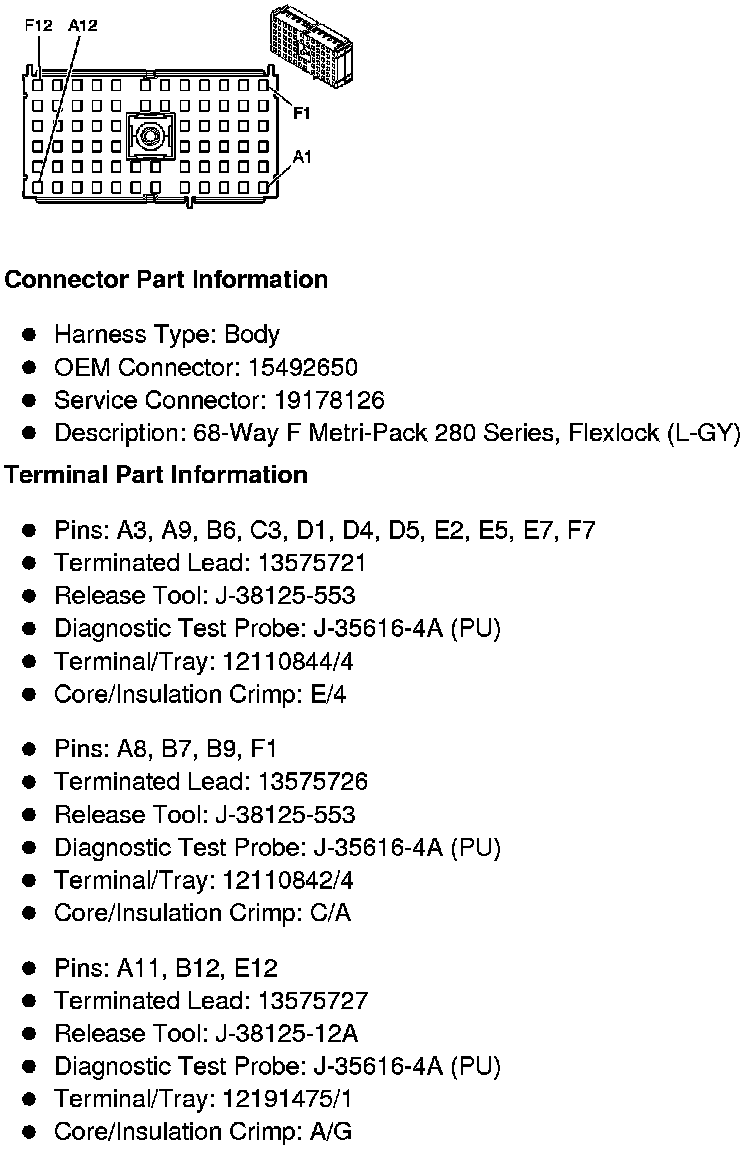

Fuse Block - Rear X3










Fuse Block - Rear X4






Fuse Block - Rear X5






Fuse Block - Rear X6 (To Battery)
