Power Window Switch: Diagrams




Component Connector End Views

Door Lock/Window Switch - Driver X1

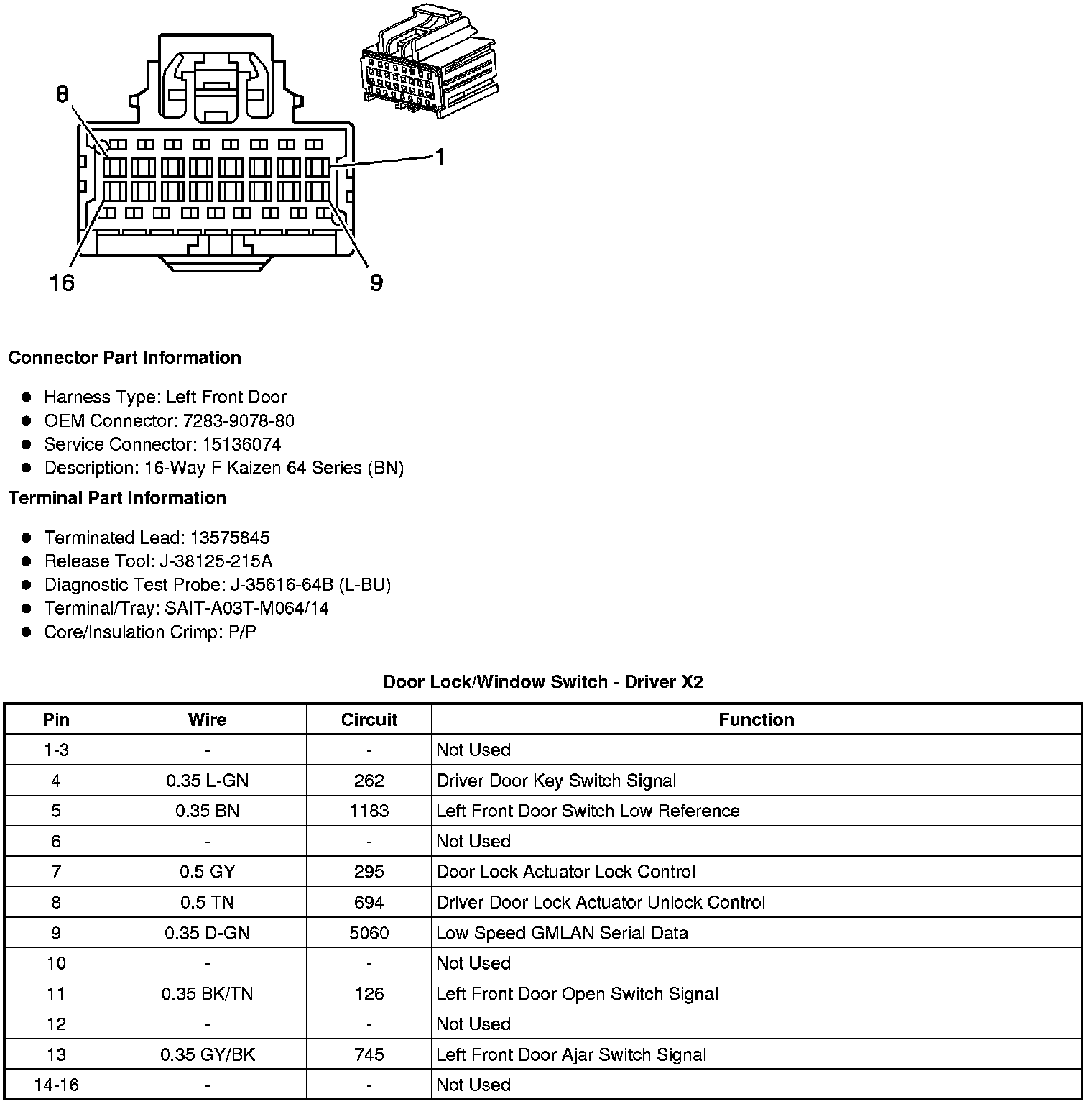

Door Lock/Window Switch - Driver X2

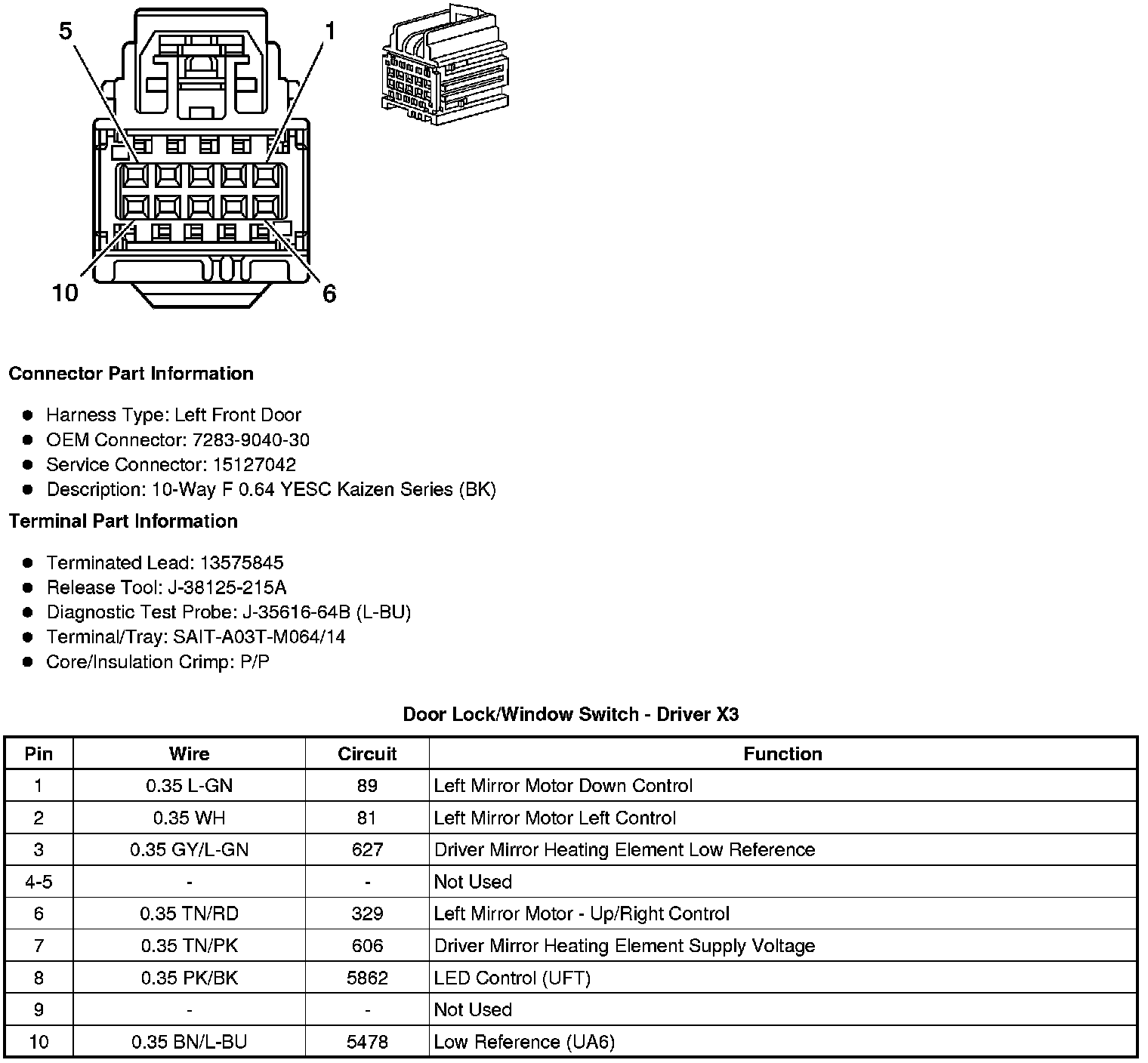

Door Lock/Window Switch - Driver X3

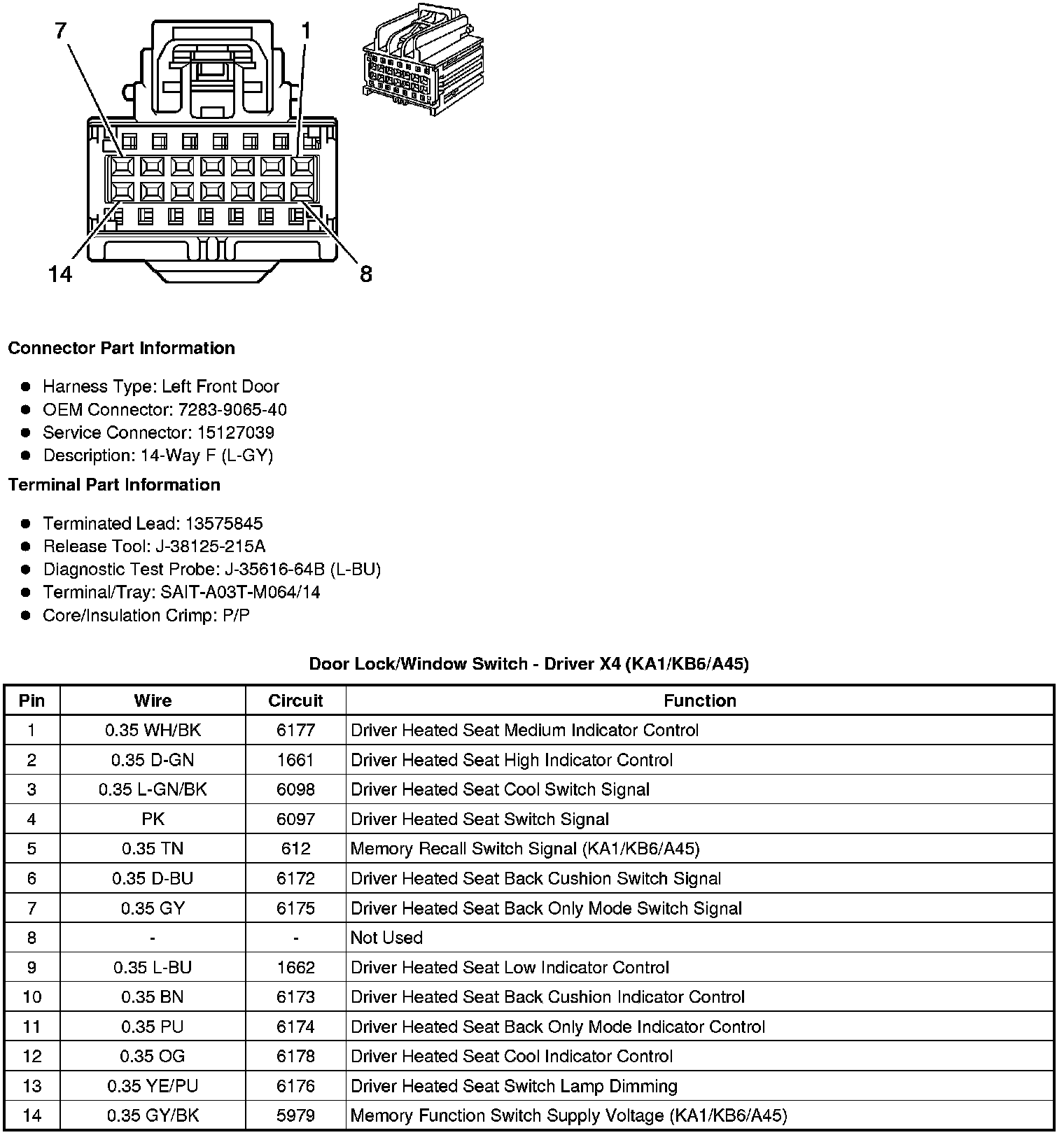

Door Lock/Window Switch - Driver X4 (KA1/KB6/A45)

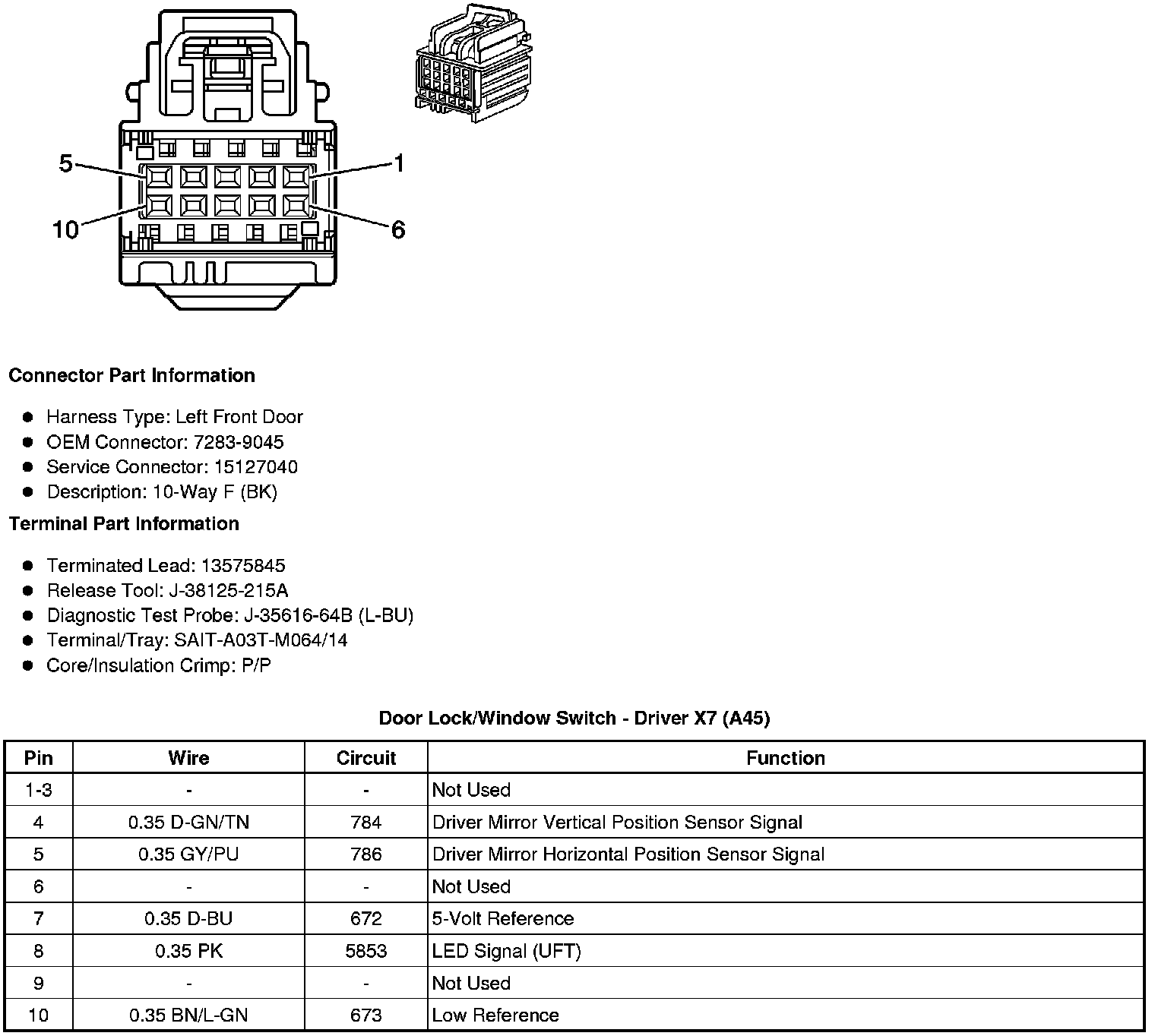

Door Lock/Window Switch - Driver X7 (A45)

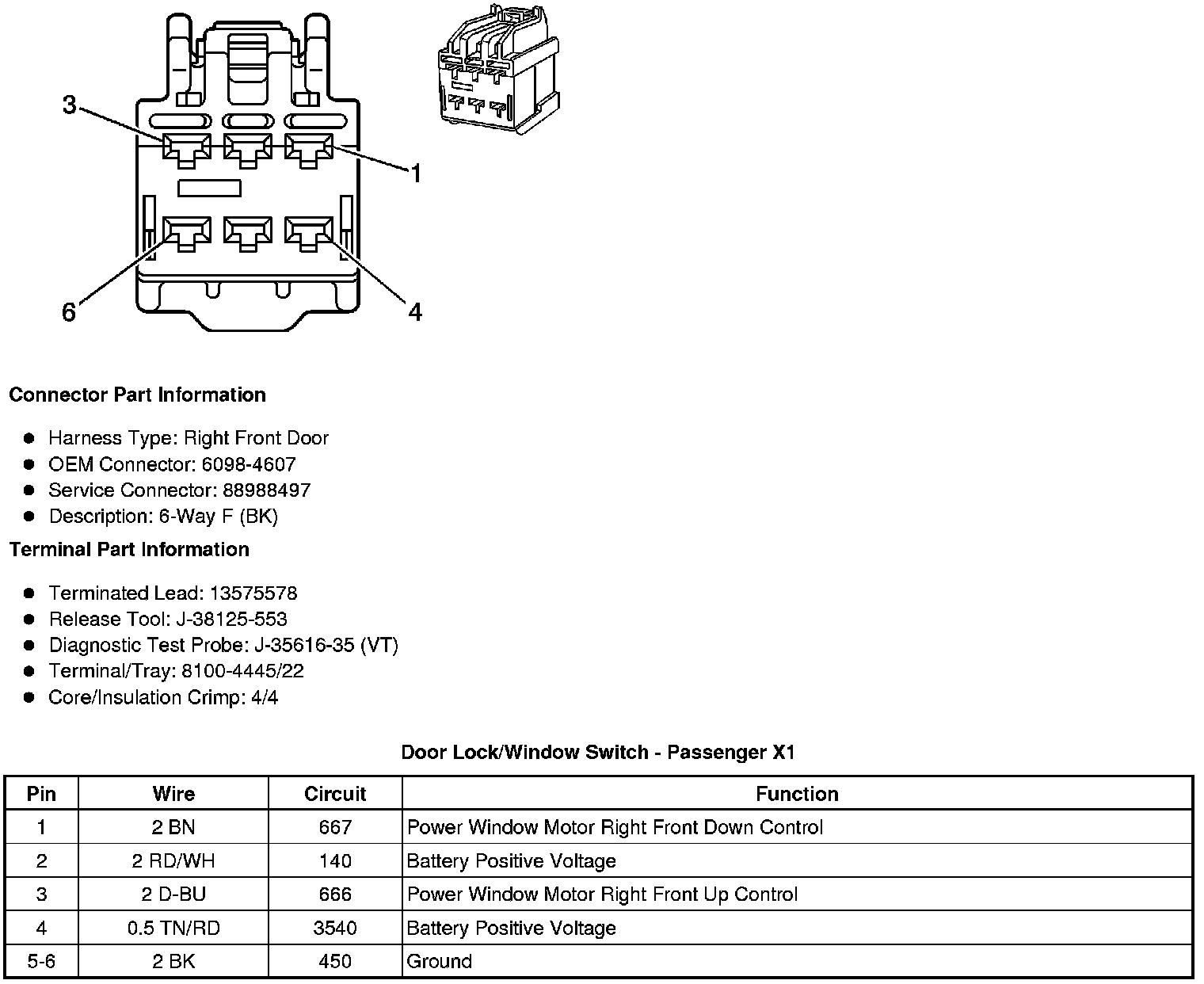

Door Lock/Window Switch - Passenger X1






Door Lock/Window Switch - Passenger X2






Door Lock/Window Switch - Passenger X3

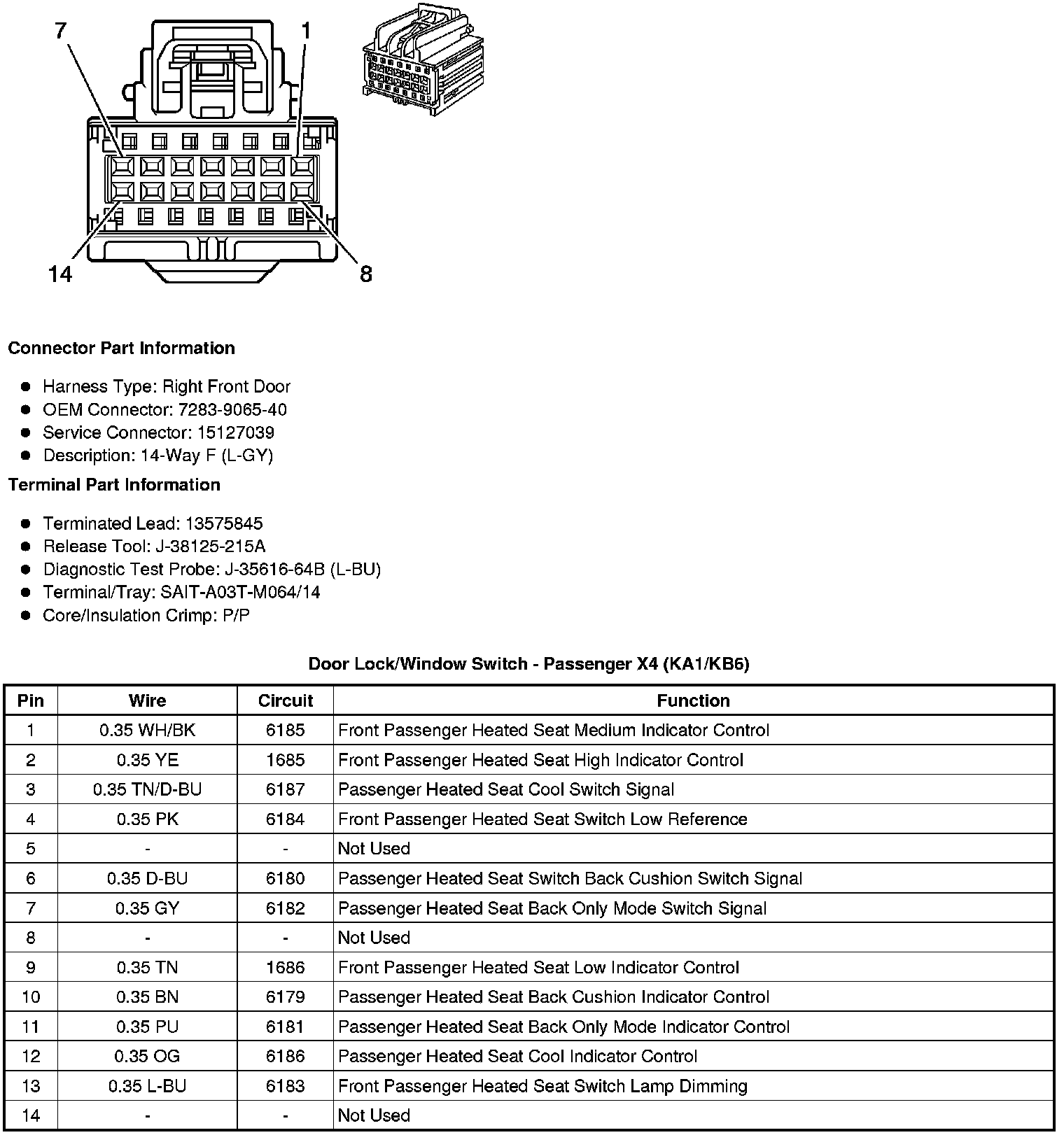

Door Lock/Window Switch - Passenger X4 (KA1/KB6)

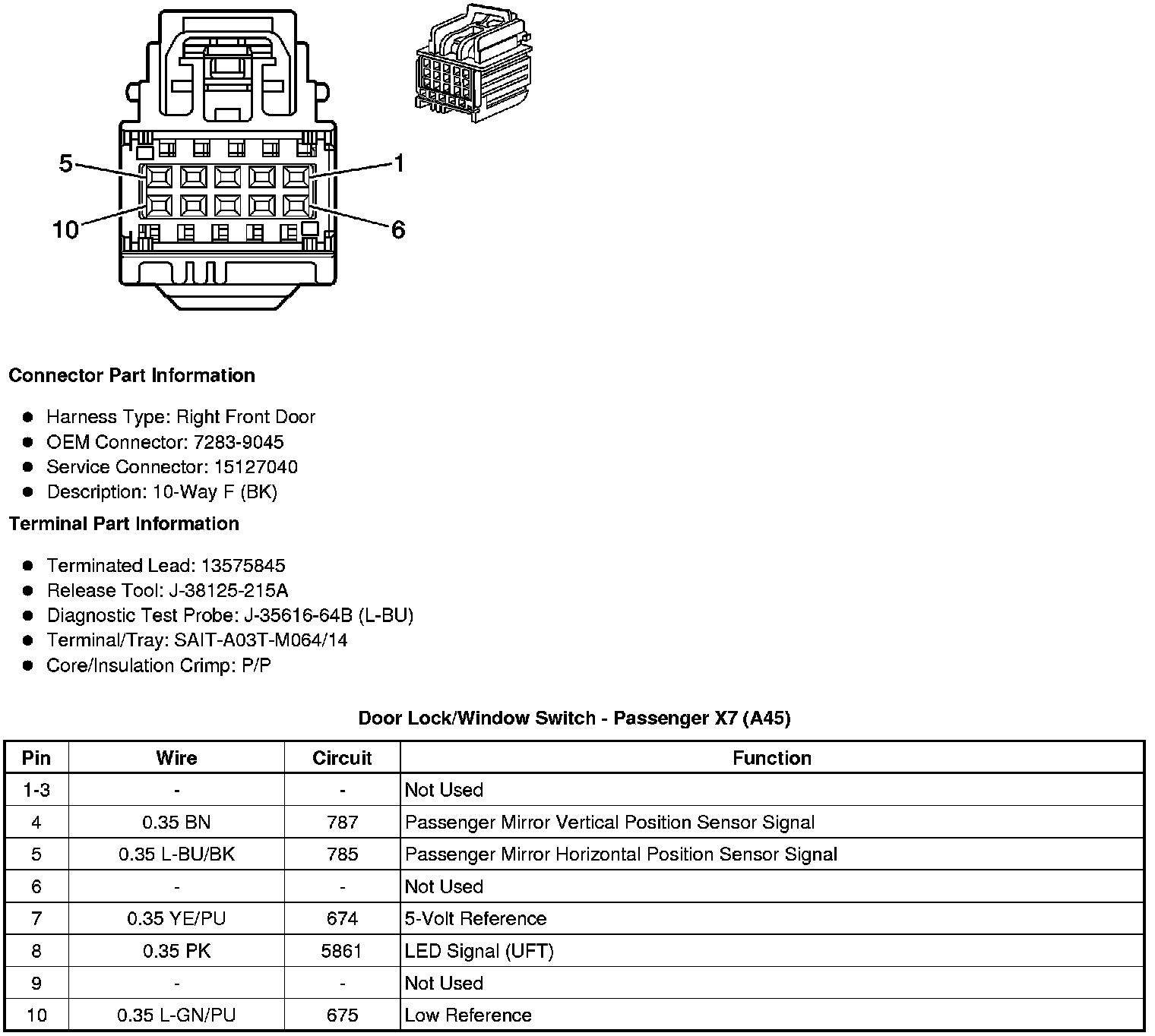

Door Lock/Window Switch - Passenger X7 (A45)

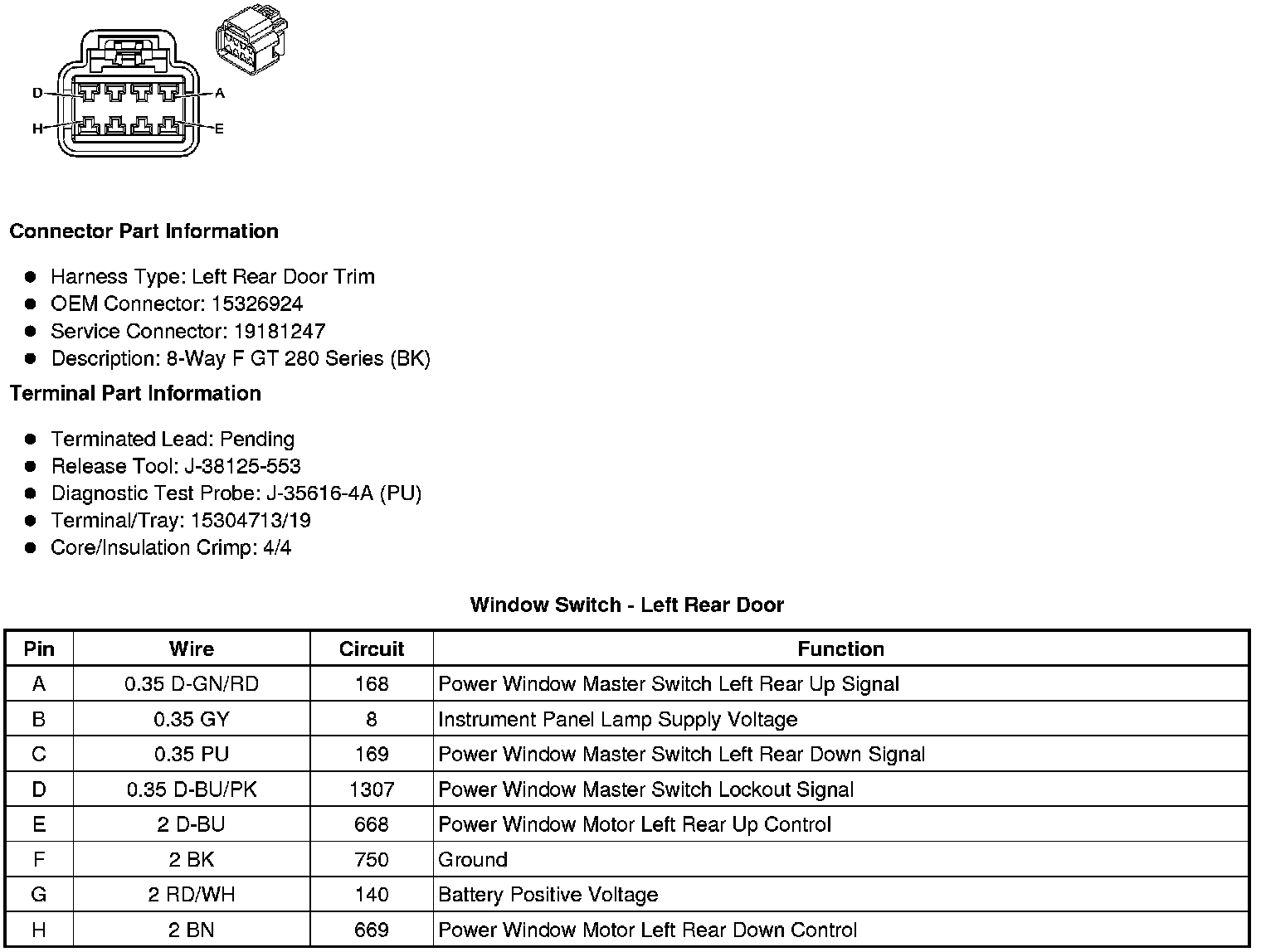

Window Switch - Left Rear Door

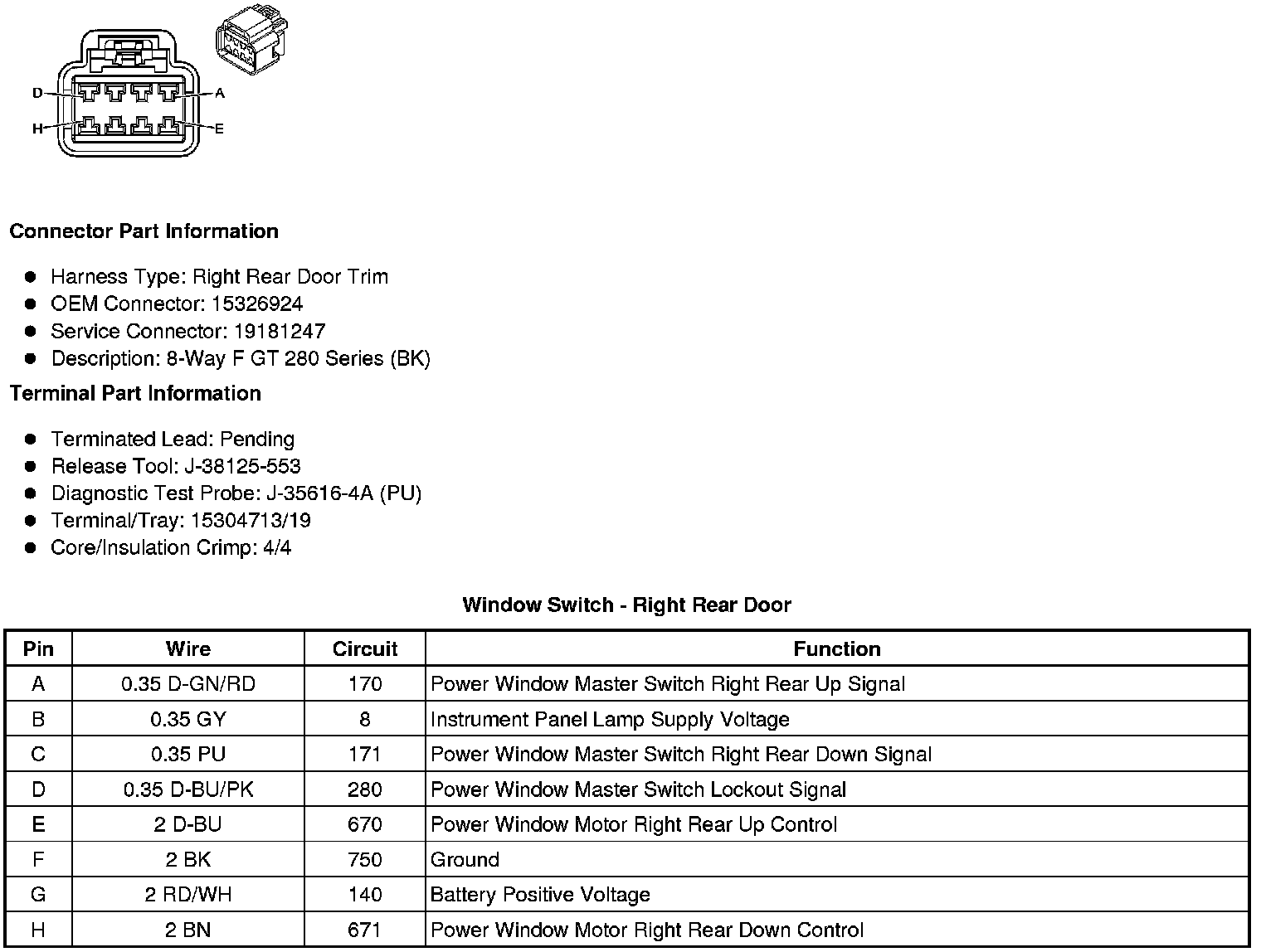

Window Switch - Right Rear Door
