Driver Door Components

Door Component Views

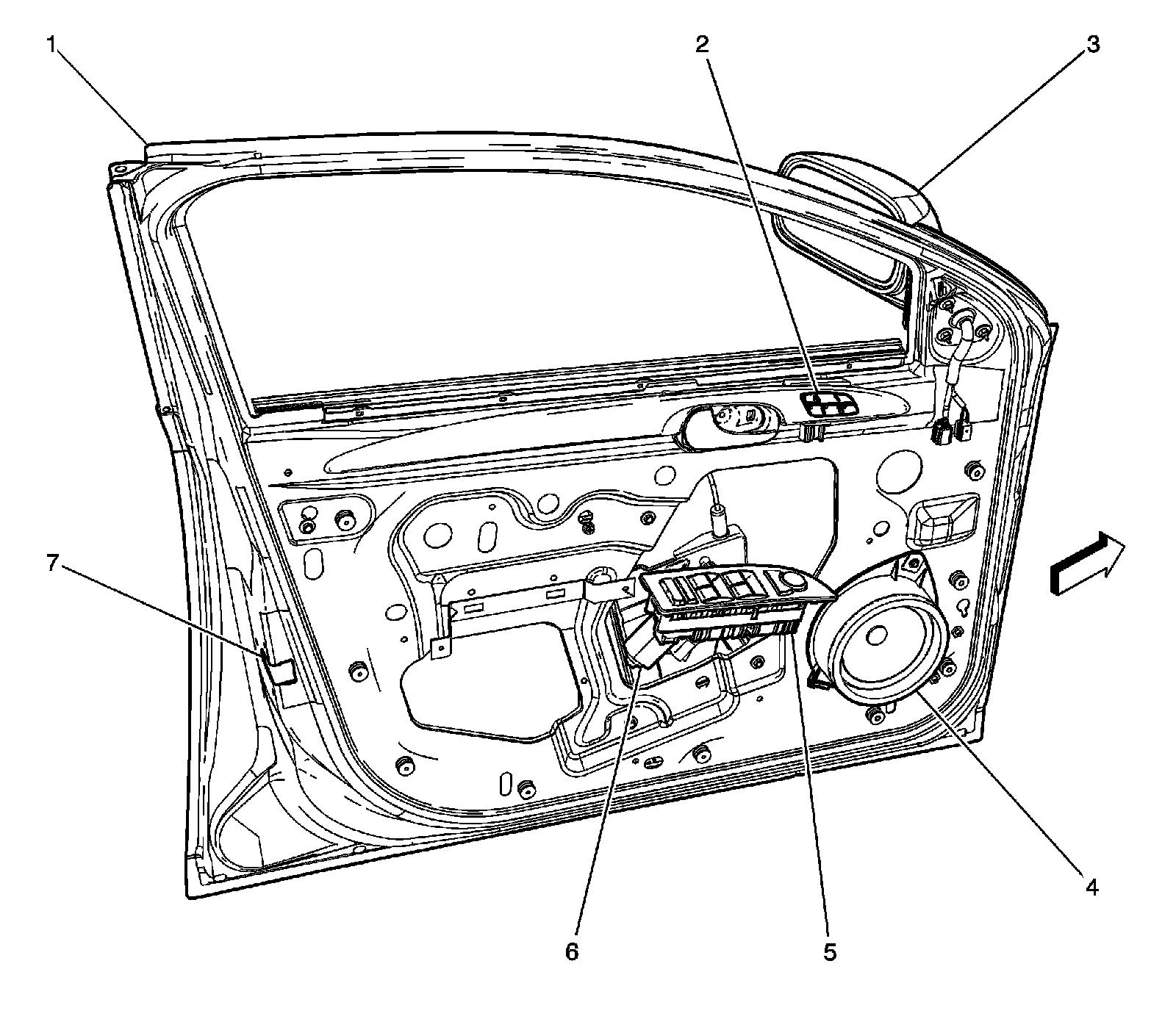

Driver Door Components




1 - Door Frame
2 - Heated and Cooled Seat Switch - Driver (KA1/KB6 or Memory A45)
3 - Outside Rearview Mirror - Driver
4 - Speaker - Left Front Door
5 - Door Lock/Window Switch - Driver
6 - Window Motor - Driver
7 - Door Latch Assembly - Driver
