Shift Indicator - A/T

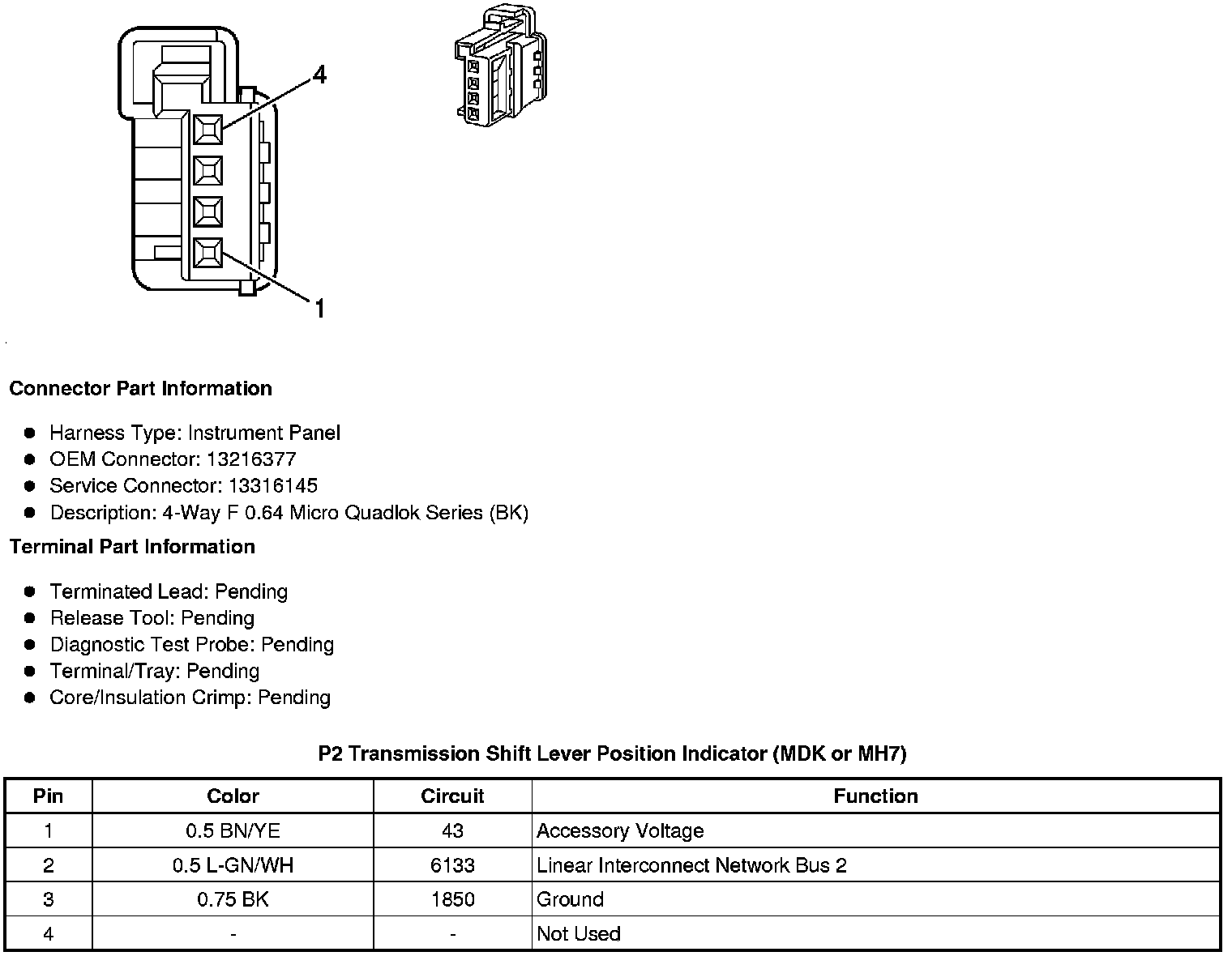

Component Connector End Views

P2 Transmission Shift Lever Position Indicator (MDK or MH7)
