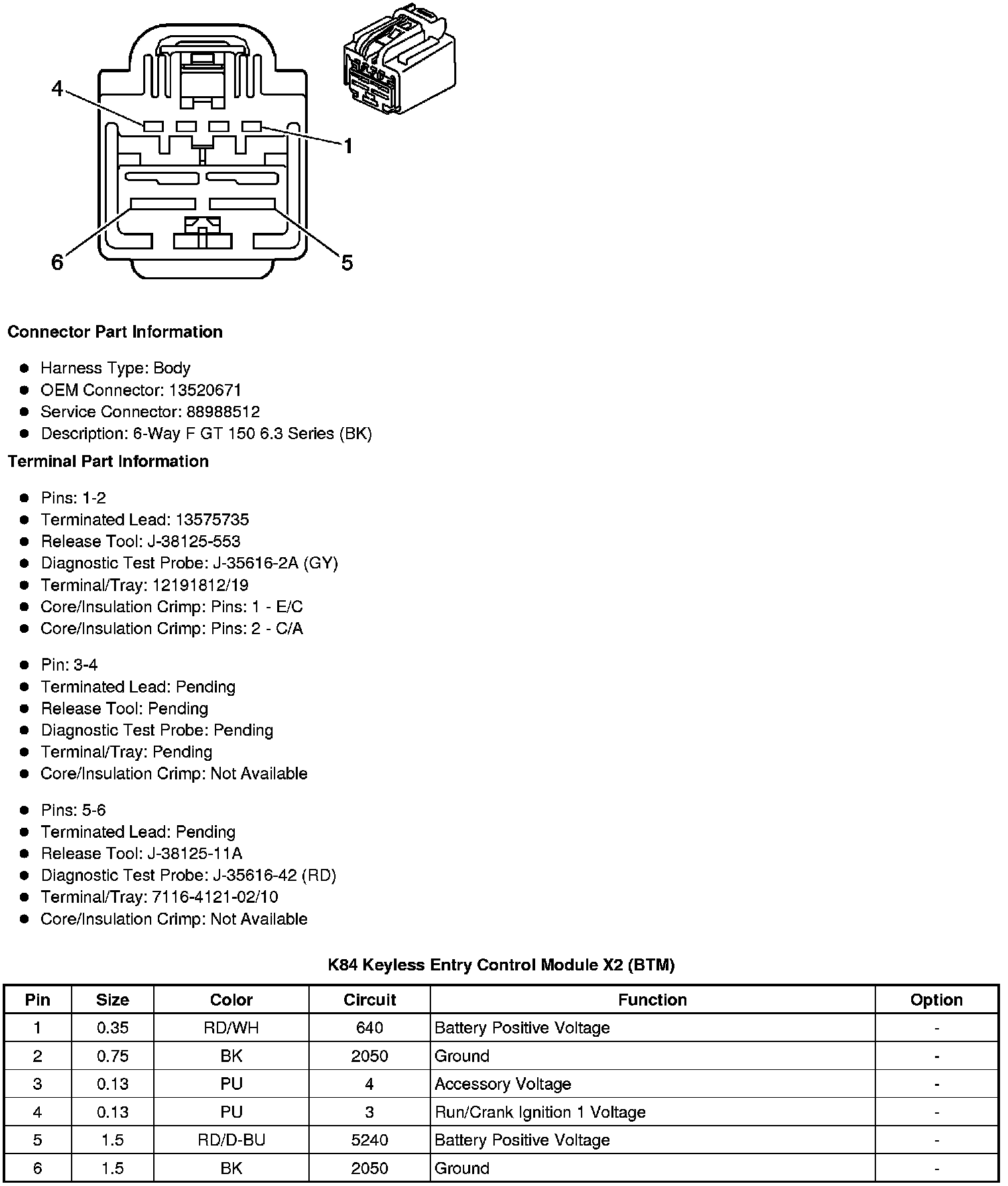

Keyless Entry Control Module X2 (BTM)
Component Connector End Views
K84 Keyless Entry
Control Module
X2 (BTM)
