Rear Object Sensor - Right Middle (UD7)

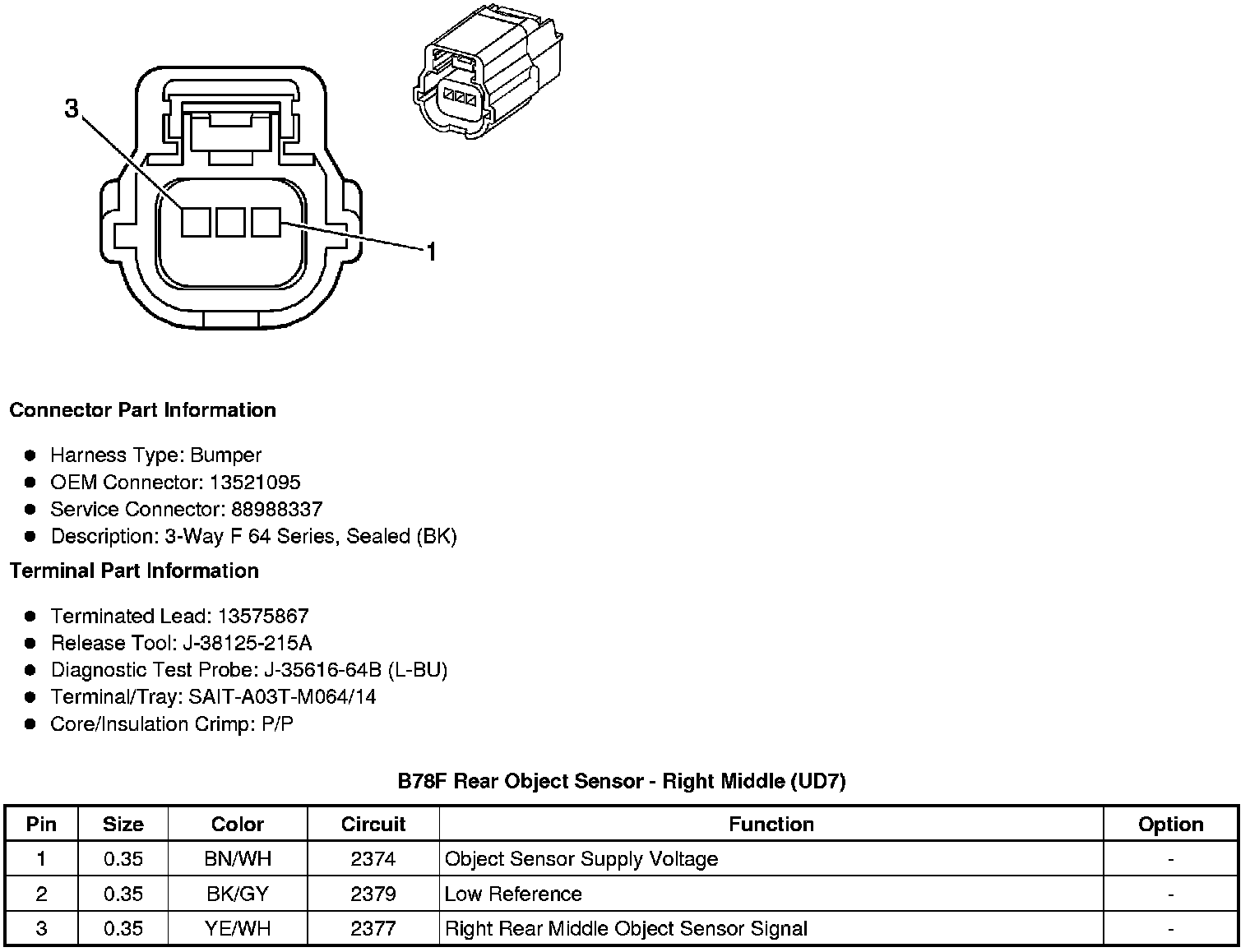

Component Connector End Views

B78F Rear Object Sensor - Right Middle (UD7)
