Keyless Entry Transmitter




Remote Function Schematics

Module Power, Ground, Data Communication, and Controls

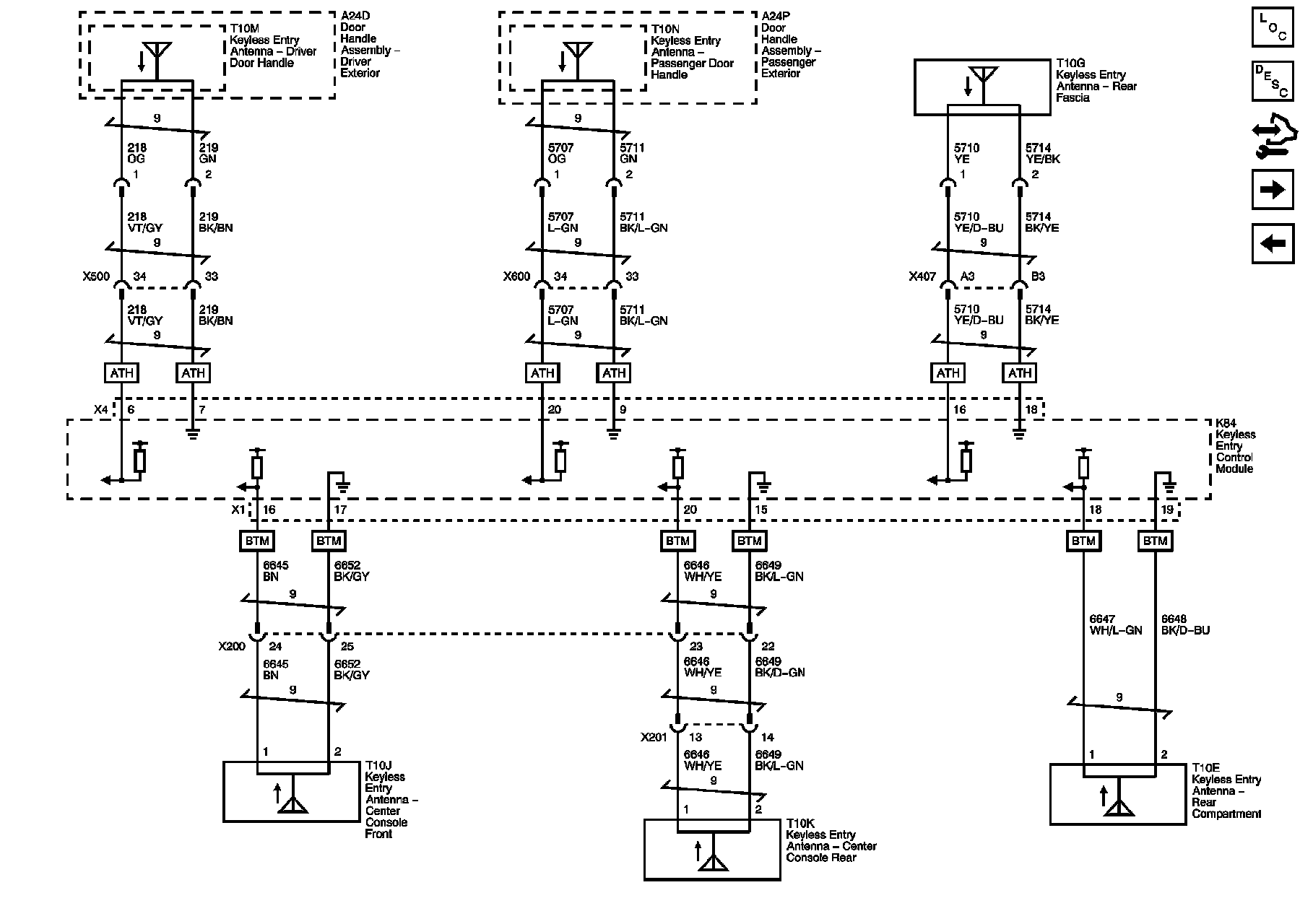

Passive Entry, Passive Start Antenna





Garage Door Opener





References
