Passive Entry, Passive Start Antenna

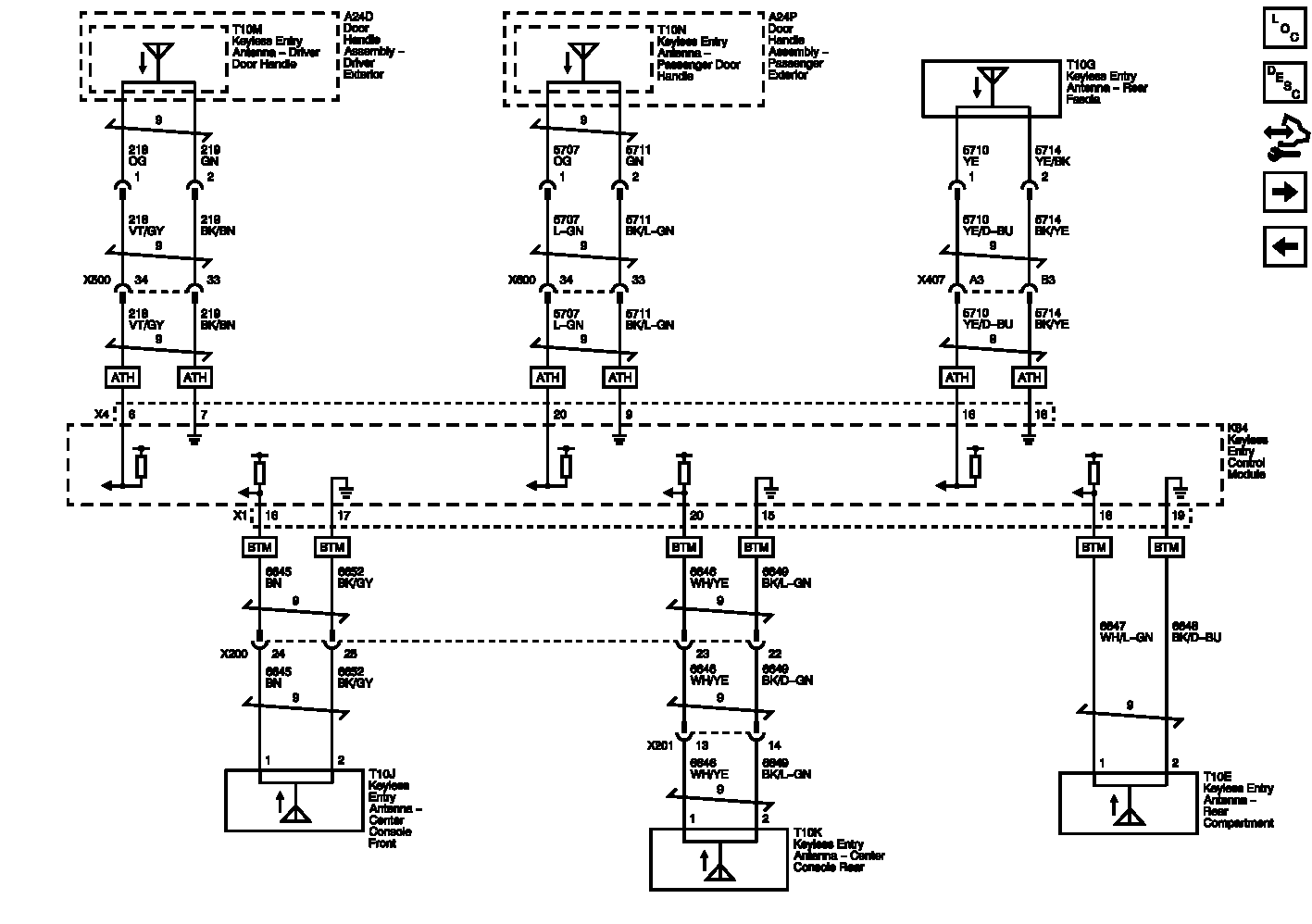

Fig 1: Passive Entry, Passive Start Antenna Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
