Electronic Compass Module Replacement

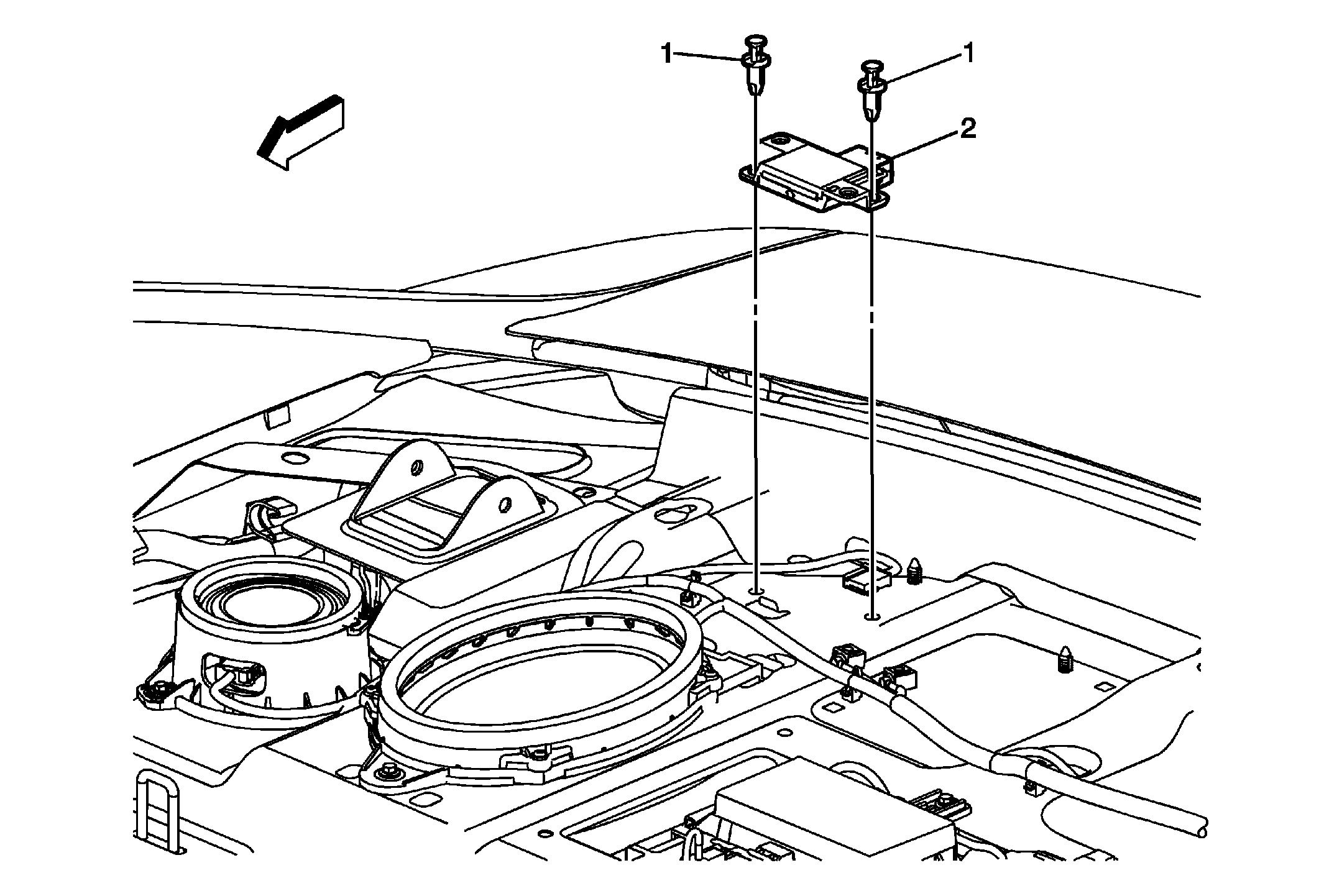

Fig 1: Electronic Compass Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (with DB3) , Rear Window Panel Trim Replacement (without DB3) , Rear Window Panel Trim Replacement (With HP6) .
1	Electronic Compass Module Retainer (Qty: 2)
2	Electronic Compass Module Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .

Callout

Component Name

Electronic Compass Module Retainer (Qty: 2)

Electronic Compass Module

Procedure
