Front Side Door Window Regulator Motor Replacement

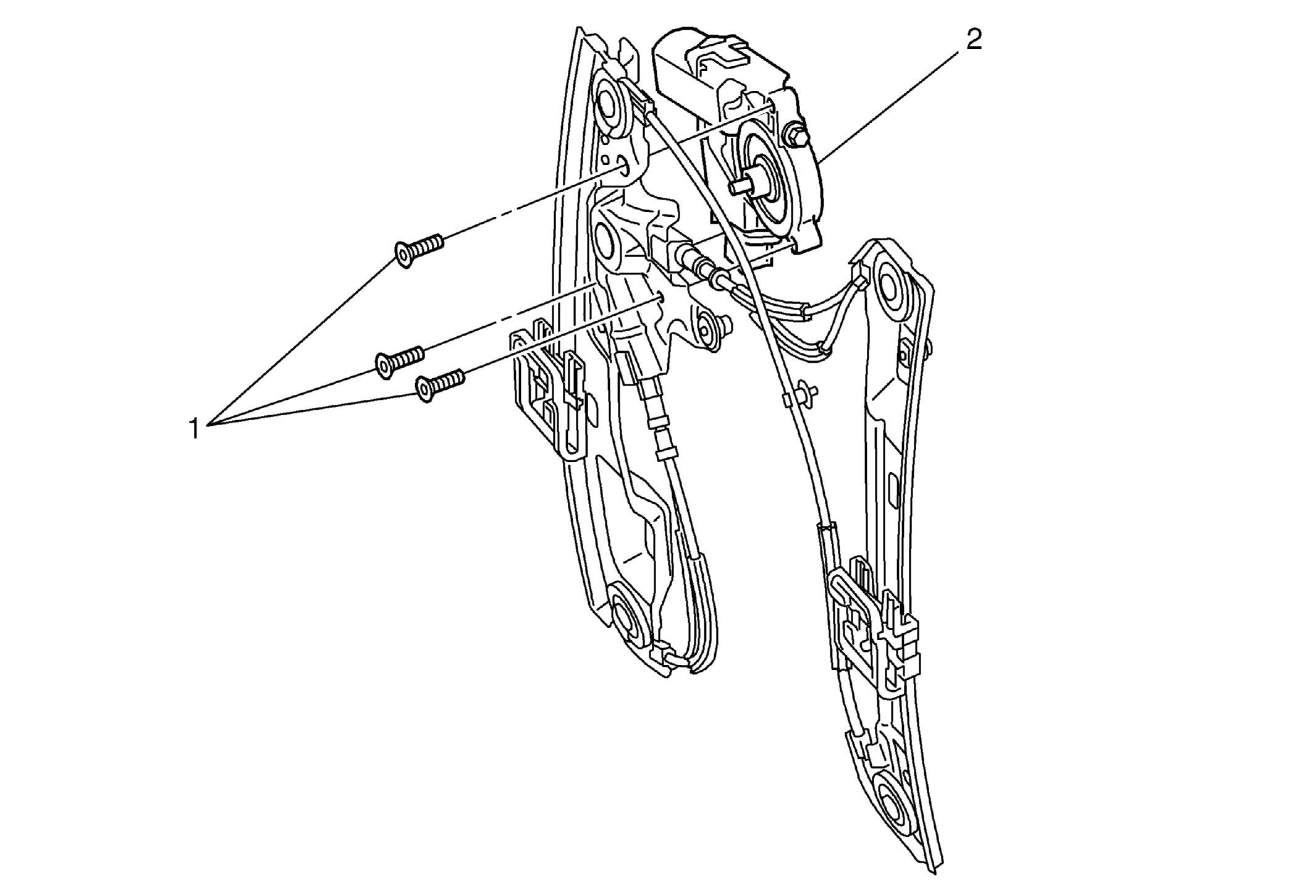

Fig 1: Front Side Door Window Regulator Motor
GM2019720Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor Replacement

Callout Component Name
Preliminary Procedure
Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1 Front Side Door Window Regulator Motor Fasteners (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Front Side Door Window Regulator Motor
Procedure
Inspect the door window for proper operation before installing the door trim panel.
