Front Side Door Window Switch Replacement

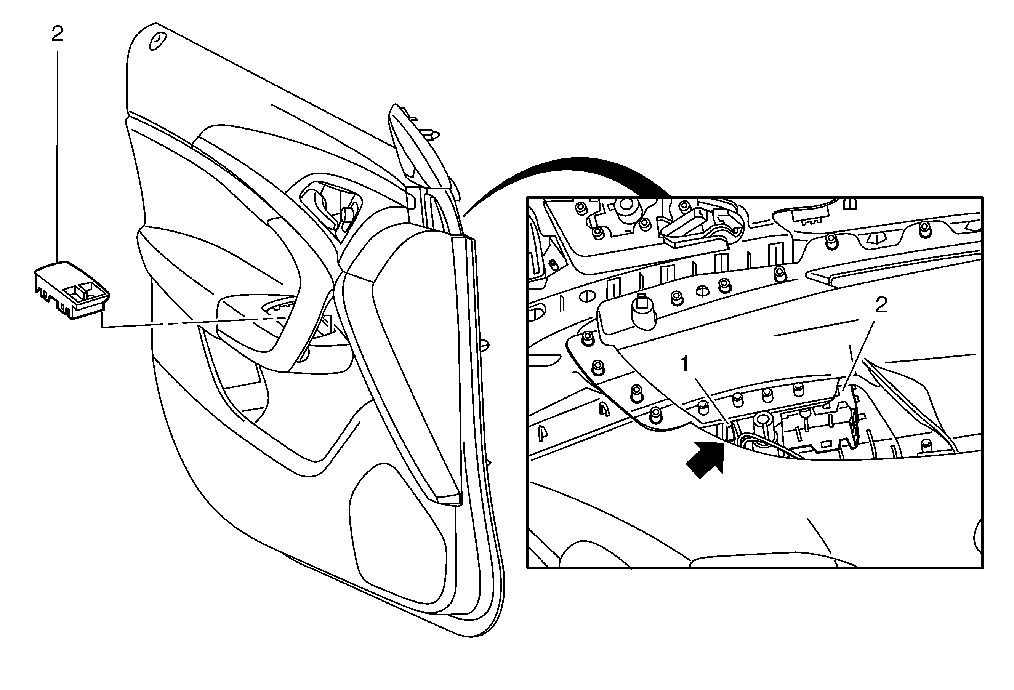

Fig 1: Front Side Door Window Switch Bezel
GM2194421Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Front Side Door Window Switch Retainer
TIP:  Use a small flat-bladed tool to release the retainer from the rear side of the front side door trim panel.
2 Front Side Door Window Switch
