Front Compartment Splash Shield Replacement

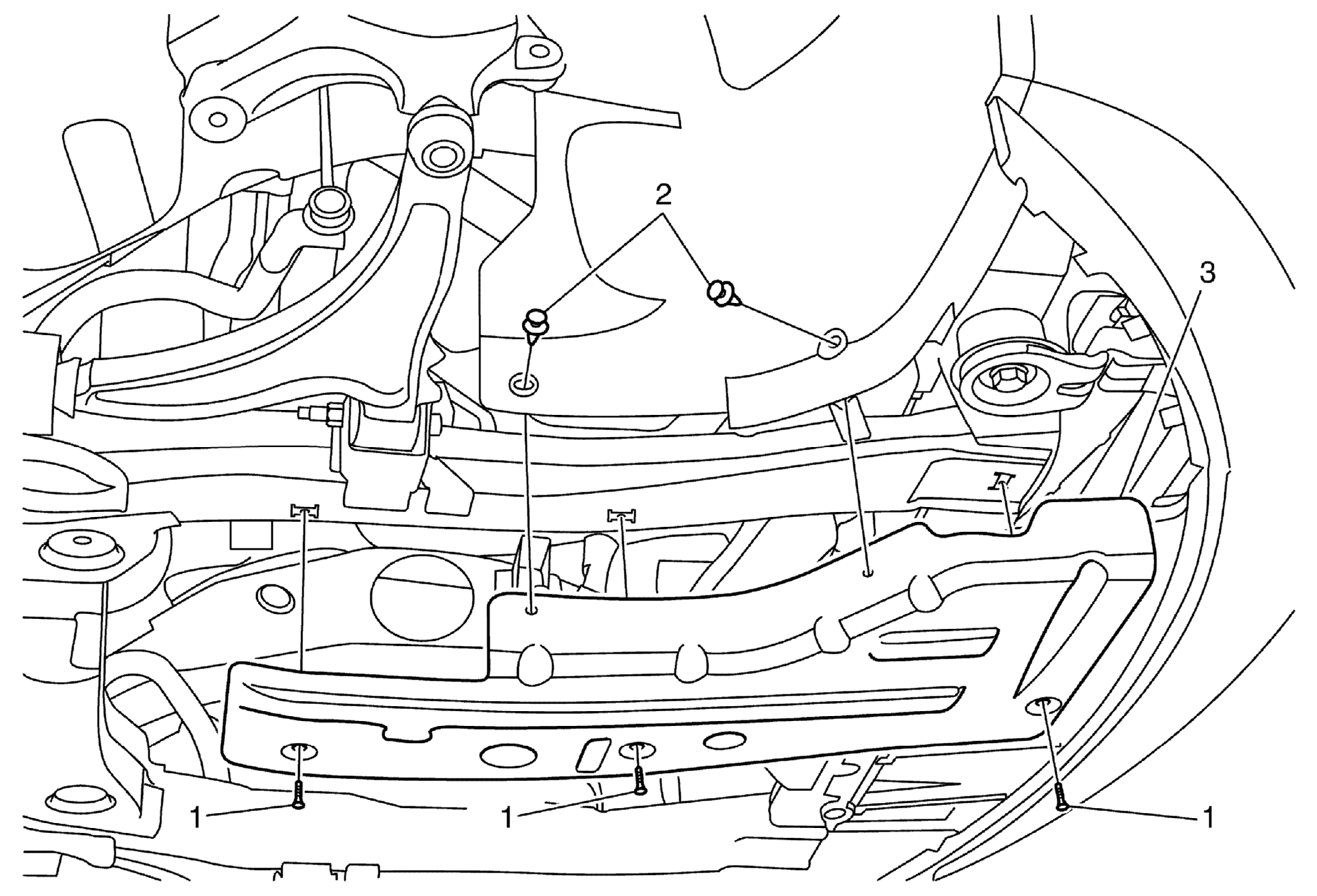

Fig 1: Front Compartment Splash Shield
GM2019755Courtesy of GENERAL MOTORS COMPANY
Front Compartment Splash Shield Replacement

Callout Component Name
Preliminary Procedures
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1 Front Compartment Splash Shield Fastener (Qty 3)
CAUTION:

Refer to Fastener Caution .
2 Front Compartment Splash Shield Retainer (Qty 2)
3 Front Compartment Splash Shield
