Outside Rearview Mirror Glass Replacement

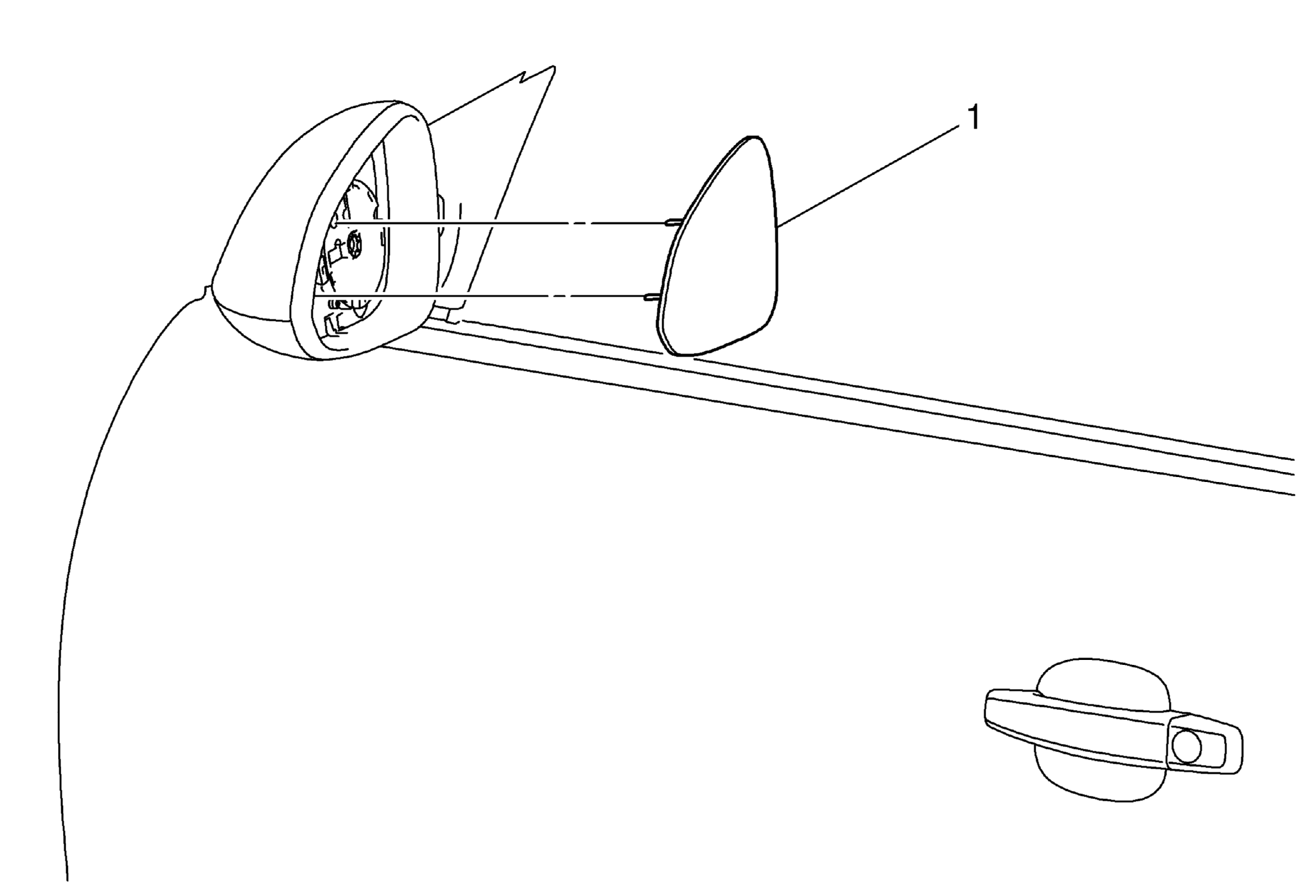

Fig 1: Outside Rearview Mirror Glass
GM2019620Courtesy of GENERAL MOTORS COMPANY
Outside Rearview Mirror Glass Replacement

Callout Component Name
1 Outside Rearview Mirror Glass
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Procedure

  1. Release the outside rearview mirror glass backing from the mirror housing by pulling outward.
  2. Disconnect the power wire harness electrical connector.
