Outside Remote Control Rearview Mirror Switch Replacement

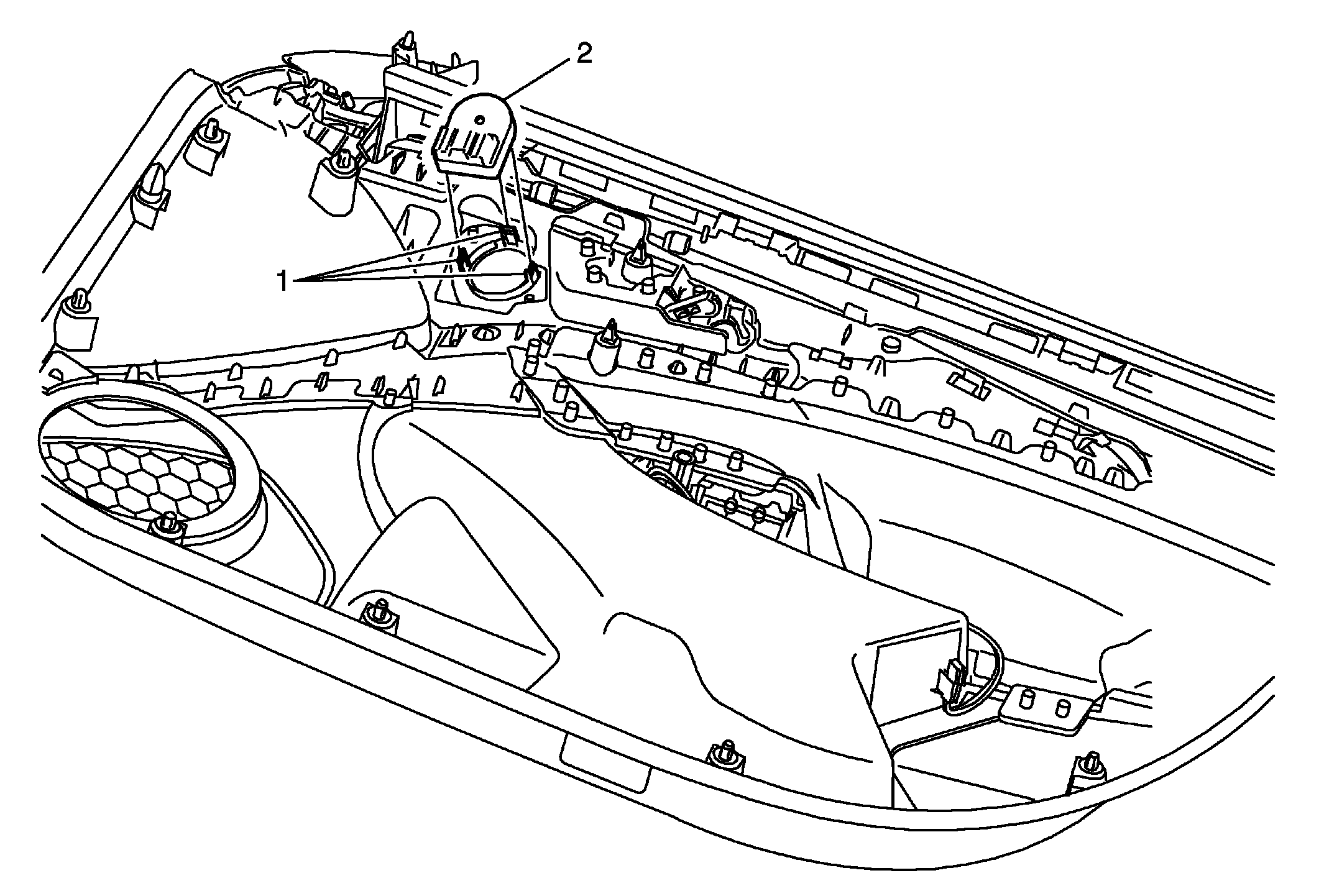

Fig 1: Outside Remote Control Rearview Mirror Switch

Courtesy of GENERAL MOTORS COMPANY

Outside Remote Control Rearview Mirror Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Outside Remote Control Rearview Mirror Switch Retainer (Qty: 3) TIP:  Use a small flat-bladed tool to release the outside remote control rearview mirror switch.
2	Outside Remote Control Rearview Mirror Switch
