Fuel Feed Intermediate Pipe Replacement
Courtesy of GENERAL MOTORS COMPANY Fuel Feed Intermediate Pipe Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Relieve the system pressure. Refer to Fuel Pressure Relief .
- Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement .
|

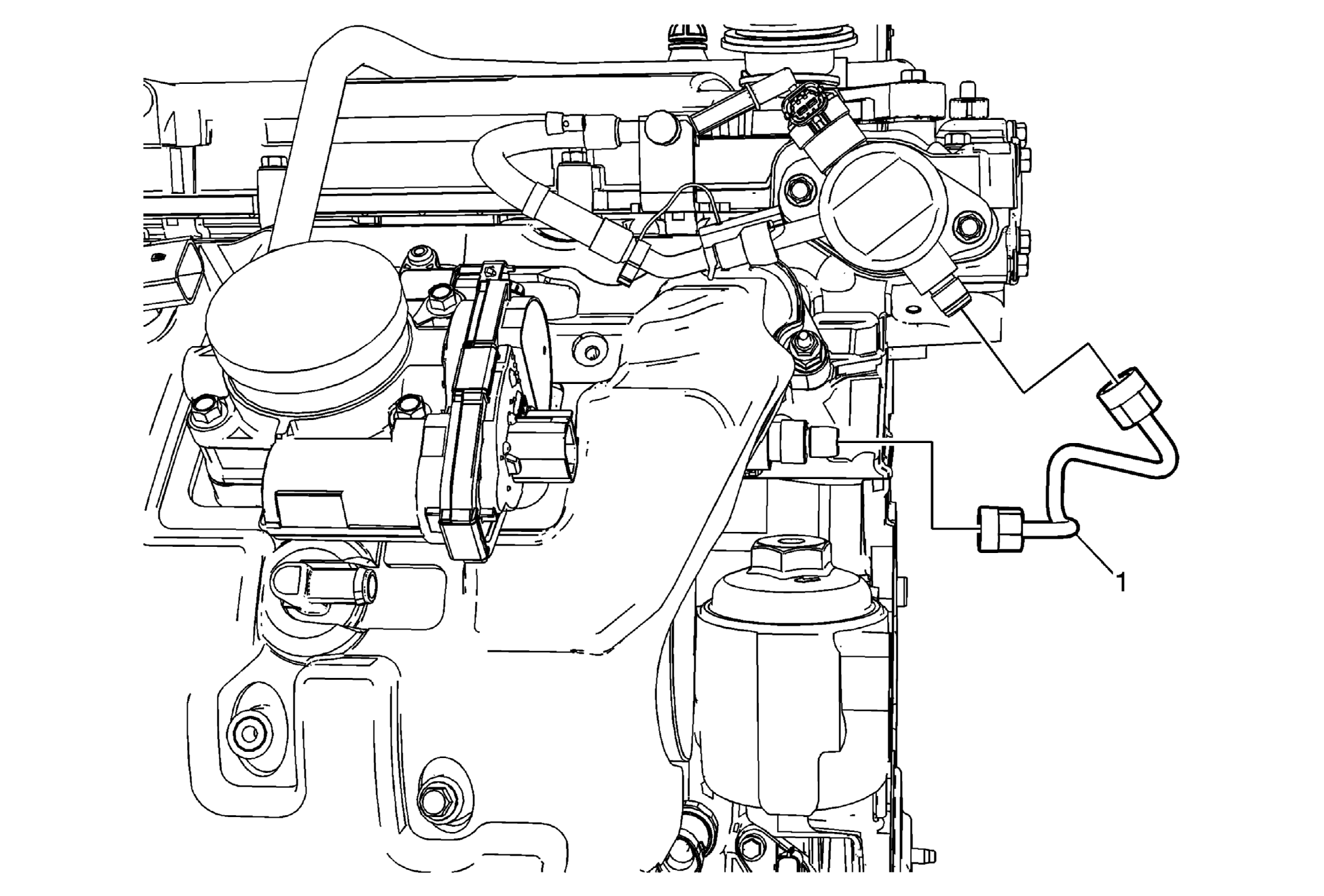

| 1 |
Fuel Feed Intermediate Pipe
Procedure
- DISCARD the pipe when removed, and install a NEW pipe.
- Lubricate the pipes with silicon free engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers
.
- Pressurize the fuel system and inspect for leaks.
Tighten
30 N.m (22 lb ft) |
