Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

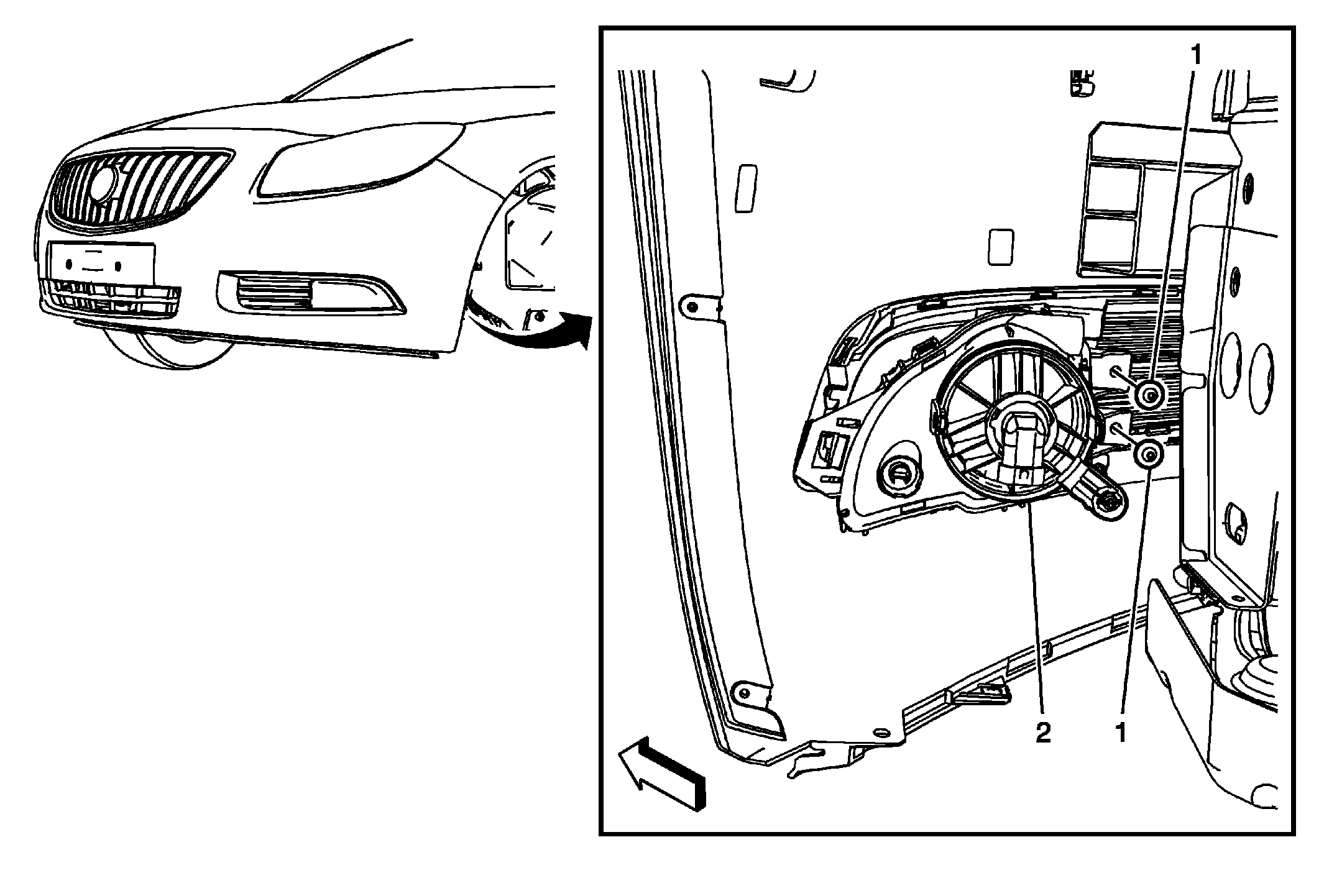

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement . Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
1	Front Fog Lamp Screw (Qty: 2)
2	Front Fog Lamp Package Procedure Release the front bumper fascia tab from the fog lamp assembly. Replace the fog lamp as an assembly. Aim the front fog lamps after installation. Refer to Fog Lamp Aiming .

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .

Front Fog Lamp Screw (Qty: 2)

Front Fog Lamp Package

Procedure

Release the front bumper fascia tab from the fog lamp assembly.
Replace the fog lamp as an assembly.
Aim the front fog lamps after installation. Refer to Fog Lamp Aiming .
