Headlamp Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

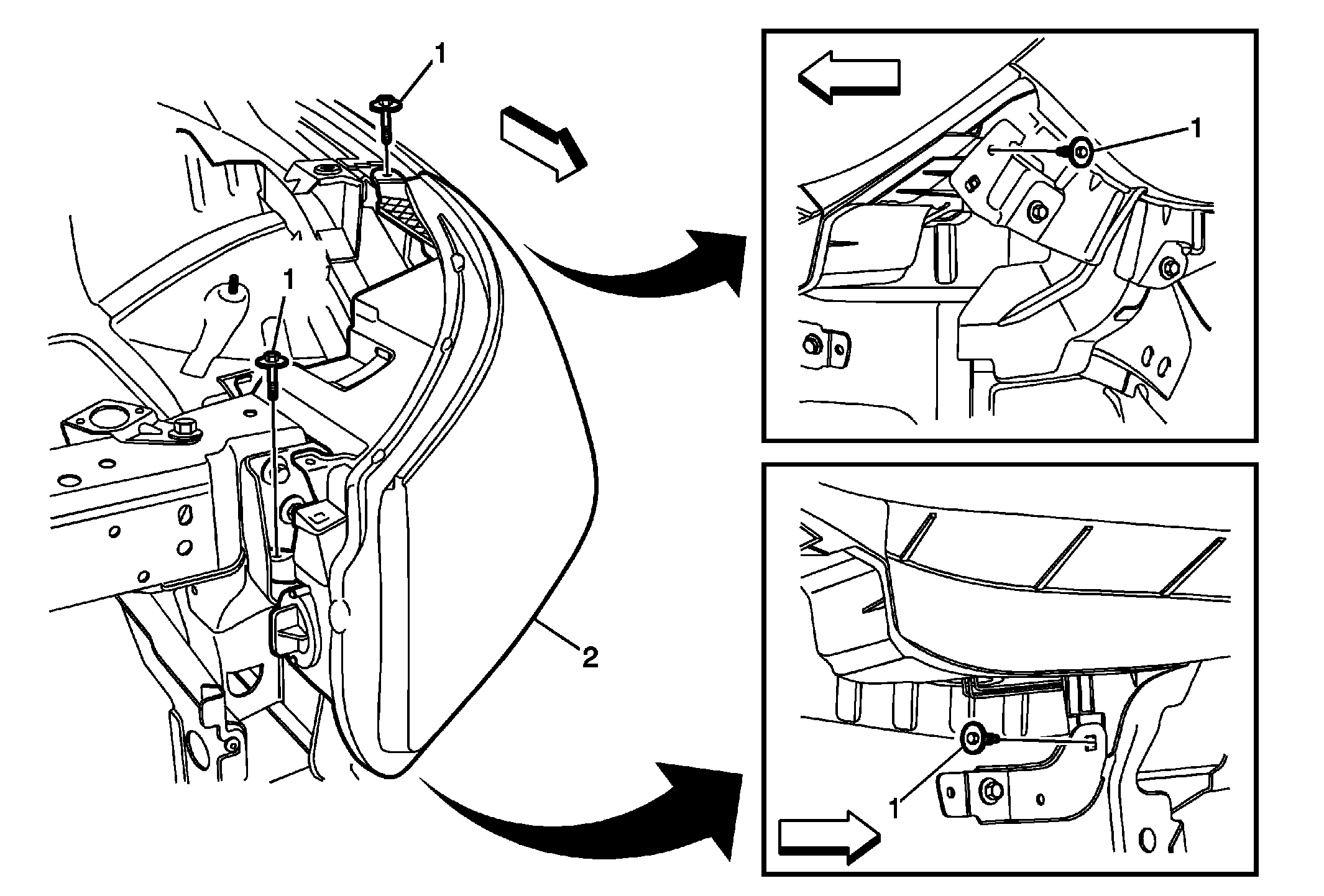

Fig 1: Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the front bumper fascia support. Refer to Front Bumper Fascia Support Replacement (Left Side) or Front Bumper Fascia Support Replacement (Right Side) .
1	Headlamp Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Headlamp Assembly (W/Front Side Marker and Park and Turn Signal Lamp) WARNING: Refer to Halogen Bulb Warning . Procedure Pull the headlamp assembly forward in order to access and disconnect the forward lamp harness electrical connector from the headlamp jumper harness connector. Remove the headlamp bulb accessory covers. Transfer the headlamp bulbs as needed. Aim the headlamps after the headlamps have been re-installed. Refer to Headlamp Aiming .

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the front bumper fascia support. Refer to Front Bumper Fascia Support Replacement (Left Side) or Front Bumper Fascia Support Replacement (Right Side) .

Headlamp Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Headlamp Assembly (W/Front Side Marker and Park and Turn Signal Lamp)

WARNING: Refer to Halogen Bulb Warning .

Procedure

Pull the headlamp assembly forward in order to access and disconnect the forward lamp harness electrical connector from the headlamp jumper harness connector.
Remove the headlamp bulb accessory covers.
Transfer the headlamp bulbs as needed.
Aim the headlamps after the headlamps have been re-installed. Refer to Headlamp Aiming .
