Theft Deterrent Module Replacement (With BTM)

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

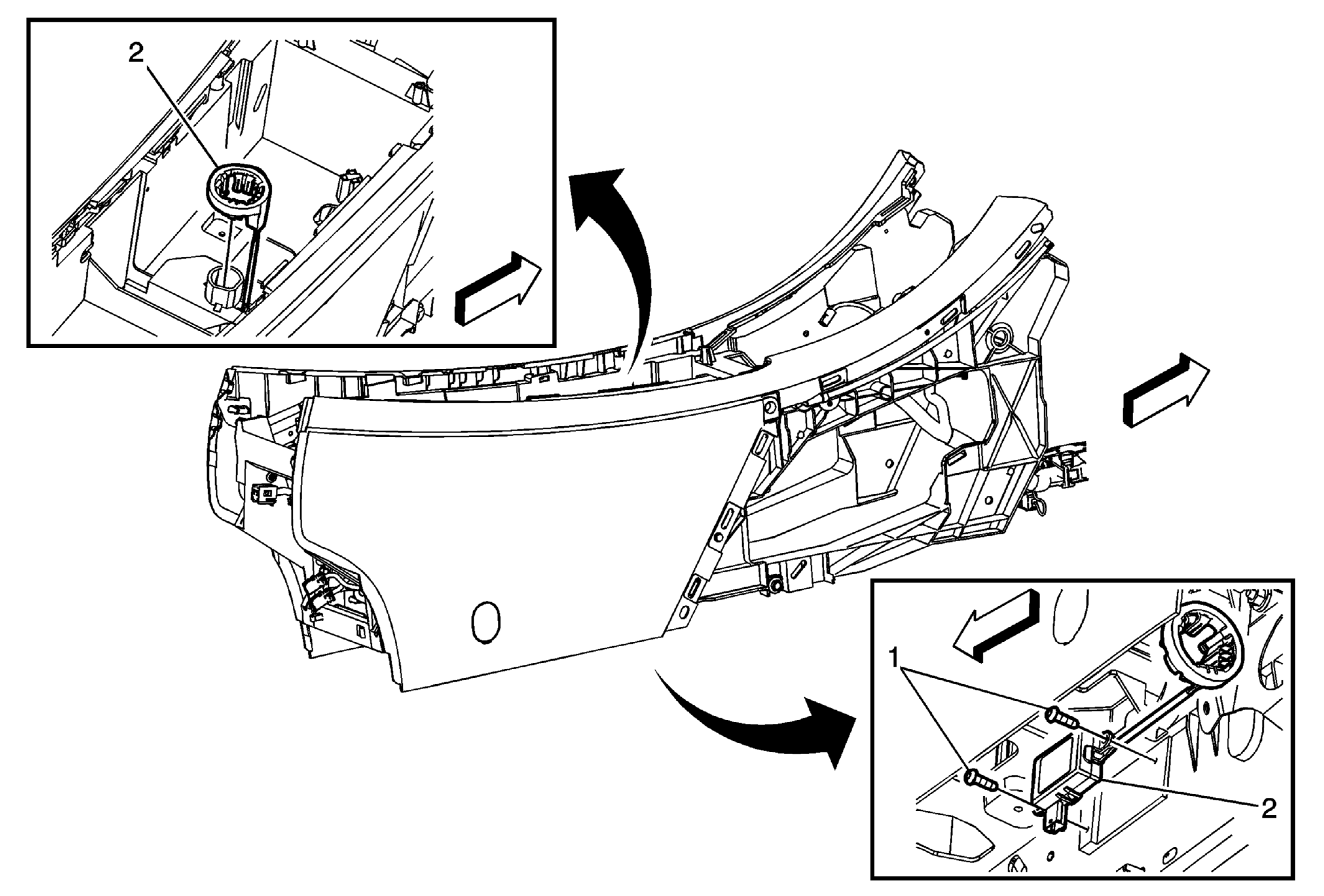

Fig 1: Theft Deterrent Module & Fasteners (With BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front floor console cup holder. Refer to Front Floor Console Cup Holder Replacement .
1	Theft Deterrent Module Fastener (Qty: 2)
2	Theft Deterrent Module Assembly Procedure Disconnect the electrical connector. Program the theft deterrent control module after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the front floor console cup holder. Refer to Front Floor Console Cup Holder Replacement .

Theft Deterrent Module Fastener (Qty: 2)

Theft Deterrent Module Assembly

Procedure

Disconnect the electrical connector.
Program the theft deterrent control module after replacement. Refer to Control Module References .
