Theft Deterrent Module Replacement (Without BTM)

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

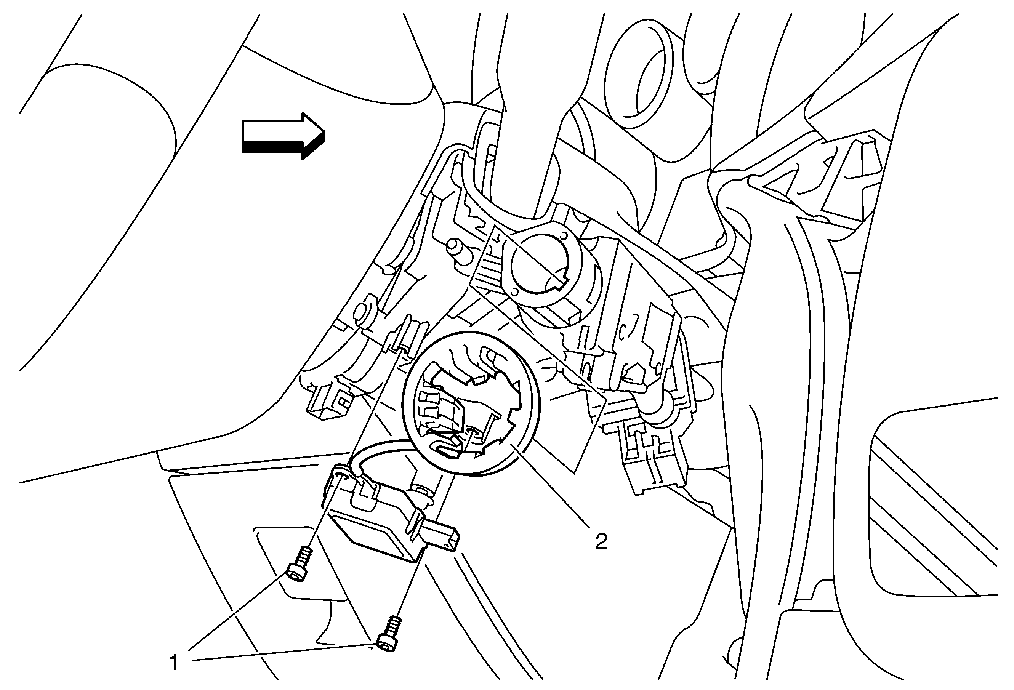

Fig 1: Theft Deterrent Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the lower steering column trim cover. Refer to Steering Column Trim Cover Replacement .
1	Theft Deterrent Module Fastener (Qty: 2) Procedure Disconnect the electrical connector.
2	Theft Deterrent Module Procedure Release the theft deterrent module from the ignition switch.
