Hazard Warning Switch Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

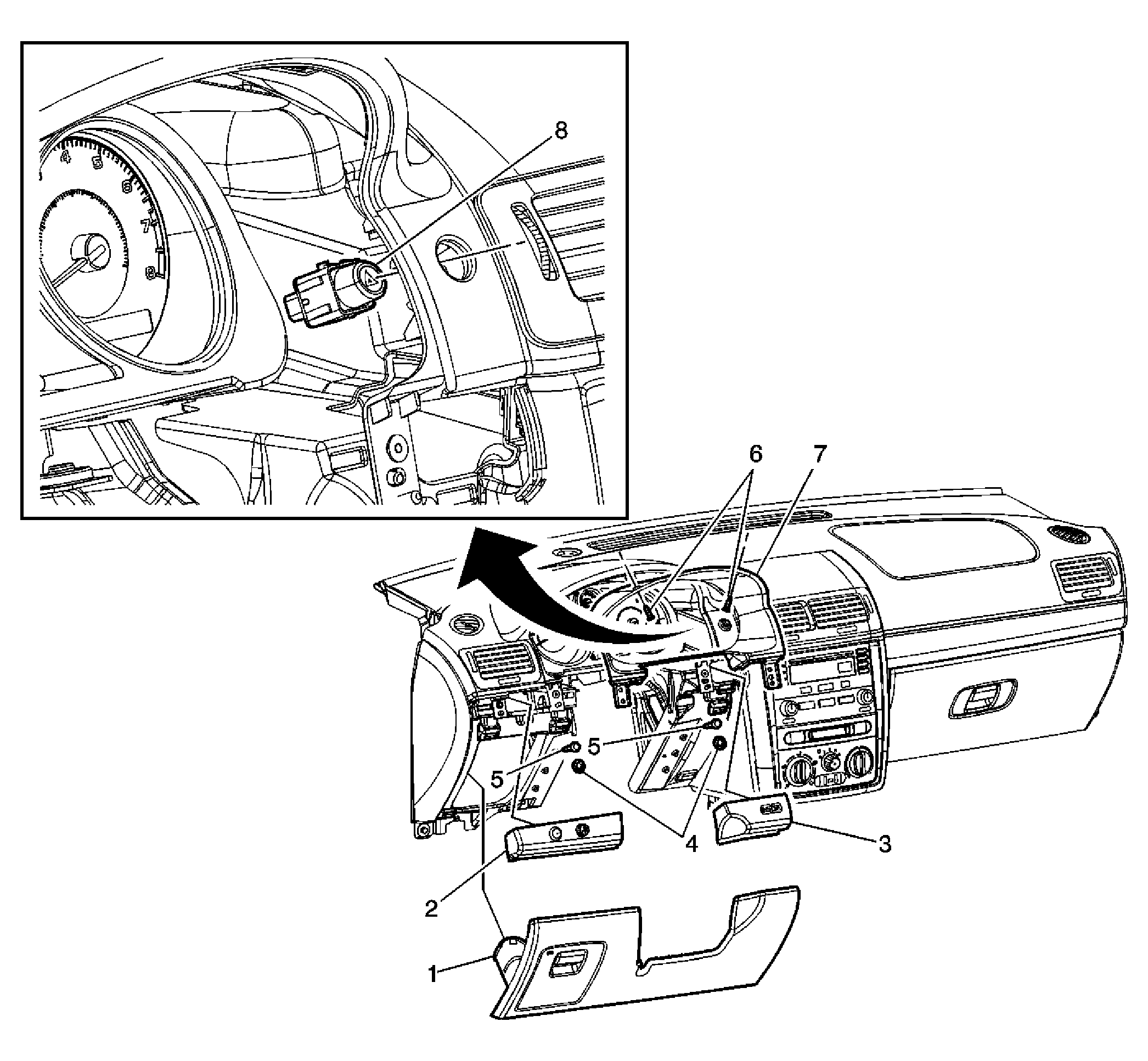

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Steering Column Opening Filler Refer to Steering Column Opening Filler Replacement . |
| 2 | Instrument Panel Trim Plate |
| 3 | Instrument Panel Trim Plate |
| 4 | Instrument Panel Cluster Trim Plate Retainer |
| 5 | Instrument Panel Cluster Trim Plate Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 6 | Instrument Panel Cluster Trim Plate Screw Tighten: 2.2 N.m (19 lb in) |
| 7 | Instrument Panel Cluster Trim Plate |
| 8 | Hazard Warning Switch Tip: Disconnect the electrical connector. |
