Turn Signal Switch Bracket Replacement

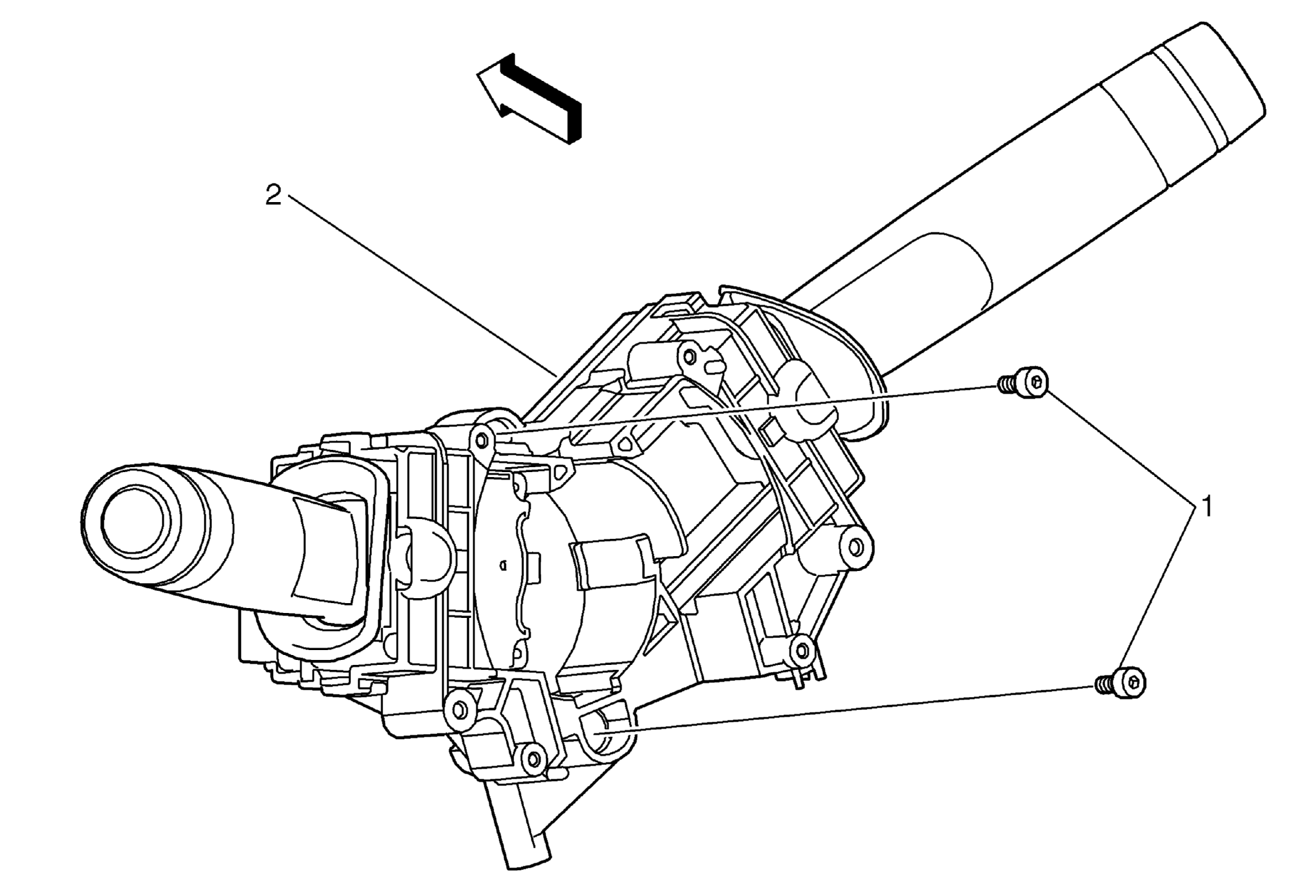

Fig 1: Turn Signal Switch Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Airbag Coil Replacement .
1	Turn Signal Switch Bracket Fastener (Qty: 2)
2	Turn Signal Switch Bracket Procedure Disconnect any electrical connectors as needed. Transfer any parts as needed.

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Airbag Coil Replacement .

Turn Signal Switch Bracket Fastener (Qty: 2)

Turn Signal Switch Bracket

Procedure
