Camshaft Position Sensor - Intake

Powertrain Component Views

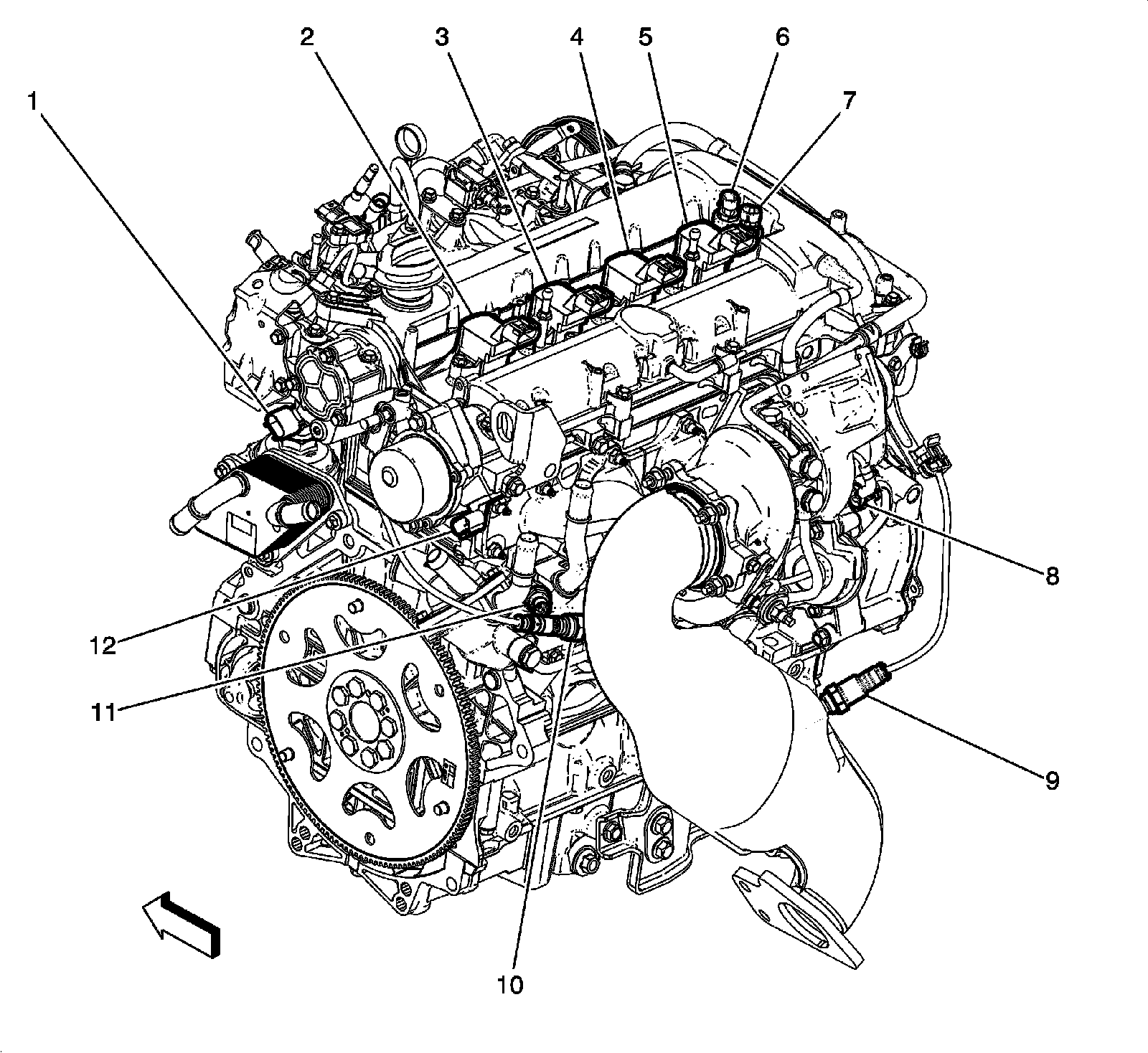

Left Rear of Engine Components (LHU)





1 - B23F Camshaft Position Sensor - Intake

2 - T8A Ignition Coil 1

3 - T8B Ignition Coil 2

4 - T8C Ignition Coil 3

5 - T8D Ignition Coil 4

6 - Q6F Camshaft Position Actuator Solenoid Valve - Intake

7 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust

8 - Q42 Turbocharger Wastegate Solenoid Valve

9 - B52B Heated Oxygen Sensor 2

10 - B52A Heated Oxygen Sensor 1

11 - B34 Engine Coolant Temperature Sensor

12 - B23E Camshaft Position Sensor - Exhaust
