Automatic Transmission/Transaxle

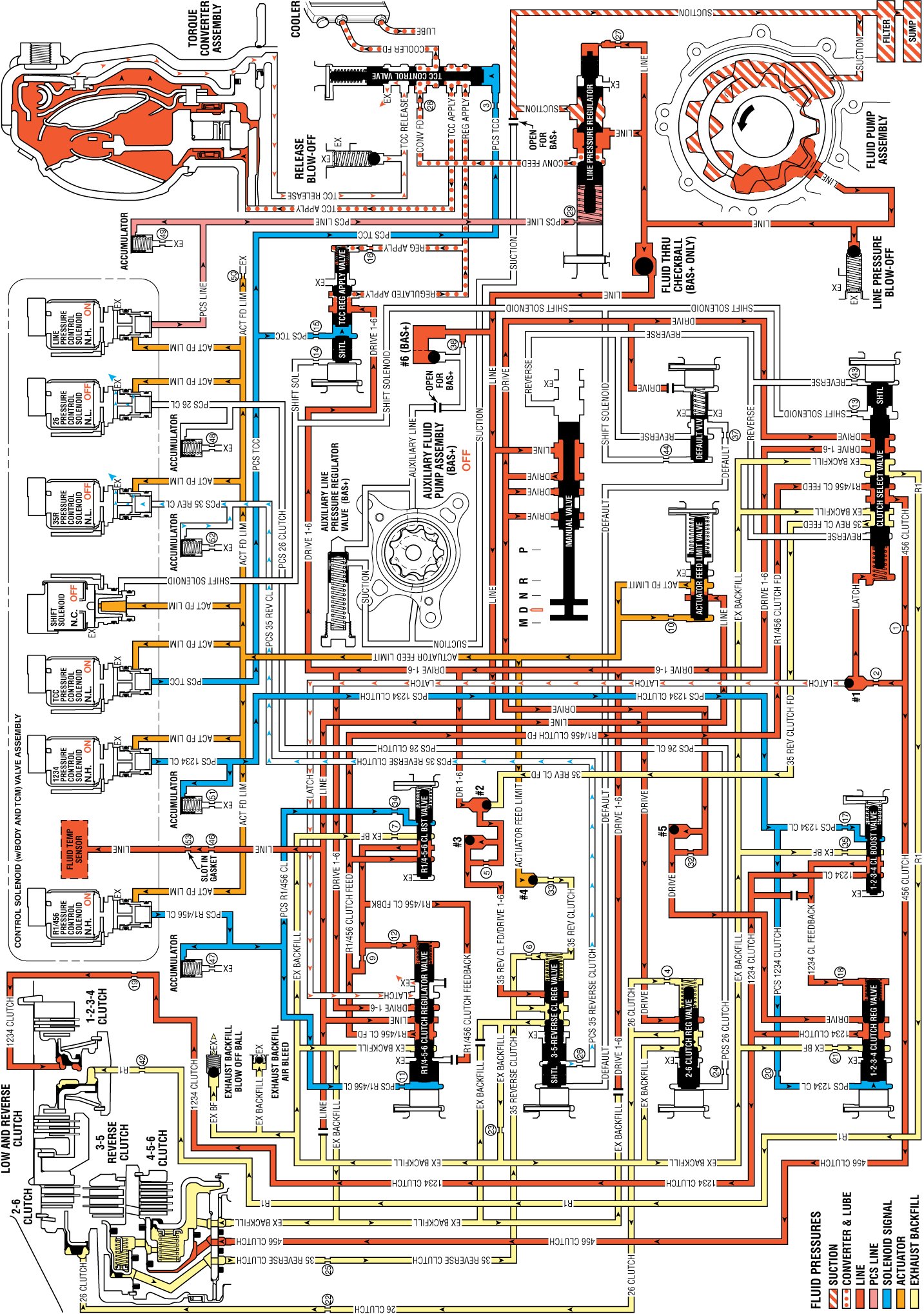

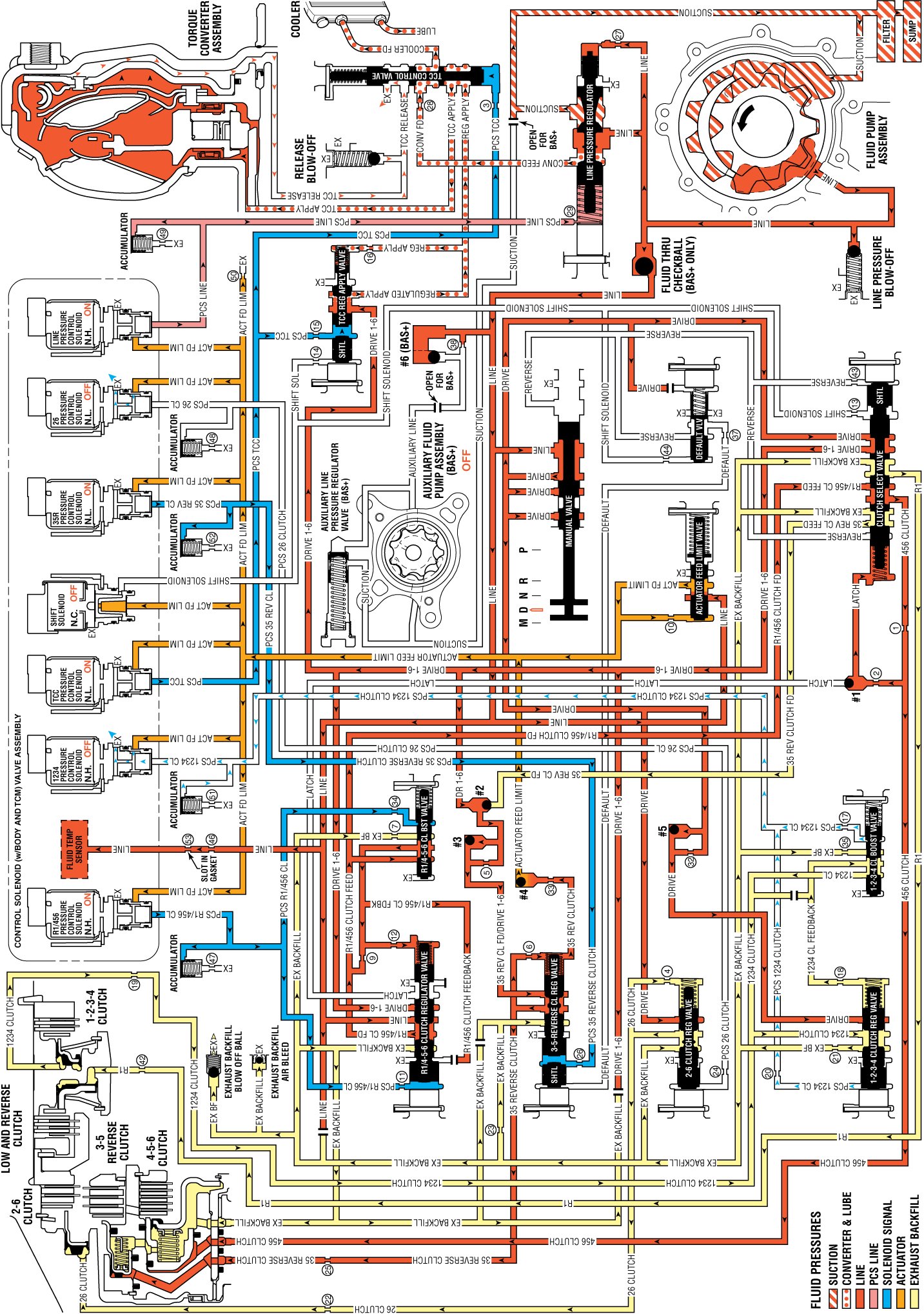

Park - Engine Running - Gen 2/Hybrid

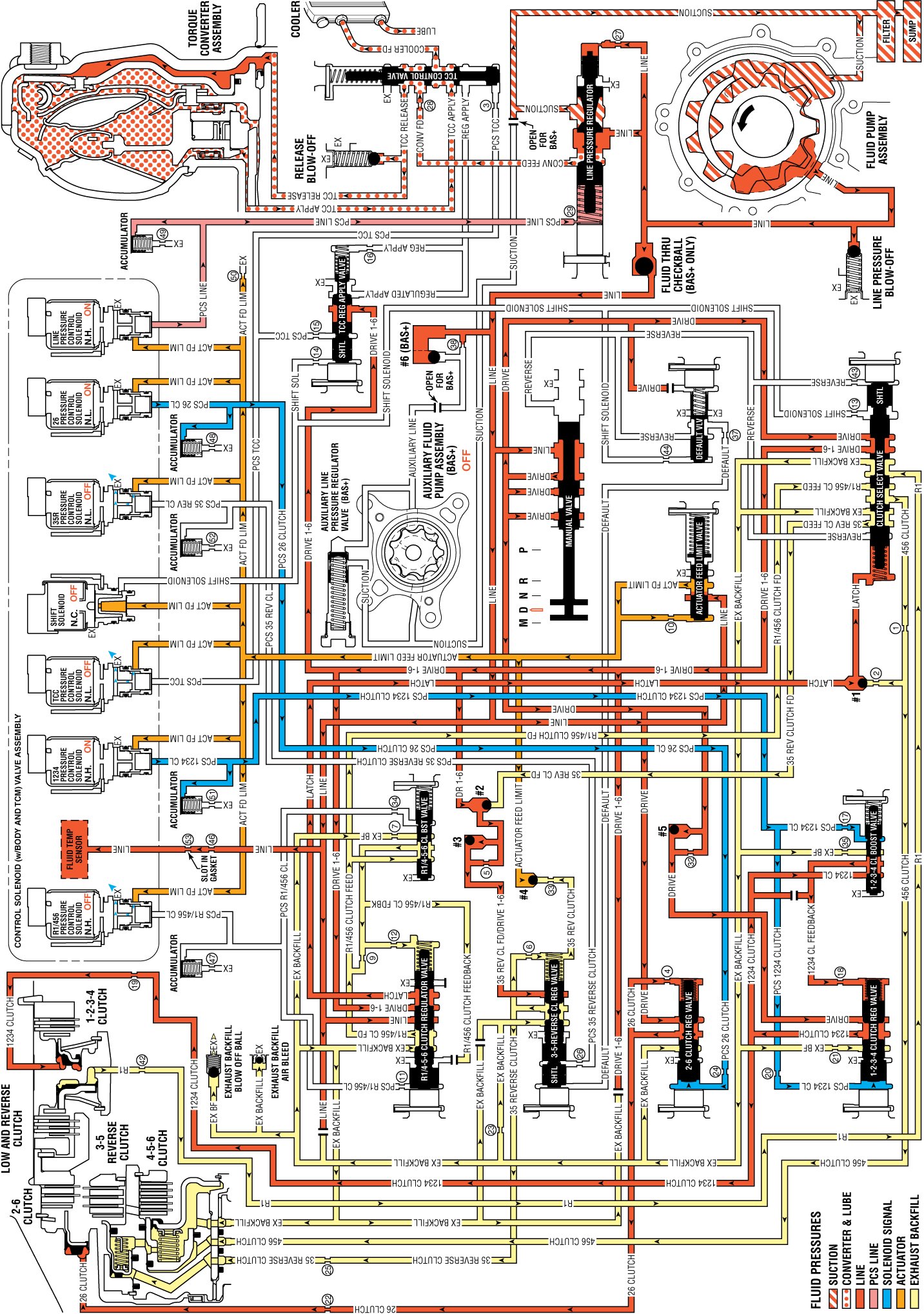

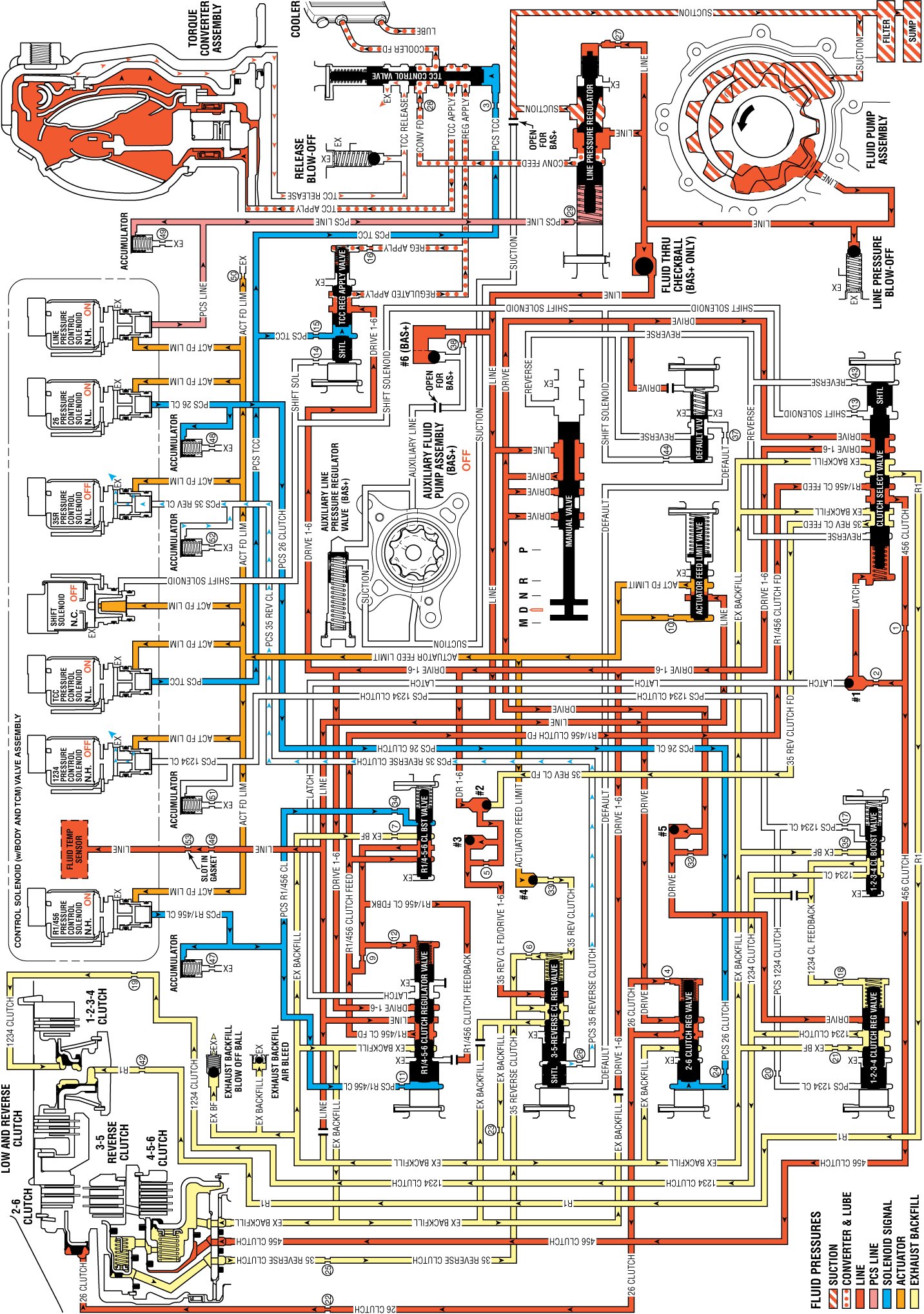

Reverse - Gen 2/Hybrid

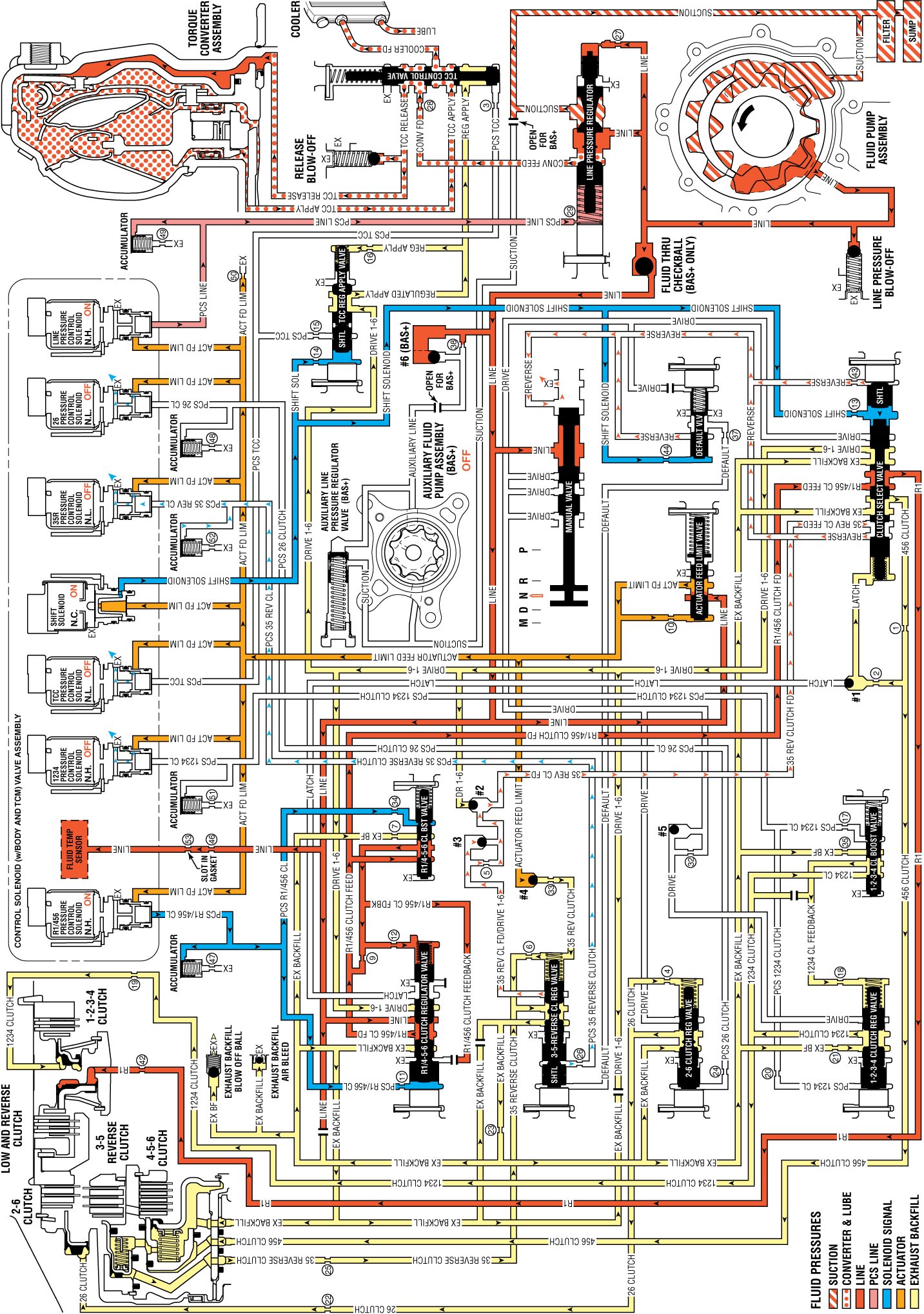

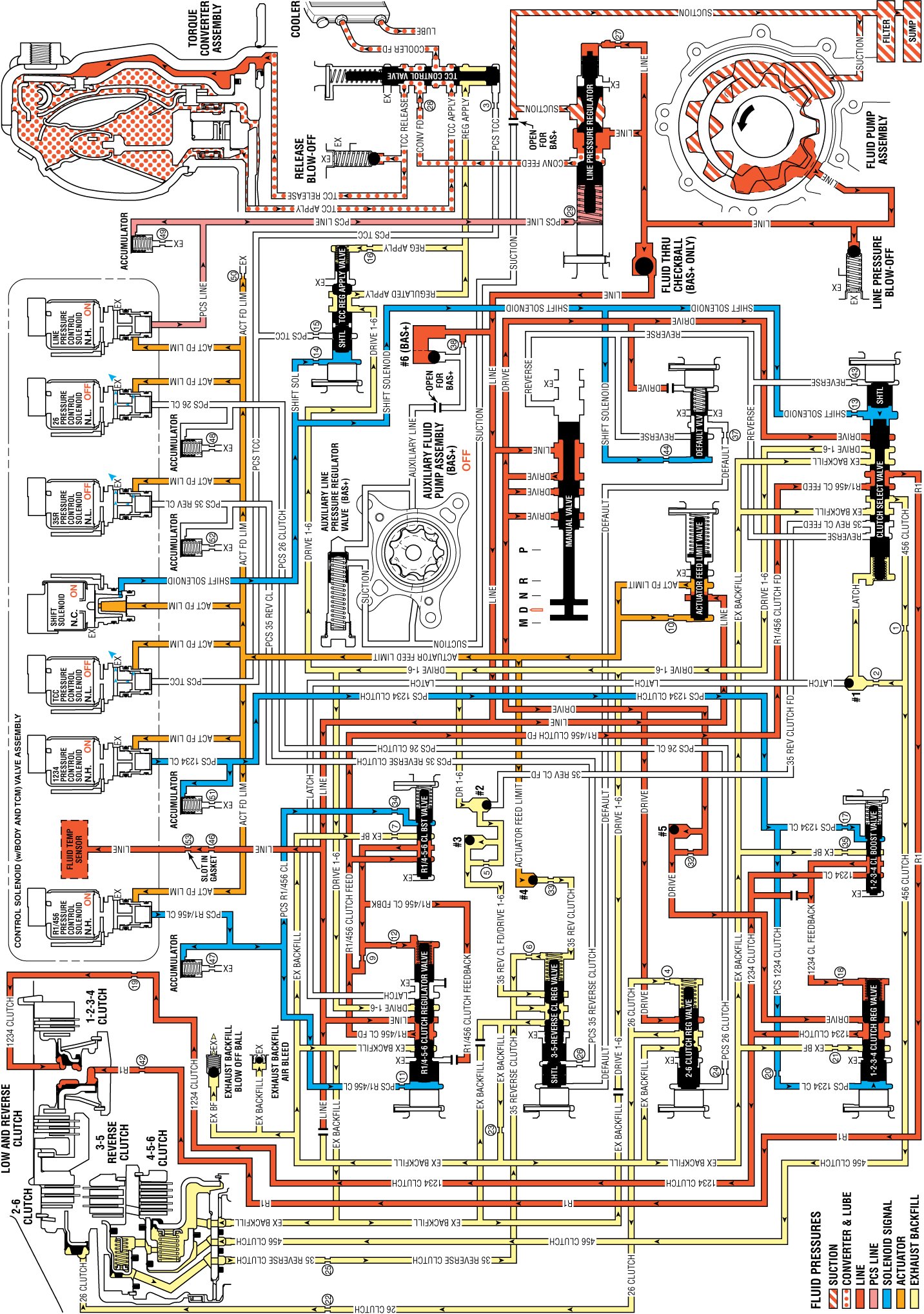

Neutral - Engine Running - Gen 2/Hybrid

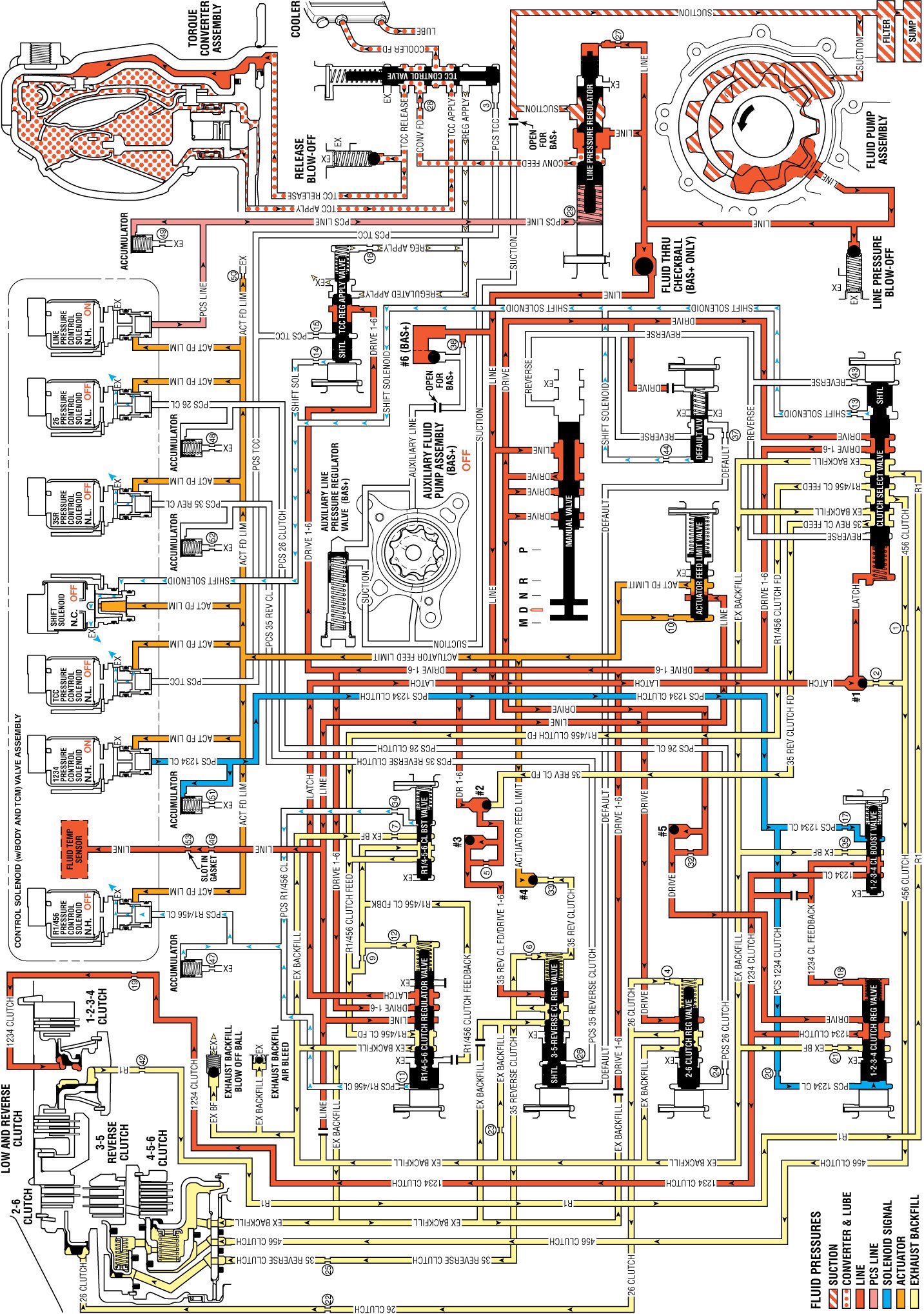

Drive Range, First Gear Engine Braking - Gen 2/Hybrid

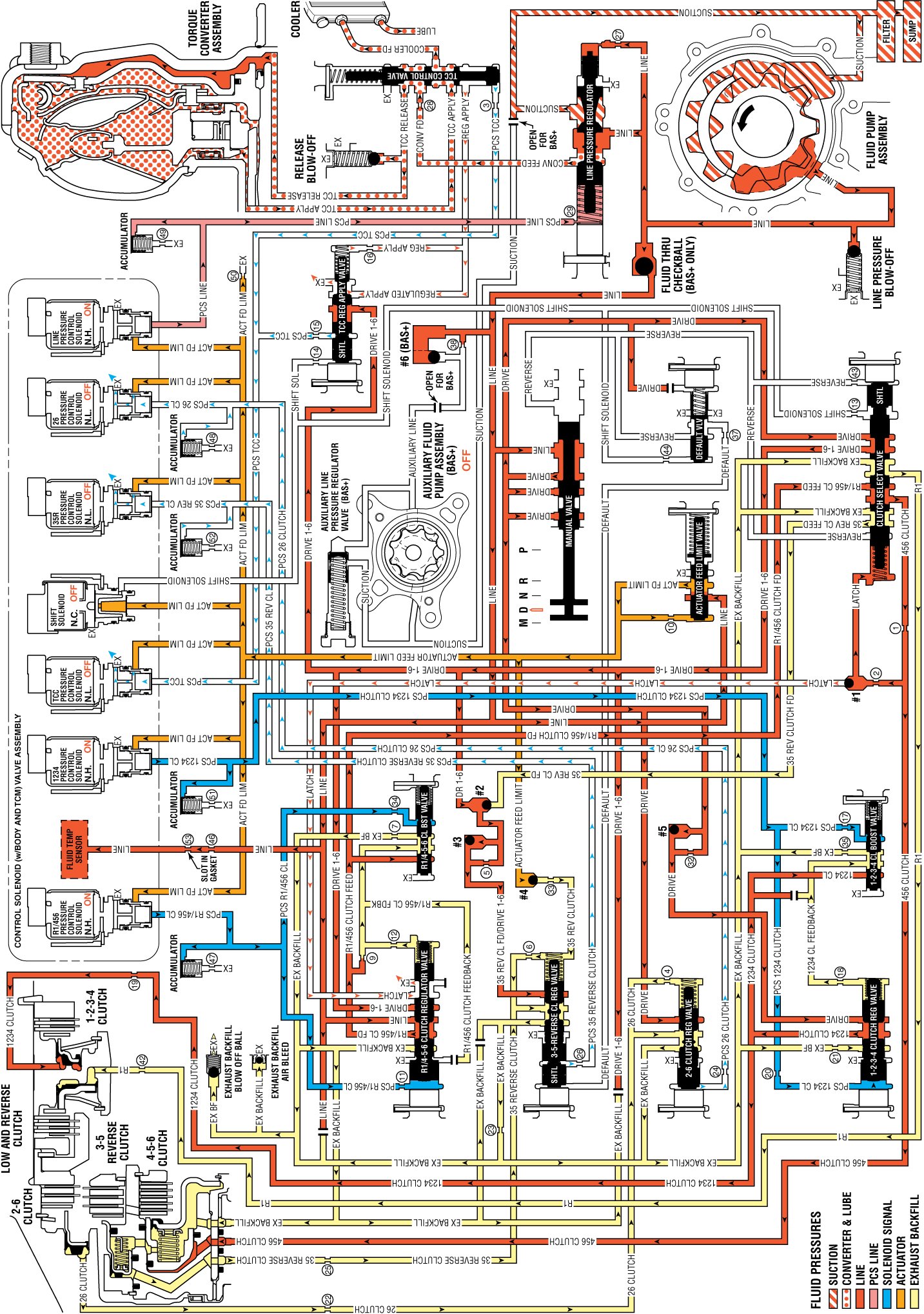

Drive Range, First Gear - Gen 2/Hybrid

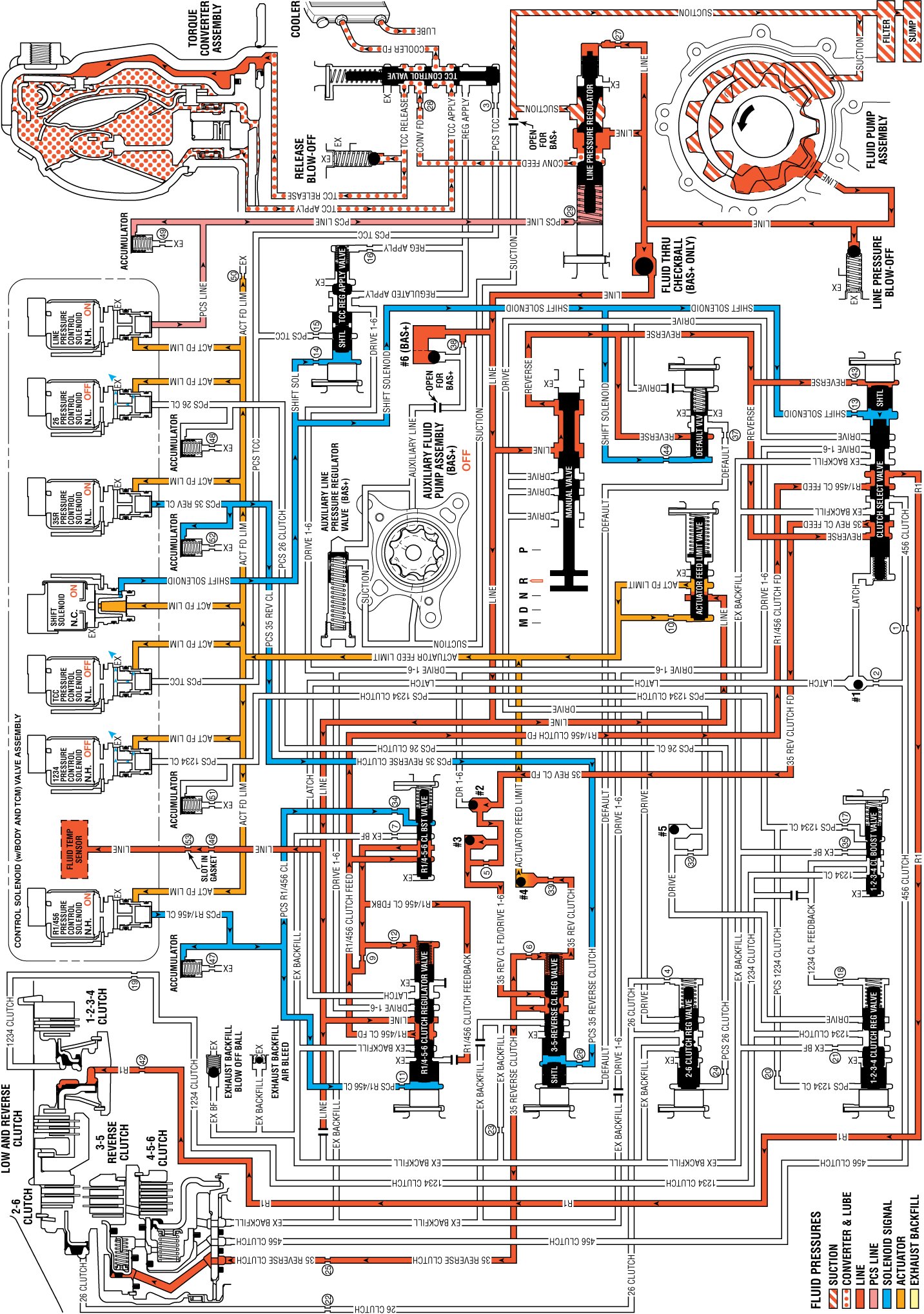

Drive Range, Second Gear - Gen 2/Hybrid

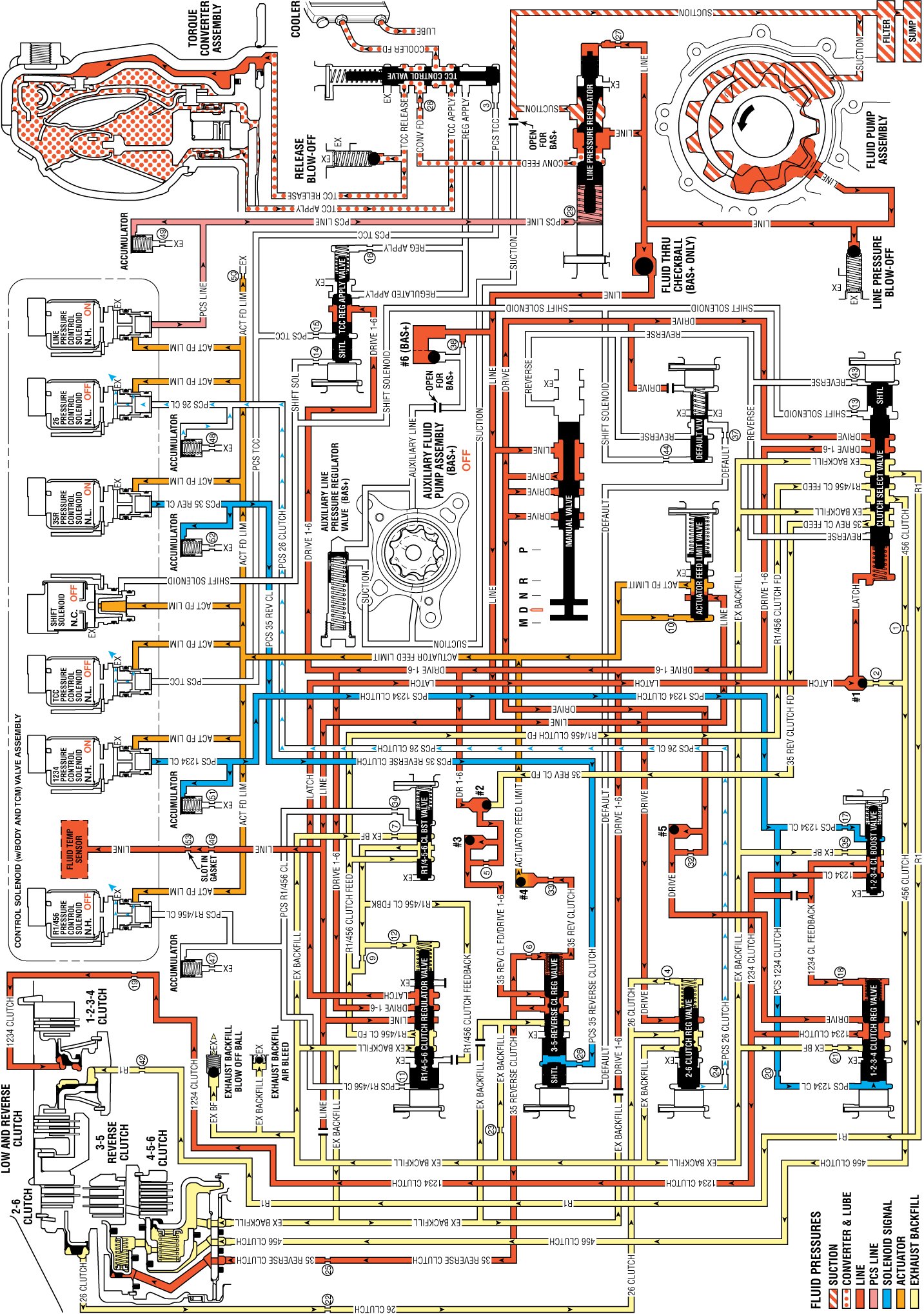

Drive Range, Third Gear - Gen 2/Hybrid

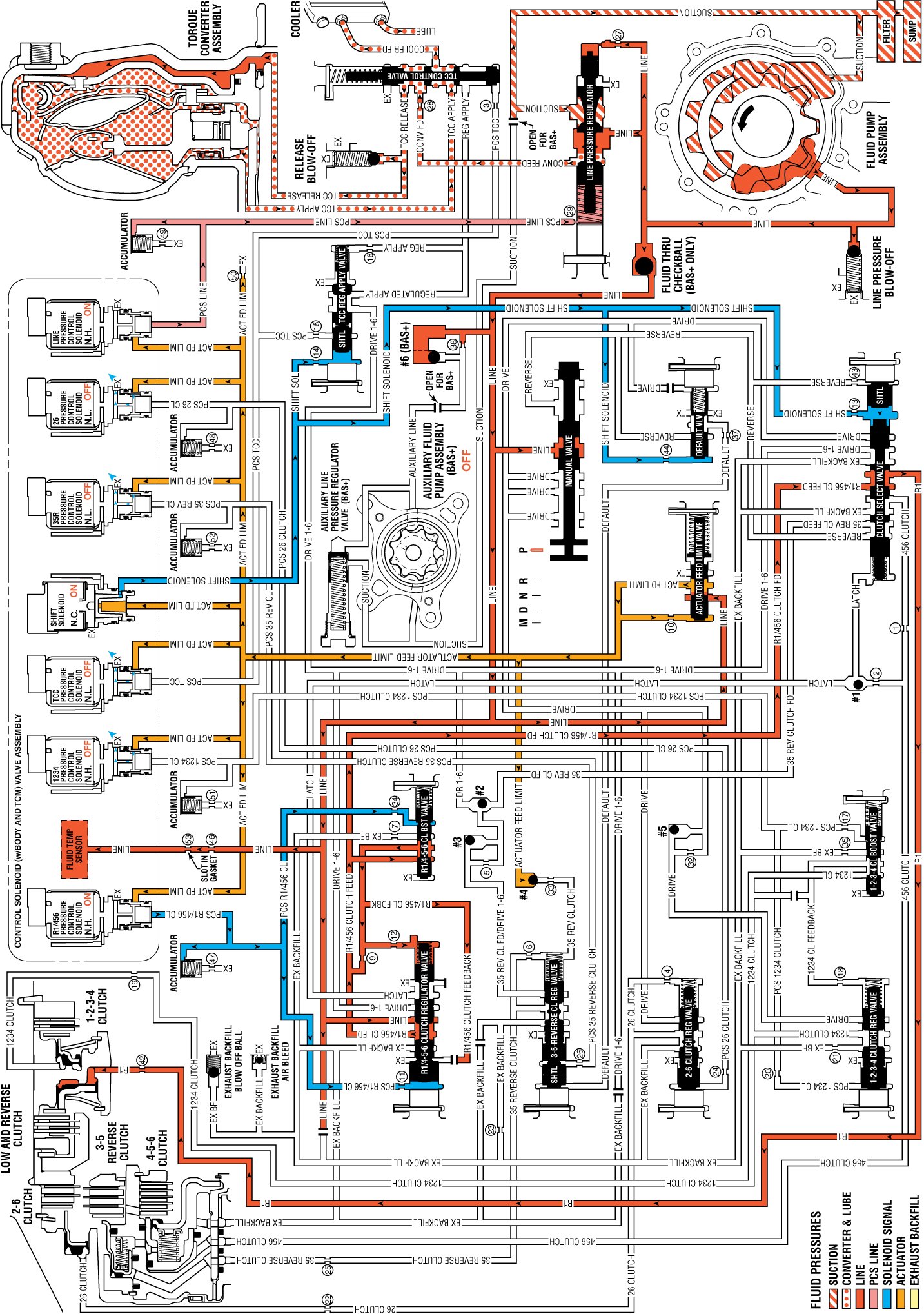

Drive Range, Fourth Gear - Gen 2/Hybrid









Drive Range, Fourth Gear Default - Gen 2/Hybrid









Drive Range, Fifth Gear - Gen 2/Hybrid









Drive Range, Sixth Gear - Gen 2/Hybrid
