G103, G106, and G110

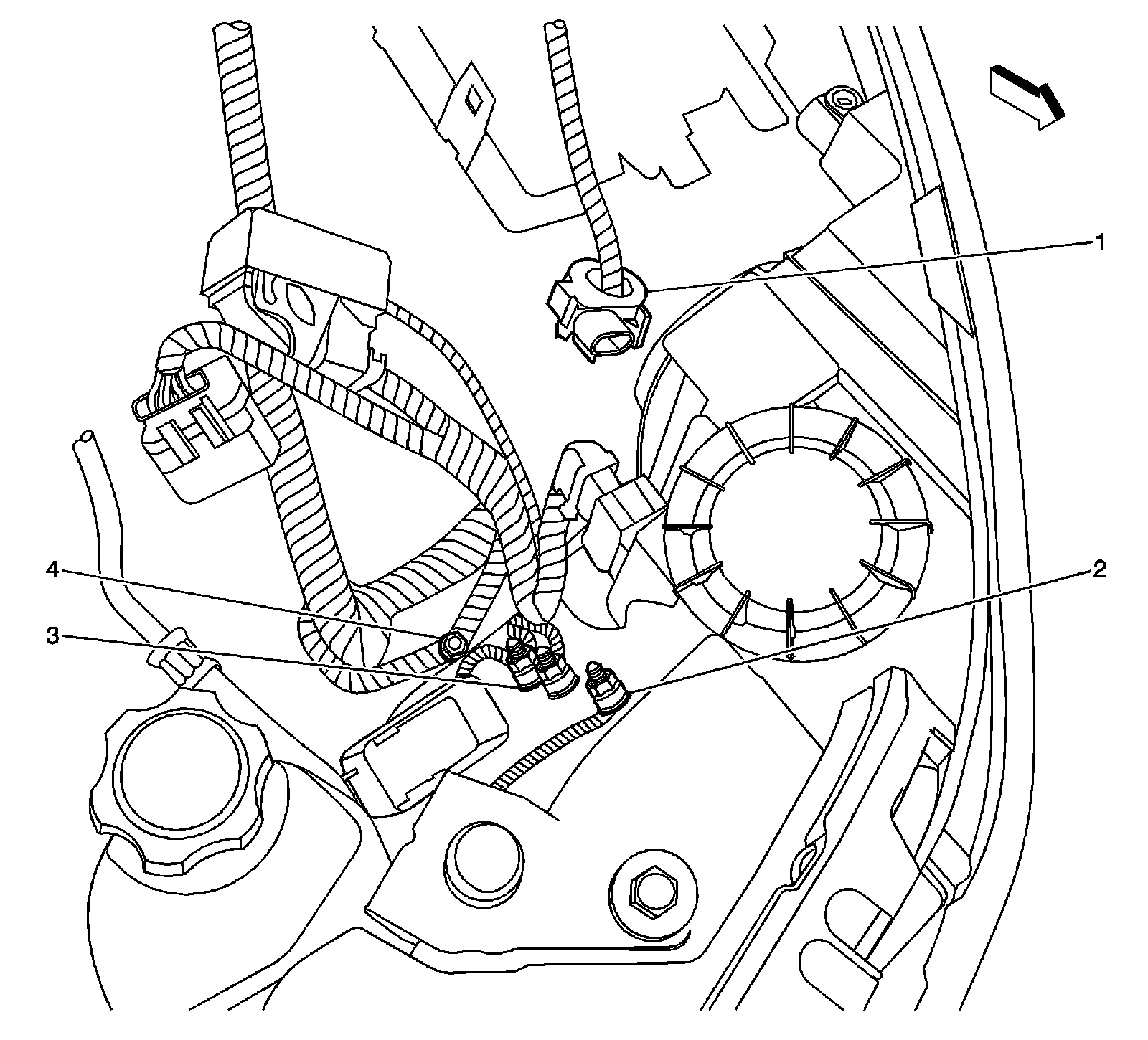

Ground Views

G103, G106, and G110





1 - B18 Battery Current Sensor

2 - G106

3 - G110

4 - G103
