Fuel Tank Pressure Sensor: Locations




Wheels/Vehicle Underbody Component Views

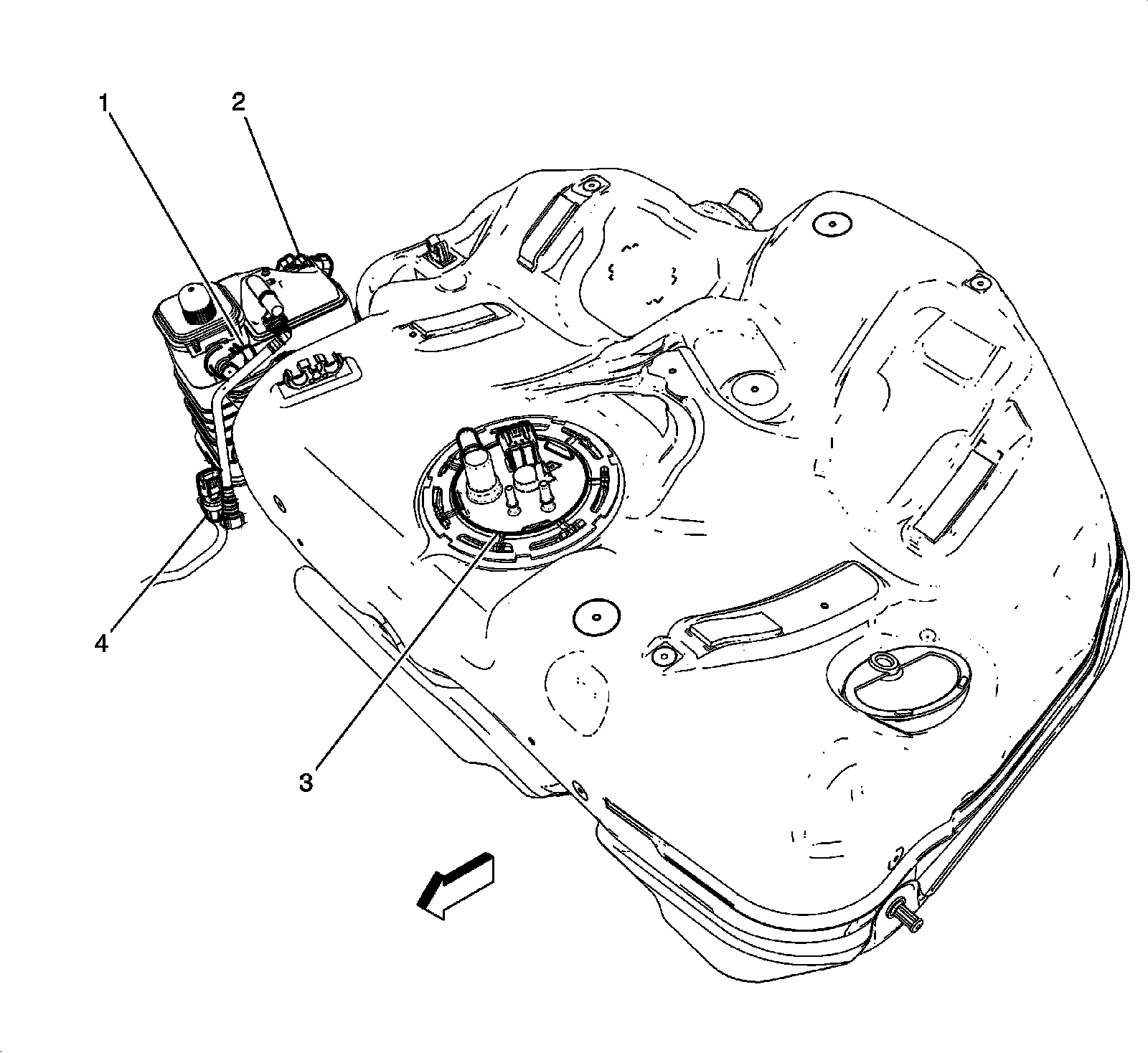

Fuel Tank Components





1 - Q13 Evaporative Emission Vent Solenoid Valve

2 - B150 Fuel Tank Pressure Sensor

3 - A7 Fuel Pump and Sender Assembly

4 - B47 Fuel Pressure Sensor
