Charge Air Cooler Outlet Pipe Replacement

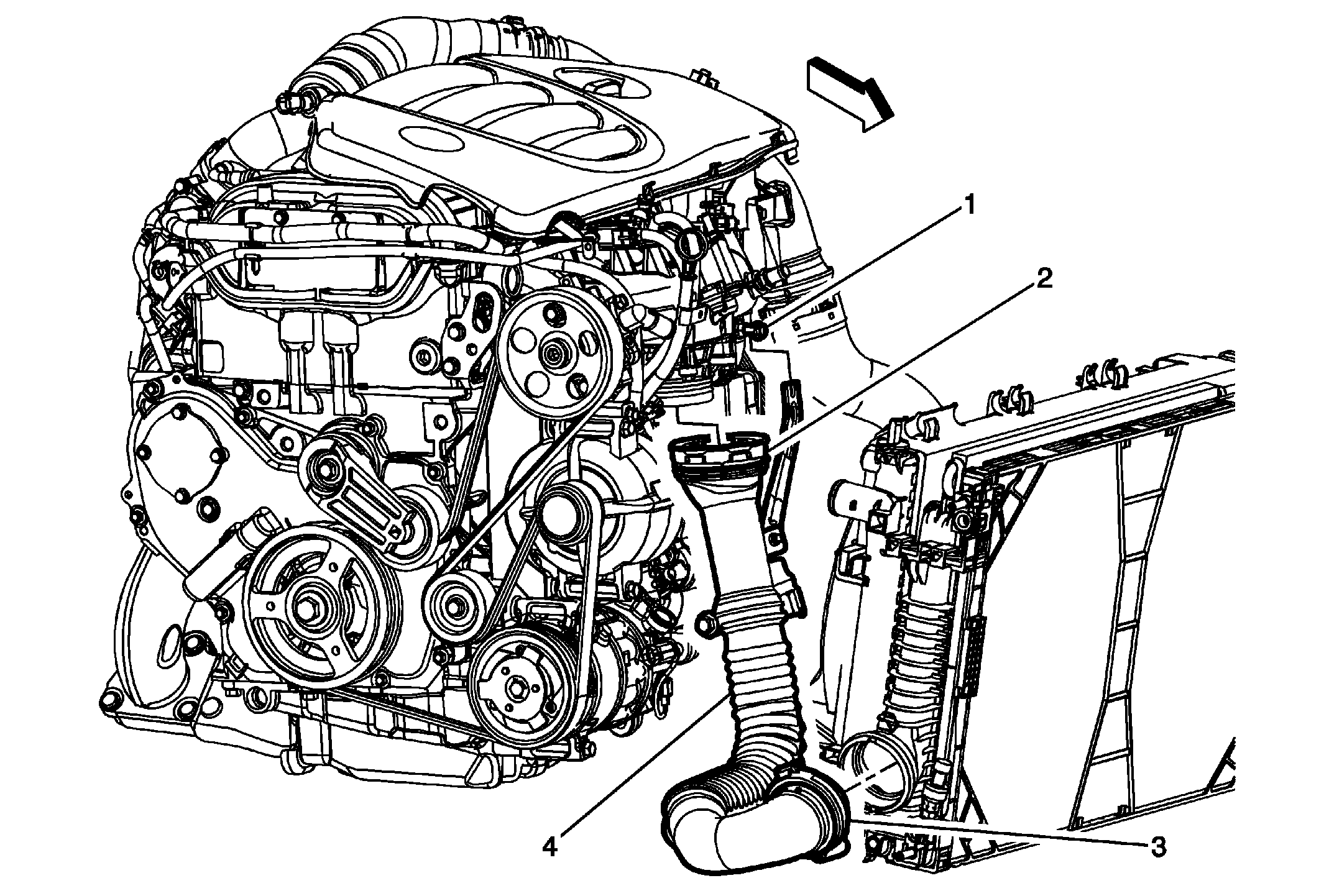

Fig 1: Charge Air Cooler Outlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Charge Air Cooler Outlet Pipe Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 2.7 N.m (24 lb in)
2	Charge Air Cooler Outlet Pipe Upper Clamp Procedure Rotate the upper clamp enough to disengage the charge air cooler hose from the throttle body.
3	Charge Air Cooler Outlet Pipe Lower Clamp
4	Charge Air Cooler Outlet Pipe Procedure Disconnect the intake air pressure and temperature sensor harness connector. Disconnect the vacuum hose from the charge air cooler outlet pipe. Transfer parts as necessary.
