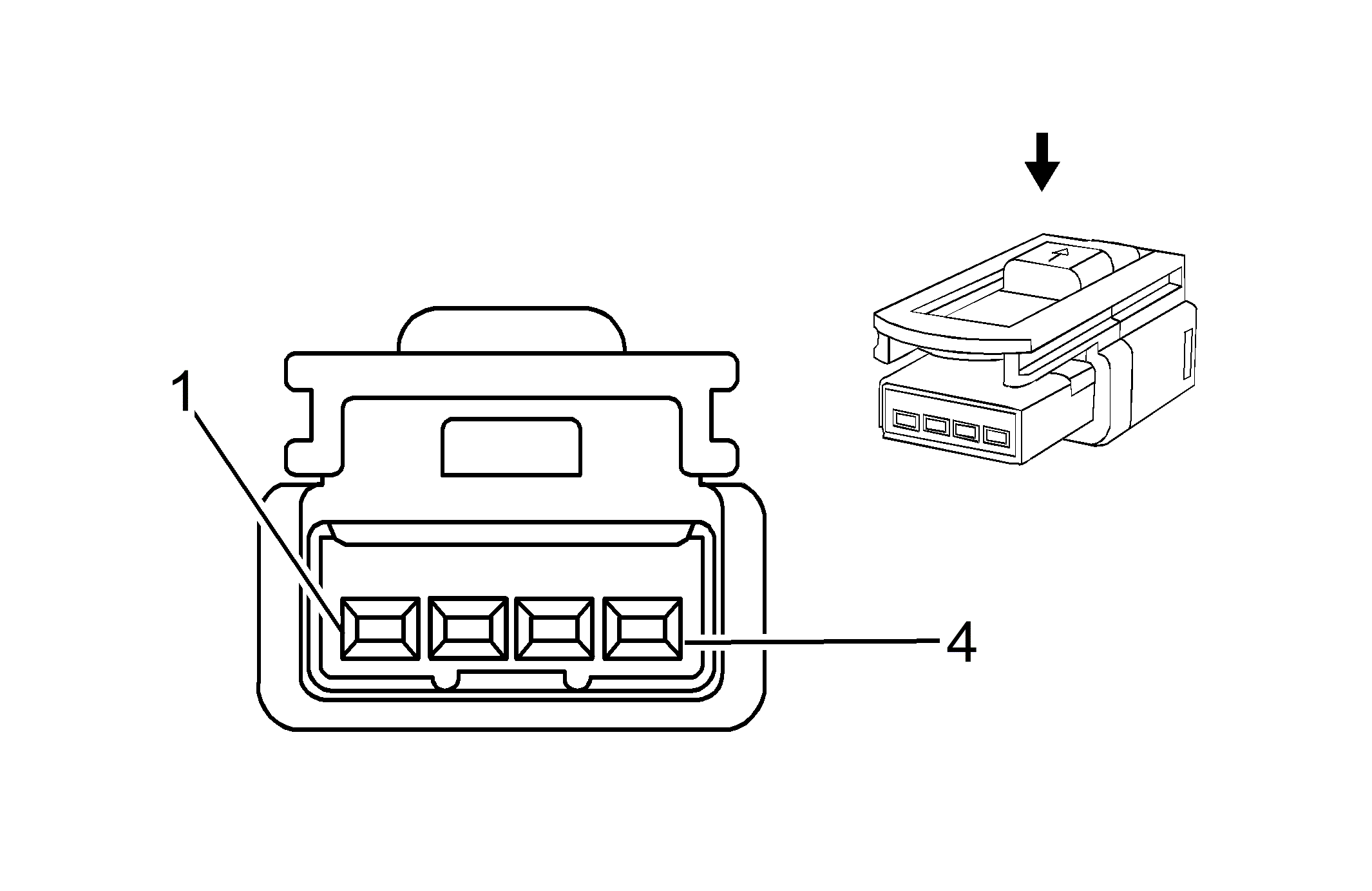

X92 Universal Serial Bus (USB) Connector
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available |
X92 Universal Serial Bus (USB) Connector
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.13 | RD | 3149 | USB Serial Data Supply Voltage | I | - |
| 2 | 0.08 | WH | 3147 | USB D (-) Serial Data | I | - |
| 3 | 0.08 | D-GN | 3146 | USB D (+) Serial Data | I | - |
| 4 | 0.13 | BK | 3148 | USB Serial Data Low Reference | I | - |
